Main

The Gulf Stream (GS) and associated mesoscale eddies enhance nutrient transport and biological productivity in the North Atlantic1, acting as ‘mini-engines of biogeochemical cycles’ in these otherwise low-productivity waters2. Within the planktonic community, dinitrogen (N2)-fixing cells (‘diazotrophs’) play a central role in marine productivity, as they provide a substantial amount (223 ± 30 Tg N yr−1) of reactive nitrogen globally3. Diazotrophs balance nitrogen budgets, particularly where the input of other nitrogen sources is limited, such as in the North Atlantic Gyre4. Although mesoscale eddies are recurrent features in the North Atlantic5, the resolution of most in situ sampling is too coarse, limiting our understanding of how they affect diazotroph community structure and related N2 fixation input.

The impact of mesoscale eddies on plankton communities is typically assessed by combining altimetry-derived currents and ocean colour observations6. However, remote sensing observations do not allow a study of the impacts of physical processes on functional changes within the planktonic community. For example, eddy rotation tends to isolate water masses in its core, which can result in either (1) trapped species adapting their activity to the local environmental conditions or (2) other species with better adaptive capabilities becoming dominant, which then alters microbial diversity locally7. Similarly, eddies have been shown to modulate diazotroph abundance through isolation and changes in the tilting of the isopycnals that lead to changes in resource availability8, temperature9, passive accumulation of buoyant cells10,11 and/or intensification or diminution of biological interactions such as grazing and viral lysis12,13,14. Anticyclonic eddies are considered hotspots for N2 fixation through their substantial depletion of other nitrogen sources10. In contrast, cyclonic eddies have been observed to feature fewer diazotrophs than the water masses of origin15. However, counterintuitively, the opposite has also been observed, potentially associated with variable nutrient inputs over the eddy’s life history10,16. Notably, diazotroph cell abundances do not necessarily equate to N2 fixing rates17. For example, not all diazotrophs fix N2 at the same efficiency, with a notable impact on the over- or underestimation of N2 fixation18. Therefore, combined diversity and N2 fixation measurements open a window into the mechanisms shaping diazotroph diversity and quantitative activity changes across mesoscale structures.

In this Article we investigate diazotroph diversity and activity at submesoscale resolution across the GS and two counterrotating GS eddies (Fig. 1). Then, we measure the functional and phylogenetic responses of diazotrophs to the contrasting environmental conditions encountered in our field experiment. Finally, we quantify the recurrence of GS-associated mesoscale eddies to scale the influence of eddy-associated N2 fixation activity on nitrogen inputs in the western North Atlantic.

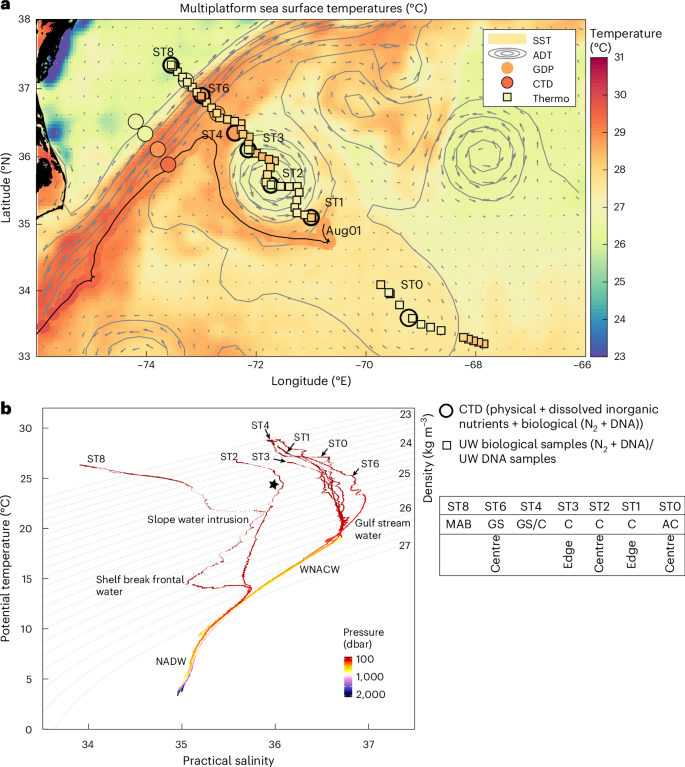

Fig. 1: GS eddies with trapped shelf water and mixed water masses in the periphery.
figure 1

a, Multiplatform sea surface temperature measurements during the FIGURE-CARING cruise (RV AE2215), with data from satellite sea surface temperature (SST), conductivity–temperature–depth (CTD) stations and underway (UW) samples. Stations are classified into anticyclonic eddy (AC), cyclonic eddy (C), GS and MAB and separated into the centre or edge of the structures. ADT, absolute dynamic topography. GDP, Global Drifter Program. b, θ−S diagram for ST0–ST8 colour-coded along pressure gradients. Water masses are indicated within the plot (NADW, North Atlantic Deep Water; WNACW, Western North Atlantic Central Water) and the black star indicates the entrained shelf water in the core of the cyclonic eddy.

Full size image

Results and discussion

GS eddies support N2 fixation in the North Atlantic

In July–August 2022, we performed high-spatial-resolution transects (DNA samples every ~10 km, N2 fixation measurements every ~30 km) on two counterrotating GS eddies. The highest absolute N2 fixation rates (up to 52.73 nmol N l–1 d–1; ST8) occurred west of the GS in the Mid-Atlantic Bight (MAB) at 35 m depth. However, N2 fixation remained notably high throughout the transect (Fig. 2a,b and Supplementary Table 1), with significantly higher rates than in previous studies in the North Atlantic Gyre (Welch two-sample t-test, P = 3.836 × 10–6, n1 = 22, n2 = 20; Supplementary Data 1). Rates in these ranges have only been observed at these latitudes in the MAB (up to 130 nmol N l–1 d–1)19,20. While N2 fixation mostly decreased with depth, we found consistently high rates (>20 nmol N l–1 d–1) at depth in the eastern edge of the cyclonic eddy (ST1) and locally even increasing with depth at the centre of the anticyclonic eddy (ST0). These patterns of N2 fixation suggest that the vertical transport of diazotrophs may have promoted high N2 fixation at depth21.

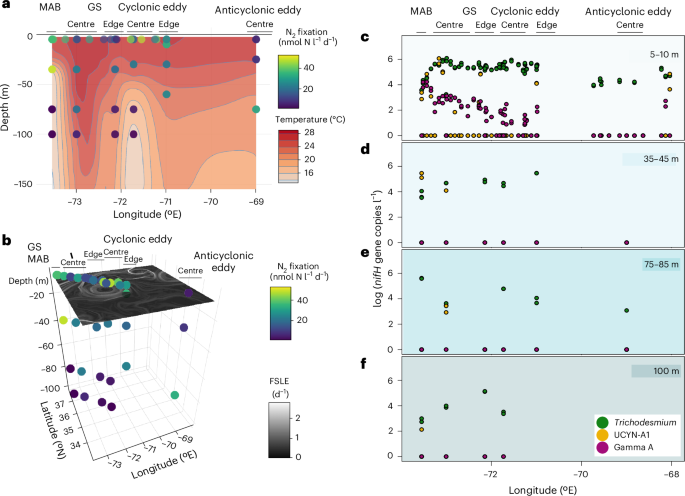

Fig. 2: N2 fixation and diazotroph abundance.
figure 2

a, N2 fixation rates in nanomoles of N per litre per day against interpolated water temperature as derived using CTD measurements. b, N2 fixation rates in nanomoles of N per litre per day with the satellite product of finite-size Lyapunov exponent (FSLE) plotted at the surface. c–f, Diazotroph abundance for different depth ranges (c, 5–10 m; d, 35–45 m; e, 75–85 m; f, 100 m) as measured by quantitative PCR (qPCR) targeting Trichodesmium, UCYN-A1 and Gamma A with cell counts normalized to a logarithmic scale.

Full size image

The relatively high N2 fixation measurements during our survey can be linked to (1) trapping of shelf water enriched with diazotrophs, known for high N2 fixation activity19 and accumulation in convergence zones12,22, and (2) upwelling and mixing providing excess phosphate and enhancing N2 fixation23,24 (Supplementary Fig. 1). Higher water mass similarities between the MAB and the cyclonic eddy than to the GS or North Atlantic Gyre support the importance of the first mechanism (Fig. 1b). Trapping highly active diazotrophs in the core of the cyclonic eddy in combination with a positive P* supported N2 fixation locally. Yet, no excess phosphate was observed at the edges of the cyclonic eddy with elevated N2 fixation across depth. Therefore, the transport of diazotrophs appears to be more important in driving N2 fixation in cyclonic eddies than the presence of other sources of nitrogen12,25. This shows the overall importance of trapping eddies in supporting N2 fixation in one of the world’s most mesoscale-active regions, raising questions about their impact on other western boundary currents with similar observations26,27.

Cyclonic eddy origin is linked to high N2 fixation

To understand how the water mass and associated transported diazotroph communities within the core of the cyclonic eddy were shaped by its source water mass(es), we focused on the origin and maturity of the cyclonic eddy sampled across multiple stations and depths. We tracked its origin and identified its characteristics from the global Mesoscale Eddy Trajectory Atlas (META3.0exp NRT, hereafter NRT Eddy Atlas)28 (Supplementary Video 1) and through a multiplatform approach (Fig. 1 and Supplementary Figs. 2–5). The trajectories of drifters and Argo floats indicated that the cyclonic eddy had a high trapping capacity (Supplementary Fig. 2) and was horizontally intense at the edges (acoustic Doppler current profiler (ADCP)-derived current velocities of >1 m s−1 down to 500 m; Supplementary Fig. 6). At the time of the cruise, the eddy had reached its maturity phase (157–166 d, for a total lifetime of 278 d) with an average effective radius of 84 ± 3 km and a tangential speed of 1.49 ± 0.02 m s−1 (mean ± s.d., n = 10), which aligns with previous observations of a lifetime between 6 and 12 months29 and implies a substantial amount of time for microbial communities to adapt and thrive.

Backtracking the origin of the cyclonic eddy, we found that it originated west of the GS in February 2022, trapping cold shelf water originating from the Labrador Current, then forming a cold ring and travelling first eastward of the GS until the end of April before turning back westward, eventually merging with another eddy (here considered as the end of the eddy’s life) (Supplementary Fig. 7 and Supplementary Video 1). The MAB above the shelf is known for high N2 fixation activity20,30,31,32. Shelf water trapped in eddies can extend the spatial range of these highly active diazotrophic communities. Despite the strong retention of the cyclonic eddy in its centre, the periphery at the surface can be subject to increased mixing. In this way, eddies contribute a large fraction of nutrient input into the North Atlantic Ocean33,34, which can support up to 20–30% of the primary production around Bermuda35. GS eddies have been linked to increased phosphorus input that can directly fuel N2 fixation32. Therefore, both mechanisms can be at play in our study, that is, eddy-driven seeding of diazotrophic organisms into surrounding waters and the dominance of better-adapted diazotrophs, particularly in the well-isolated core of the eddy.

Physically coupled diazotroph community dynamics

The importance of physically modulated diazotroph distribution was supported by the dominance and asymmetric distribution of Trichodesmium nifH gene copy abundance (Fig. 2c–f). Trichodesmium have been recurrently observed in eddies36, as they disperse and accumulate in converging water masses due to their buoyancy37. Additionally, we consistently found numerous nifH gene copies of the non-cyanobacterial diazotroph Gamma A across the GS and the western edge of the cyclonic eddy. Although Gamma A has been previously observed in highly productive eddies38,39, its abundance decreased substantially towards the eddy’s centre and its eastern edge in our measurements. Gamma A is comparable to a recently reported symbiont of a pennate diatom, with as yet little representation in the GS region40. The impact of fine scales on this association awaits exploration. UCYN-A1 nifH gene copies were consistently abundant across the GS with high copy numbers down to ~100 m (ST6), but vanished at the interface of the GS and the cyclonic eddy, except above the deep chlorophyll maximum at the eastern edge of the cyclonic eddy. Even though high nitrate concentrations suggest more favourable conditions for UCYN-A1 than for Trichodesmium within the cyclonic eddy41, the observed abundance gradient shows that physical processes regulate diazotroph abundances through fast dilution, creation of suitable environments through, for example, elevated iron concentrations42, and/or competitive exclusion of GS-associated diazotrophs.

We used 16S rRNA gene sequencing as a genetic fingerprint to relate the diazotroph community to the extent of microbial community similarity between oceanographic structures43,44. All physically distinct structures also had unique genetic fingerprints (permutational analysis of variance, permutations = 999, R2 = 0.22, P < 0.001; n = 41; Supplementary Fig. 8). We could not find a higher similarity between the centre of the cyclonic eddy (ST2) and the MAB (ST8) when compared with other structures. This indicates that the time between the birth of the eddy and the time of sampling (~5 months after birth) was long enough for an eddy-specific community to adapt and thrive. We found a similar genetic fingerprint between the eastern edge of the cyclonic eddy and the centre of the anticyclonic eddy at 60–75 m depth, suggesting community connectivity between the eddies, which was also visible in the diazotrophic community using nifH gene sequencing (Supplementary Figs. 9 and 10). Similar connectivity between two counterrotating eddies has been observed in the Mediterranean Sea before45. This shows that the diazotroph community can be highly dynamic over time, which needs further investigation, particularly regarding community connectivity at the eddy–eddy interface and between eddy edges and ambient waters.

Quantifying nitrogen input by N2 fixation within eddies

Current N2 fixation measurements in the temperate western North Atlantic (defined here by the GS and GS eddy-influenced region between 30.35 and 39.00° N and 59.14 and 78.58° W; Supplementary Data 1) are primarily concentrated in the MAB, where rates are significantly higher (mean = 32.54 nmol N l−1 d−1, n = 211) than in the North Atlantic Gyre (mean = 7.85 nmol N l−1 d−1, n = 57; Welch t-test P < 0.001). However, GS eddies could substantially extend the distribution of the productive organisms from the MAB into the North Atlantic Gyre. To provide a first-order estimate of eddy-borne nitrogen input by diazotrophs, we identified mesoscale eddies with similar water masses of origin using the NRT Eddy Atlas (Supplementary Data 2 and 3). Start polygons were selected according to underlying water mass similarities and seasons with the surveyed eddies (Fig. 3a,b). Extrapolating the impact of eddies that occurred between June and September resulted in an effect range of 7.77 × 1011 km2 for cyclonic eddies and 1.22 × 1012 km2 for anticyclonic eddies, where cyclonic eddies covered 5.5 × 10−6% and anticyclonic eddies 2.61 × 10−6% within their individual effect ranges (Fig. 3c,e). Integrated N2 fixation over 100 m depth within cyclonic eddies was 17 times higher than in ambient waters (Supplementary Table 2), contributing 0.058 ± 0.02% to the total N2 fixation in the region when normalized to their effect range and assuming constant N2 fixation across the eddies’ lifetime, or 0.045% when only considering the mature phase of eddies. N2 fixation within anticyclonic eddies contributed another 0.014 ± 0.004% (0.011% in the eddies’ mature phase), with nine times higher rates in anticyclonic eddies than in ambient waters. In total, N2 fixation within eddies resulted in a total input of 0.03403 mol N m−2 yr−1, confirming previous quantifications based on phosphate input from Ekman advection into the North Atlantic Gyre23. However, we challenge the underlying mechanisms as we find important contributions from both cyclonic and anticyclonic eddies. Overall, this input could cover ~7.5% of the total nitrate demand in the North Atlantic Gyre46, highlighting the role of mesoscale eddies as important vehicles for diazotrophic transport and activity in the North Atlantic Gyre.

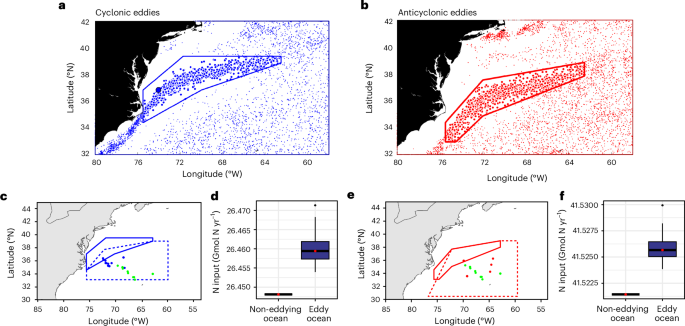

Fig. 3: Contribution of cyclonic and anticyclonic eddies to total N2 fixation in the western North Atlantic.
figure 3

a, Cyclonic eddies detected using the NRT Eddy Atlas. Each dot corresponds to an eddy at its origin. Eddies inside the polygon have water masses of origin similar to that of the cyclonic eddy sampled during the FIGURE cruise (large blue dot), that is, west of the GS. b, Anticyclonic eddies detected using the Eddy Atlas. Eddies inside the polygon probably match the water mass of origin of the anticyclonic eddy sampled during the FIGURE cruise. c, In situ samples of N2 fixation within cyclonic eddies (blue dots) and N2 fixation outside mesoscale eddies (green dots); the dotted polygon represents the effect range of cyclonic eddies. d, log(N input) from N2 fixation measurements inside cyclonic eddies and surrounding ocean (eddy ocean) and N2 fixation assuming no mesoscale eddies inside the polygon (non-eddying ocean). e, In situ samples of N2 fixation within anticyclonic eddies (red dots) and N2 fixation outside mesoscale eddies (green dots); the dotted polygon represents the effect range of anticyclonic eddies. f, log(N input) from N2 fixation measurements inside anticyclonic eddies and surrounding ocean (eddy ocean) and N2 fixation assuming no mesoscale eddies inside the polygon (non-eddying ocean). The box plots in d and f show distributions of each group of data points, including 58 data points from yearly averages, with data range indicated by upper and lower whiskers (maximum 1.5 × interquartile range, and outliers indicated by back dots) and 25% (box lower bound), median (box centre line and red dot) and 75% (box upper bound) percentiles. Basemap derived from https://www.naturalearthdata.com.

Full size image

We further attempted to integrate our observed differences between measurements at the edges and the centre of the cyclonic eddy in the calculations above. We found that the eddy edge accounts for ~92% of the overall N2 fixation, but only covers ~83% of the eddy volume (Fig. 4). Therefore, N2 fixation inputs from cyclonic eddies could be 1.6 times higher than if measurements were made in and extrapolated from the eddy core. Conversely, measurements could be 1.1 times overestimated when extrapolated from the eddy edge. Our results highlight the importance of the eddy edge for N2 fixation within mesoscale eddies, calling for more submesoscale measurements to determine an ‘edge factor’ when extrapolating N2 fixation measurements from mesoscale eddies. Furthermore, as eddy edges are in direct contact with the ambient waters, they can fuel phytoplankton growth, extending the spatial range of eddy-influenced zones47.

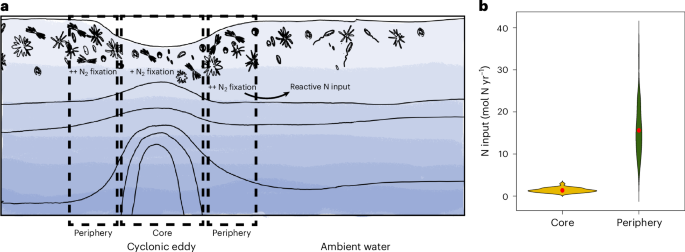

Fig. 4: Eddy edges play an important role in overall N2 fixation in mesoscale cyclonic eddies.
figure 4

a, Conceptual representation of the strength of N2 fixation within a cyclonic eddy and its interaction with the ambient water. N2 fixation is highest at the edge of the cyclonic eddy, which is also where reactive nitrogen can be seeded in the ambient water. The separation between eddy core and edge is based on Okubo–Weiss parameters (OW = 0). b, Violin plot showing the distribution of N input from N2 fixation between the core and edge of cyclonic eddies (n = 58). Width of the density curves correspond to frequency of nitrogen input measurements; median indicated by red dot.

Full size image

As eddies become more frequent with climate change48,49 and the GS is moving shoreward50, we estimated the sum of available similar summer anticyclonic and cyclonic eddies per decade from the NRT Eddy Atlas, and found a positive trend for the occurrence of anticyclonic eddies (+0.16 ± 0.07 eddies yr−1) while cyclonic eddies remained relatively stable (–0.03 ± 0.05 eddies yr−1). The positive trend of the occurrence of anticyclonic eddies could mean 2.3–3.2% more N2 fixation input from anticyclonic eddies per decade (calculated between 2011 and 2021). This increased input could potentially be an important balancing mechanism for increased desertification of the North Atlantic Gyre and associated increased nitrate demand in the future51.

Conclusions

We show that cyclonic eddies are as important as anticyclonic eddies in supporting N2 fixation in the western North Atlantic Gyre. Furthermore, we identified the edges of cyclonic eddies as N2 fixation hotspots, with potential diazotroph community connectivity pathways into ambient waters. The recurrence of mesoscale eddies that transport highly active diazotroph communities from the MAB into the North Atlantic Gyre creates approximately 17 times higher N2 fixation rates in cyclonic eddies and 9 times higher N2 fixation rates in anticyclonic eddies than in the ambient water, contributing 0.06% to the total N2 fixation when eddies are considered coherent structures. We speculate that by resolving these inputs at the submesoscale this contribution could be even higher. As the activity of eddies may evolve with global warming48,49, their role in fertilizing the North Atlantic Gyre urgently needs to be integrated into global nitrogen budgets.

Methods

Sampling campaign

Data and samples were collected during the Eurofleets+ FIGURE-CARING research campaign (https://doi.org/10.17600/18002940), performing a transect across an anticyclonic eddy, a cyclonic eddy and the GS (Fig. 1) between 21 and 30 July 2022 on board RV Atlantic Explorer (cruise AE2215).

Physical oceanography

An adjusted cruise track led by real-time information from the software package SPASSO (https://spasso.mio.osupytheas.fr)52,53 allowed us to follow the targeted eddies and the respective boundary region of the GS. Observations were made between 12 May and 12 December 2022 to follow the evolution of the eddies. At each station, conductivity, temperature and depth profiles were obtained using an SBE9 CTD (Sea-Bird Electronics) and an SBE11+ deck unit. The CTD carried a variety of additional sensors including a dissolved oxygen sensor, transmissometer, fluorometer, photosynthetic active radiation sensor, altimeter, digital reversing thermometer and bottom-contact switch. In conjunction with a modified SBE Rosette frame, the CTD system utilized a SBE32 full-size carousel water sampler, equipped with 24 Niskin-type 12 l bottles attached to the frame. We examined temperature–salinity profiles and interpolated temperature, salinity, oxygen and fluorescence longitudinally across our transect using a modification54 of the ggplot2 PlotSvalbard extension (https://github.com/MikkoVihtakari/PlotSvalbard) in R (v.4.2.2). Additionally, we characterized the sea surface temperature of the cyclonic eddy and ambient waters using the OSTIA L4 product from the C3S project, produced using the OSTIA reanalysis system v3.155 and adjacent Argo floats (https://dataselection.euro-argo.eu/). Satellite sea surface height was derived from AVISO (https://www.aviso.altimetry.fr/en/data/products/sea-surface-height-products.html). Finally, we also took into account pathways of adjacent drifters, which are from the Global Drifter Program (https://www.aoml.noaa.gov/phod/gdp/index.php).

Dissolved inorganic nutrients

Discrete water samples (30 ml plastic flasks) were collected from the Niskin bottles for inorganic nutrients (nitrate, phosphate and silicate). Samples were pasteurized while on board and analysed at IRD/IMAGO (Ifremer) with an AAIII Seal-Analytical auto-analyser, following the protocol established by IMAGO (certified ISO 9001:2015)56. The precision for nitrate, phosphate and silicate was evaluated as 0.027, 0.004 and 0.035 μmol kg–1, respectively. We calculated P* as an estimate for excess phosphate according to the Redfield ratio57.

Fine-scale structure identification

The eddies and the GS were localized before and during the cruise using SPASSO’s plotting and diagnostics (geostrophic currents, sea surface temperature, chlorophyll, Okubo–Weiss and FSLE58). Each sampling site is qualitatively classified mainly using ADCP measurements, completed by surface temperature and salinity. The direction and intensity of the ADCP currents are used to define the rotational direction of the eddies. Crossing the eddies from the edges to the core, the maximal tangential current intensity showed a linear increase at the eddy’s edges and a linear decrease towards the eddy core. The anticyclonic eddy shows a low-temperature and high-salinity core (ST0). The cyclonic eddy shows a low-temperature and low-salinity core (ST2). The GS is identified with a very high current intensity, as well as high temperature and salinity (ST6). ST8 in the MAB shows a low current intensity, as well as low temperature and salinity.

Identification of eddy origin

The mesoscale eddy activity was studied on the basis of META3.0exp NRT. This atlas covers the period from 1 January 2018 to the present, and was produced by SSALTO/DUACS and distributed by AVISO+ (https://www.aviso.altimetry.fr/) with support from CNES and in collaboration with IMEDEA. Further details of the eddy tracking algorithm can be found in ref. 59.

The NRT Eddy Atlas enabled the backtracking of the cyclonic eddy surveyed during the cruise; however, the origin of the anticyclonic eddy is unclear and it is absent from the NRT Eddy Atlas. We can use the NRT Eddy Atlas to investigate the historical database and geometric properties of eddies with an origin associated with the surroundings of the GS on the basis of META3.1exp DT. This atlas covers the period from 1 January 1993 to 7 March 2020. It was produced by SSALTO/DUACS and distributed by AVISO+ (https://aviso.altimetry.fr) with support from CNES, in collaboration with IMEDEA (https://doi.org/10.24400/527896/a01-2021.001 for the META3.1exp DT allsat version).

Identification of similar eddies in the study region

First, we defined an exact grid of our study region. We set the study region on the basis of water masses of origin for cyclonic eddies, being limited in the south down to Cape Hatteras, which is roughly the extent of the southward flowing Labrador Current. In the north, we used the turn and, therefore, changes in the characteristics of the GS as a boundary. We then identified all eddies within this grid.

The effect ranges east of the GS of cyclonic and anticyclonic eddies were calculated using the maximum latitudinal and longitudinal endpoints of eddies derived from the NRT Eddy Atlas as the northern, southern and eastern boundaries and the GS (as above) as the western boundary.

To derive eddies that only occurred during the summer season, we removed eddies that disappeared before June and originated after September from our analysis, resulting in 313 cyclonic eddies and 422 anticyclonic eddies between 1993 and 2022 (average 11 ± 3 cyclonic eddies yr–1 and 15 ± 2 anticyclonic eddies yr–1). In this work we used the shipboard ADCP vertical profiles collected during the cruise and the altimeter-derived propagation speed of the eddies to compute their nonlinearity ratio. Accounting for rotational speeds well above 20 cm s–1 and 40 cm s–1 down to 700 m depth for the anticyclonic and cyclonic eddies (Supplementary Fig. 11), and mean propagation speeds of about 4.2 cm s–1 and 6.6 cm s–1 (Supplementary Data 2 and 3), respectively, their nonlinearity ratios indicate that these eddies have abilities to transport ocean properties at least down to 700 m while propagating (Supplementary Fig. 12). As a conservative approach, we used 100 m depth to calculate the eddy volume, which also matches our N2 fixation sampling depth. We calculated the regression of eddies per year to derive a trend of the frequency of eddies per year. The s.d. from the linear regression was calculated on the basis of sample residuals.

Differentiation between eddy core and periphery

We used the distance between the sampled cyclonic eddy core and the distance to the point where the Okubo–Weiss parameter is equal to 0 to identify the transition zone between the eddy core and edge. We identified the radius of the eddy core using the distm() function of the geosphere package (v.1.5.18) in R. This resulted in a radius of 36.7 km out of 87.9 km total radius (Supplementary Fig. 12).

N2 fixation rate measurements

At each CTD station, we took triplicate water samples to measure N2 fixation from three depths (ST0) or four depths (ST1, ST2, ST3, ST6 and ST8). All incubation bottles (2.25 l and 4.25 l) were rinsed before sampling with 10% HCl, deionized water and sampling water. Samples were spiked with 98% 15N2 gas (Eurisotop, lot number 29/062001) and incubated in shaded deck incubators for 24 h. We used the dissolution method60. In brief, we added a 2 ml gas bottle to 2.25 l bottles and 4 ml to 4.25 l bottles; 2.25 l bottles were stirred on a magnetic plate for 4 min and 4.25 l bottles were shaken by hand for 4 min. After bubble dissolution, bottles were briefly opened to remove the magnetic stirrer and the remaining bubble to avoid further equilibration between the gas and aqueous phase. After incubation, for each sample, a subsample for membrane inlet mass spectrometry analyses was transferred to a 12 ml Exetainer, and the remaining content was filtered onto 25 mm precombusted GFF filters and stored at −20 °C while at sea. Additionally, 4 l of water samples was directly filtered onto precombusted GFF filters and used for natural 15N/14N ratio measurements. We quantified the 15N atom% enrichment of PN using an elemental analyser connected with an isotope ratio mass spectrometer (Integra2, Sercon). The isotope ratio mass spectrometer was calibrated using IAEA reference material IAEA-600. Membrane inlet mass spectrometry analyses were carried out according to ref. 61. N2 fixation rates were calculated according to ref. 62. The minimum quantifiable rate with exact error propagation was calculated63 (Supplementary Data 4). We calculated the average N2 fixation of triplicates and plotted it against FSLE and interpolated longitudinal temperature section using the plotly package (v.4.10.1) in R to identify N2 fixation in relation to oceanographic structures.

N2 extrapolation on the basis of mesoscale eddies

Classification of previous N2 fixation measurements in mesoscale eddies in the study region

We compiled previous measurements in the region affected by similar GS eddies (see ‘Identification of similar eddies in the study region’) and grouped them into eddy-affected samples: cyclonic eddies, anticyclonic eddies, open ocean and samples in the MAB. Specifically, we retrieved N2 fixation data from the global diazotrophic database version 2 (ref. 3) and mapped those samples against sea surface altimetry (sea-level anomaly, SLA) satellite products (Copernicus Marine Data, processed by the DUACS multimission altimeter data processing system; https://doi.org/10.48670/moi-00148), with a date range selection of a maximum of 15 d per individual dataset. This resulted in 316 samples between 0 and 100 m depth in 17 different SLA bins between 2007 and 2022, when our cruise took place (Supplementary Data 1). Samples were visually inspected and classified as eddies if a clear circular SLA anomaly was visible.

Extrapolation of nitrogen input from N2 fixation in eddies

We took a conservative approach to calculate the average eddy-borne N2 fixation input to the North Atlantic Gyre. We extrapolated N2 fixation rates measured in cyclonic and anticyclonic eddies from this study and previous studies (Supplementary Data 1) to the number of eddies of similar water mass origin generated during summer months within the area covering their birth, maturation and death using the NRT Eddy Atlas (dashed lines in Fig. 3c–e):

$$\begin{array}{l}{\mathrm{N}}\;{\mathrm{input}}({\mathrm{eddies}})\\={\mathrm{mean}}({\mathrm{N}}_2\;{\mathrm{fixation}})\times {\mathrm{volume}}({\mathrm{eddies}})\times {\mathrm{lifetime}}({\mathrm{eddies}})\times {{n}}\end{array}$$
(1)

taking the arithmetic mean from N2 fixation in nanomoles of N per metre cubed per day, eddy volume in metres cubed, eddy lifetime in days and the number of eddies (n).

Notably, measurements in the region are largely restricted to summer months. Therefore, calculations in this study are limited to eddies between June and September.

Eddy properties substantially change between the birth and decay phases64. Therefore, we additionally provide N2 fixation input estimates only considering the mature phase (80% of the eddies’ lifetime64), where eddy properties are most stable and match our sample measurements.

The background average N2 fixation input was calculated from previous studies in the region (Supplementary Data 1) and extrapolated to the study grid (Fig. 3c–e), subtracting the area covered by eddies.

The sampling spatial resolution in eddies from previous studies is too low to distinguish core from edge. Hence, to calculate the over- or underestimation of N2 fixation depending on the sample ___location (core/ edge), we only considered our own dataset, which had a sampling spatial resolution of ~30 km, allowing us to distinguish core from edge N2 fixation and diazotroph communities.

Relative additional N2 fixation input from increasing eddy activity within a decade was calculated between 2011 and 2021 using the linear regression for increasing anticyclonic eddy activity. The lower bound was calculated using the mean from the beginning until the mid-decade and from the mid-decade until the end of the decade. The upper bound of percentage additional input was calculated between 2011 and 2021 using the difference between the N input from eddies in comparison with the ambient water, normalized by the mean eddy lifetime (per year).

Diazotrophic and prokaryotic diversity

DNA sampling and nucleic acid extraction

At each station, we took around 4.25 l seawater samples from the Niskin bottles (depth-resolved CTD stations) or of the ships’ underway seawater pump (surface underway samples). Samples were filtered onto 0.2 µm Supor filters (Pall) with a peristaltic pump. Filters were transformed into sterile bead beater tubes, and 50 µl RNAlater (Fisher Scientific) was added to stabilize the samples for transport. Tubes were flash-frozen in liquid nitrogen and kept at −80 °C until extraction. DNA was extracted using the DNeasy Plant Mini Kit (Qiagen), with an additional step of proteinase K treatment after sample bead beating. In brief, we added 50 µl proteinase K (Qiagen) to each tube and incubated the samples at 55 °C for 2 h. We then continued normally with the DNase treatment following the manufacturer’s instructions. After DNA extraction, DNA concentration was quantified using a Varioskan and PicoGreen double-stranded DNA quantitation kit.

qPCR counts

NifH gene copies for Trichodesmium, UCYN-A1 and Gamma A were quantified with TaqMan qPCR assays on a CFX Opus Dx real-time PCR detection system (Bio-Rad) v.5.3.022.1030. We used the following primer and probes for the individual targeted taxa. For Trichodesmium we used forward primer 5′-GAC GAA GTA TTG AAG CCA GGT TTC-3′, reverse primer 5′-CGG CCA GCG CAA CCT A-3′ and probe 5′-FAM-CAT TAA GTG TGT TGA ATC TGG TGG TCC TGA GC-3′-TAMRA-3′ (ref. 65). For UCYN-A1 we used forward primer 5′-GGCTATAACAACGTTTTATGCGTTGA-3′, reverse primer 5′-ACCACGACCAGCACATCCA-3′ and probe 5′-FAM-TCCGGTGGTCCTGAGCCTGGA-3′-TAMRA-3′ (ref. 65). For Gamma A we used forward 5′-CGG TAG AGG ATC TTG AGC TTG AA-3′, reverse 5′-CACCTGACTCCACGCACTTG-3′ and probe 5′-FAM-AAG TGC TTA AGG TTG GCT TTG GCG ACA-3′-TAMRA-3′ (ref. 66). Each reaction (12.5 µl) consisted of 6.125 µl TaqMan PCR Master Mix (Applied Biosystems), 0.5 µl of the forward and reverse primers (10 µM), 0.25 µl probe (10 µM), 4 µl molecular biology grade water (Fisher BioReagents), 0.125 µl BSA (10.08 µg µl–1) and 1 µl standard or sample (samples were prediluted to 2 ng µl–1 to add 2 ng DNA to all qPCR reactions). The qPCR programme consisted of 50 °C for 2 min, then 95 °C for 10 min, followed by 45 cycles of 95 °C for 30 s and 60 °C for 1 min. Negative controls and standard dilutions from linearized plasmids containing the relevant nifH targets (accession number for Trichodesmium, AY528677; accession number for UCYN-A1, AF059642.1; accession number for Gamma A, EU052413). Standards ranged from 101 to 107 gene copies l–1 and were run in duplicate samples. No-template controls did not show any amplification. The qPCR efficiency ranged from 90 to 99%.

nifH gene and 16S rRNA gene library preparation and sequencing

PCR products were generated for amplicon sequencing targeting the nifH gene, which serves as a functional marker for diazotrophic organisms, and variable region 4 (V4) of the prokaryotic 16S rRNA gene. We PCR amplified the (~359-base-pair, bp) nifH gene from DNA extracts using a nested PCR protocol67,68. Hereby, two sets of degenerate primers were used, with the second set of primers nested within the first PCR products. Each sample was run in triplicate and pooled at the end of the nested PCR. The first PCR reaction included the nifH3 reverse primer (5′-ATRTTRTTNGCNGCRTA-3′) and the nifH4 forward primer (5′-TTYTAYGGNAARGGNGG-3′). The second PCR reaction was done with the nifH1 forward primer (5′-TGYGAYCCNAARGCNGA-3′) and the nifH2 reverse primer (5′-ADNGCCATCATYTCNCC-3′), which also carried the Illumina adaptors for further library preparation. PCR amplification targeting the V4 region of the 16S rRNA gene was performed using the 515F forward primer (5′-GTGYCAGCMGCCGCGGTAA-3′)69 and the 806R reverse primer (5′-GGACTACNVGGGTWTCTAAT-3′)70 as recommended by the Earth Microbiome Project (https://earthmicrobiome.org/). Each primer also carried Illumina-specific adaptors for downstream library preparation. PCR products were generated with 50 µl of total reaction volume containing 22 µl PCR grade water, 10 µl MyTaq polymerase, 1 µl of each forward and reverse primer (10 µM), 2.5 µl MgCl2 (25 mM), 1 µl BSA (10 mg ml−1) and 12 µl DNA template that was previously normalized to 2 ng µl−1. PCR cycles were run following standard protocols of amplicon library preparation (16S Metagenomic Sequencing Library Preparation, Illumina, part 15044223 Rev. B). All PCR products were cleaned using the MP Biomedicals Geneclean Turbo Kit and normalized to 25 ng µl−1. Normalized PCR products were submitted to Azenta GENEWIZ for subsequent library preparation and amplicon sequencing. NifH gene and 16S rRNA gene amplicon reads were generated using 300-bp paired-end sequencing with an Illumina NextSeq sequencer.

Amplicon sequence variant (ASV) generation and taxonomic assignment

Raw sequences were imported and processed in R (v.4.2.2) and RStudio (v.2023.06.0 + 421). We used the DADA2 (v.1.26.0) pipeline to process raw sequences into ASVs71. Primers were removed using cutadapt (v.4.3). The parameters in DADA2 were set as follows: truncLen = c(200, 180), maxN = 0, maxEE = c(2, 2), truncQ = 2, m.phix = TRUE. Denoised reads were merged using the function mergePairs(), and chimaeric contigs were removed with removeBimeraDenovo(). Taxonomic ranks for ASVs generated from nifH sequences were assigned using the nifH database tailored for the DADA2 pipeline (v.2.0.5)72 and the assignTaxonomy() function. Taxonomic ranks for ASVs generated from 16S sequences were assigned using the Silva v.138.1 database for DADA273.

Statistical and community connectivity analyses

All statistical analyses were performed in R (v.4.4.0) and RStudio (v.2024.04.0 + 735). We tested differences in N2 fixation between the physically classified fine-scale structures (‘Classification of previous N2 fixation measurements into mesoscale eddies in the study region’) with analysis of variance for sample variances, followed by a two-sample t-test comparing individual structures using the stats package (v.4.4.0). We tested differences between N2 fixation in different oceanographic structures within our study area (MAB–North Atlantic Gyre separated by the GS, and no eddy influences–eddy influences as identified using the Eddy Atlas) in the western North Atlantic with an F-test for sample variance followed by a Welch t-test. Due to the compositionality of sequencing data, we centred log-ratio (CLR)-transformed the nifH and 16S rRNA gene ASV tables. Before transformations, we removed all ASVs with only one instance across all samples and applied Bayesian-multiplicative treatments of zeros in the ASV tables using the cmultRepl() function of the zComposition package (v.1.5.0.3) to reduce the effect of zero-count samples. We examined the diazotrophic (nifH) and prokaryotic (16S) beta diversity structure by simple principal component analysis of the CLR-transformed ASV tables using the ordinate() and plot_ordination() functions in phyloseq (v.1.48.0)74. Further, we explored the effect of environmental variables on the diazotrophic beta diversity structure by first performing a stepwise permutational analysis using the ordiR2step() function in vegan (v.2.6.4), followed by redundancy analysis including the significant explanatory variables derived from the permutational analysis as explanatory variables in our redundancy analysis. Differences of diazotrophic dissimilarity between oceanographic structures were tested with a permutational analysis of variance75 on Aitchison of the nifH ASV table using the adonis2() function in vegan (v.2.6.4). We compared sample similarity of nifH and 16S rRNA gene sequences by hierarchically clustering both ASV tables individually using the ward2 method of the hclust() function, followed by the as.dendrogram() function of the stats package (v.4.4.0), and mapped them against each other using the untangle() and tanglegram() functions of the dendextend package (v.1.17.1).
