Extended Data Fig. 2
From: Glassy Li metal anode for high-performance rechargeable Li batteries

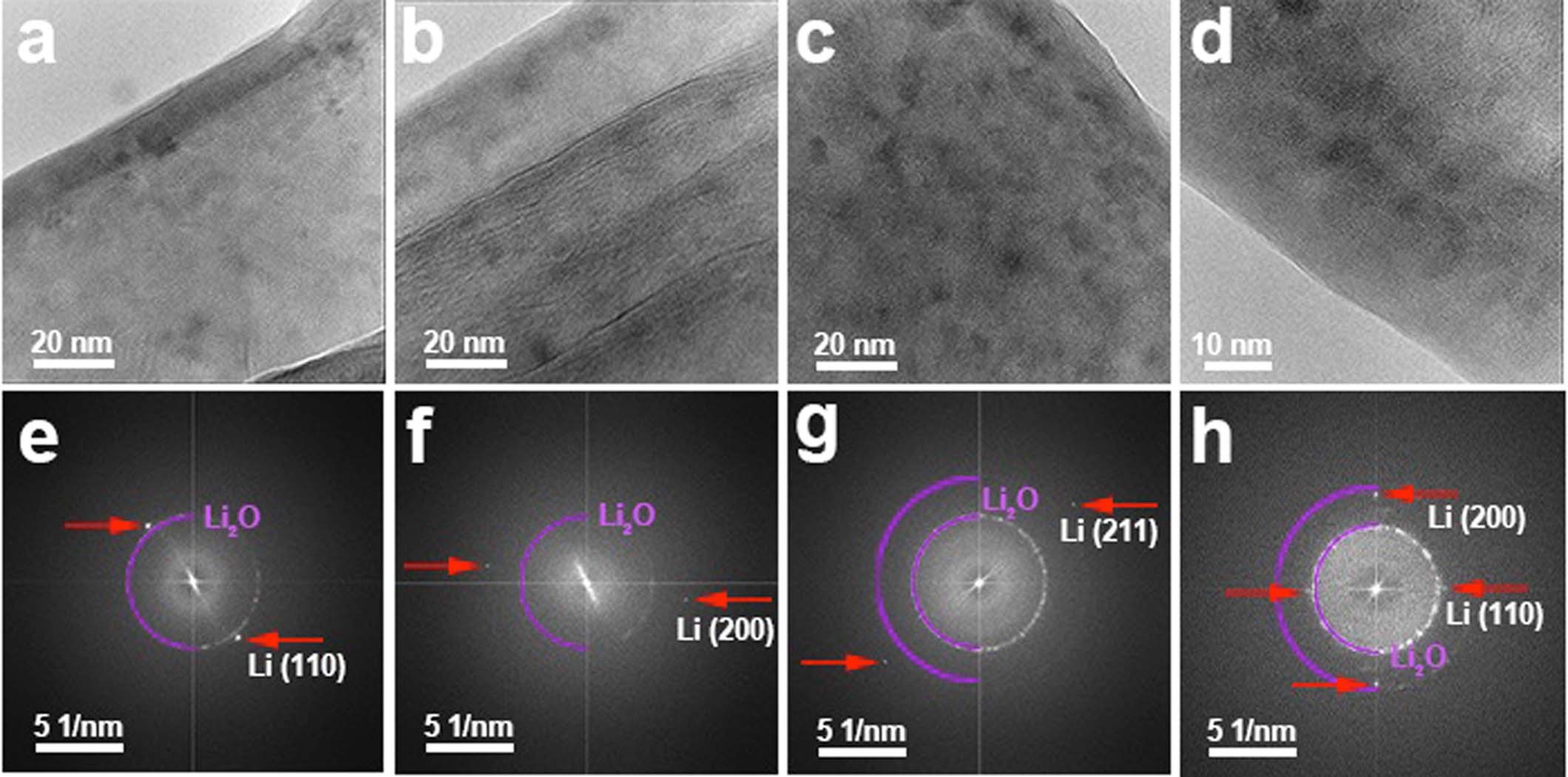

Cryo-TEM images (a-d) and their FFT patterns (e-h) of Li deposits at 0.5 mA cm-2 for 2h. Besides (110) plane of Li metal, lattice fringes or FFT spots with lattice spacing of ~0.174 and ~0.142 nm was also observed, which belongs to the (200) and (211) planes of Li metal, respectively. Specially in d and h, both (200) and (110) planes of Li metal are present, which helps to determine the zone axis of [001] and confirm the phase of Li metal.
