Extended Data Fig. 2: Particle counts in the \({L}_{a}-{\overline{q}}_{6}\) parameter space for experiments and simulations.

From: Fast crystal growth at ultra-low temperatures

Extended Data Fig. 2

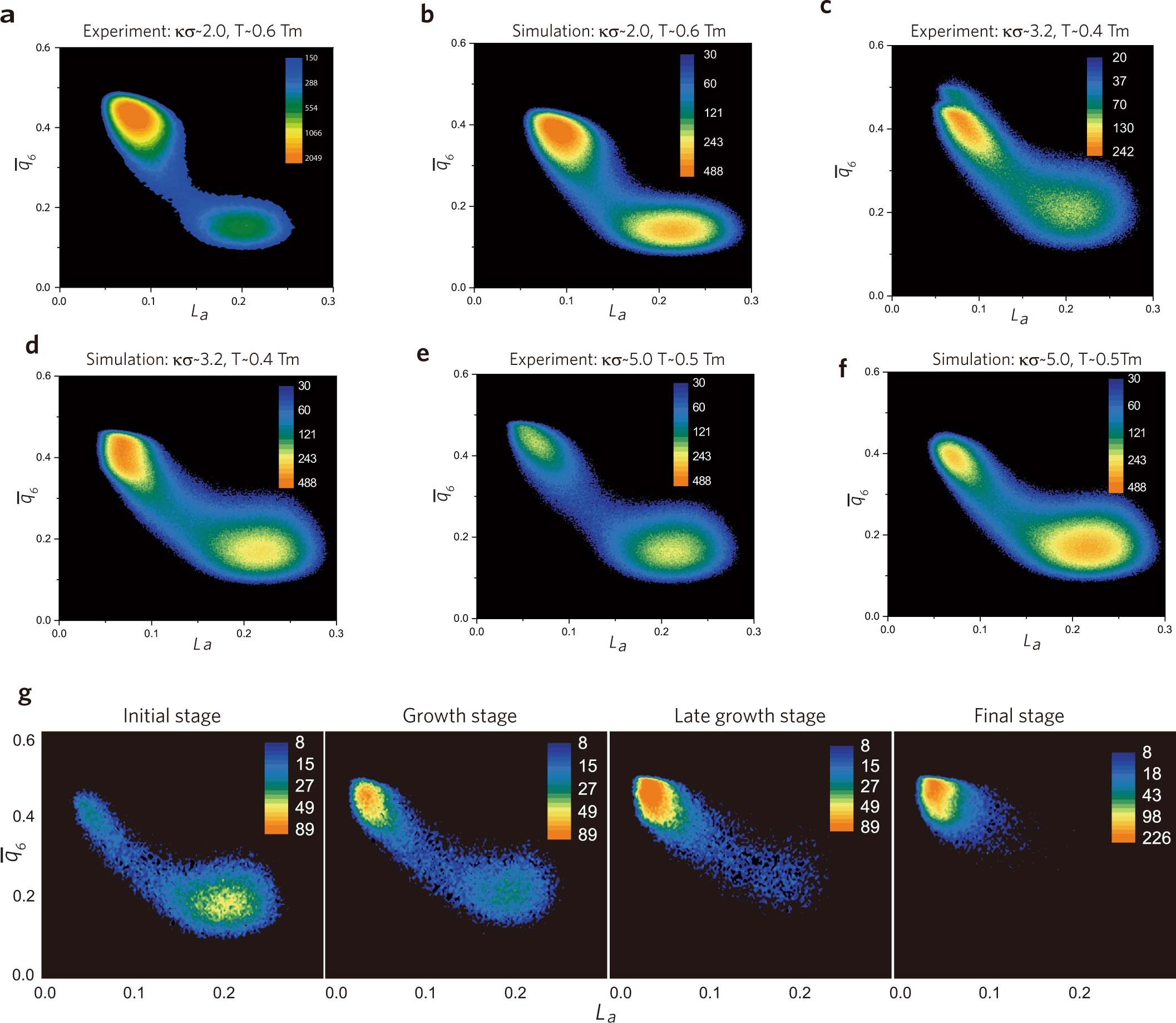

a,κσ ~ 2.0, T ~ 0.6Tm in experiments. b,κσ ~ 2.0, T ~ 0.6Tm in simulations. c,κσ ~ 3.2, T ~ 0.4Tm in experiments. d,κσ ~ 3.2, T ~ 0.4Tm in simulations. e,κσ ~ 5.0, T ~ 0.5Tm in experiments. f,κσ ~ 5.0, T ~ 0.5Tm in simulations. We can identify the layering of liquid as the region spreading out from the solid part (the upper-left island in each panel) towards the unlayered liquid (the lower-right island in each panel). g, Time evolution of the particle counts in the \({L}_{a}-{\overline{q}}_{6}\) parameter space. From left to right: the initial, early-growth, late-growth, and final stages.
