Extended Data Fig. 3: Simulation results of hexagon-array devices (inner hexagon chambers side length 40 µm, first loading and unloading cycle).

From: Frictionless multiphasic interface for near-ideal aero-elastic pressure sensing

Extended Data Fig. 3

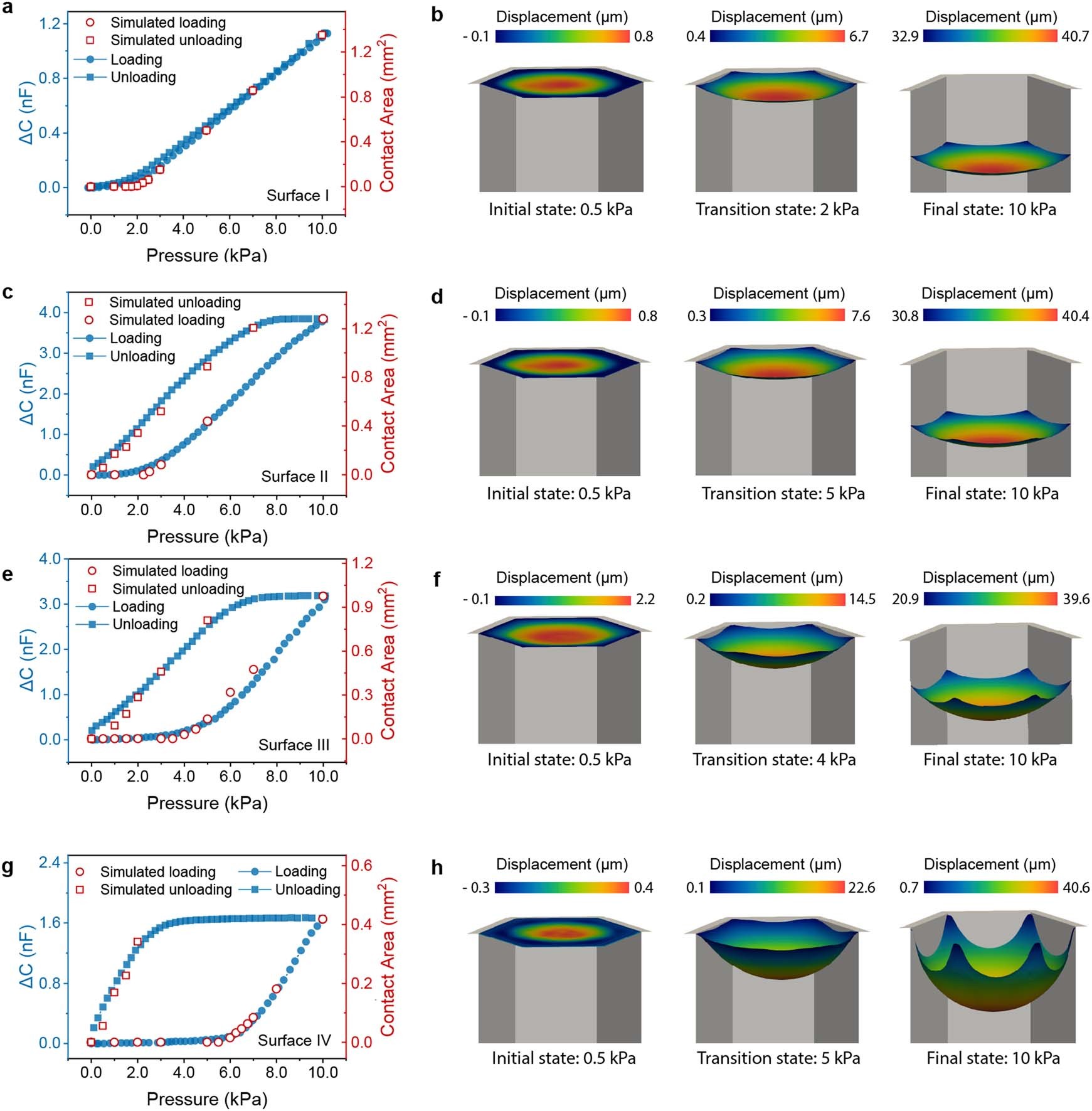

a, c, e, g, Matching of simulated contact area and measured capacitance of hexagon-array devices treated with surface I - IV, respectively. b, d, f, h, States of water-air interface under different liquid pressures in a hexagon unit chamber treated with surface I - IV, respectively.
