Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

Superconductivity and normal-state transport in compressively strained La2PrNi2O7 thin films

Abstract

The discovery of superconductivity under high pressure in Ruddlesden–Popper phases of bulk nickelates has sparked great interest in stabilizing ambient-pressure superconductivity in the thin-film form using epitaxial strain. Recently, signs of superconductivity have been observed in compressively strained bilayer nickelate thin films with an onset temperature exceeding 40 K, although with broad, two-step-like transitions. Here we report the intrinsic superconductivity and normal-state transport properties in compressively strained La2PrNi2O7 thin films, achieved through a combination of isovalent Pr substitution, growth optimization and precision ozone annealing. The superconducting onset occurs above 48 K, with zero resistance reached above 30 K, and the critical current density at 1.4 K is 100-fold larger than previous reports. The normal-state resistivity exhibits quadratic temperature dependence indicative of Fermi liquid behaviour, and other phenomenological similarities to transport in overdoped cuprates suggest parallels in their emergent properties.

This is a preview of subscription content, access via your institution

Access options

Buy this article

Prices may be subject to local taxes which are calculated during checkout

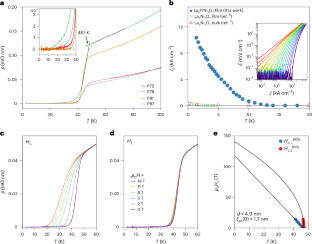

Fig. 1: Superconductivity in thin-film La2PrNi2O7.

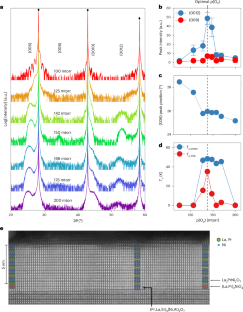

Fig. 2: Growth optimization and structural characterization.

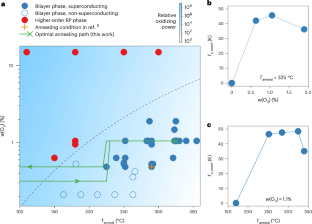

Fig. 3: Ozone annealing optimization.

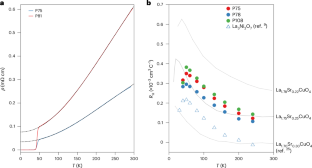

Fig. 4: Normal-state transport of La2PrNi2O7 films.

Similar content being viewed by others

Data availability

Any additional data that support the findings of this study are available from the corresponding authors upon reasonable request. Source data are provided with this paper.

References

  1. Sun, H. et al. Signatures of superconductivity near 80 K in a nickelate under high pressure. Nature 621, 493–498 (2023).

    Article  CAS  PubMed  Google Scholar

  2. Zhang, Y. et al. High-temperature superconductivity with zero resistance and strange-metal behaviour in La3Ni2O7–δ. Nat. Phys. 20, 1269–1273 (2024).

    Article  CAS  Google Scholar

  3. Wang, G. et al. Pressure-induced superconductivity in polycrystalline La3Ni2O7–δ. Phys. Rev. X 14, 011040 (2024).

    CAS  Google Scholar

  4. Zhu, Y. et al. Superconductivity in pressurized trilayer La4Ni3O10−δ single crystals. Nature 631, 531–536 (2024).

    Article  CAS  PubMed  Google Scholar

  5. Wang, N. et al. Bulk high-temperature superconductivity in pressurized tetragonal La2PrNi2O7. Nature 634, 579–584 (2024).

    Article  CAS  PubMed  Google Scholar

  6. Wang, M., Wen, H.-H., Wu, T., Yao, D.-X. & Xiang, T. Normal and superconducting properties of La3Ni2O7. Chinese Phys. Lett. 41, 077402 (2024).

    Article  CAS  Google Scholar

  7. Locquet, J.-P. et al. Doubling the critical temperature of La1.9Sr0.1CuO4 using epitaxial strain. Nature 394, 453–456 (1998).

    Article  CAS  Google Scholar

  8. Bozovic, I., Logvenov, G., Belca, I., Narimbetov, B. & Sveklo, I. Epitaxial strain and superconductivity in La2–xSrxCuO4 thin films. Phys. Rev. Lett. 89, 107001 (2002).

    Article  CAS  PubMed  Google Scholar

  9. Ko, E. K. et al. Signatures of ambient pressure superconductivity in thin film La3Ni2O7. Nature 638, 935–940 (2025).

    Article  CAS  PubMed  Google Scholar

  10. Zhou, G. et al. Ambient-pressure superconductivity onset above 40 K in (La,Pr)3Ni2O7 films. Nature 640, 641–646 (2025).

  11. Puphal, P. et al. Unconventional crystal structure of the high-pressure superconductor La3Ni2O7. Phys. Rev. Lett. 133, 146002 (2024).

    Article  CAS  PubMed  Google Scholar

  12. Chen, X. et al. Polymorphism in the Ruddlesden–Popper nickelate La3Ni2O7: discovery of a hidden phase with distinctive layer stacking. J. Am. Chem. Soc. 146, 3640–3645 (2024).

    Article  CAS  PubMed  Google Scholar

  13. Wang, H., Chen, L., Rutherford, A., Zhou, H. & Xie, W. Long-range structural order in a hidden phase of Ruddlesden–Popper bilayer nickelate La3Ni2O7. Inorg. Chem. 63, 5020–5026 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  14. Zinkevich, M., Solak, N., Nitsche, H., Ahrens, M. & Aldinger, F. Stability and thermodynamic functions of lanthanum nickelates. J. Alloys Compd. 438, 92–99 (2007).

    Article  CAS  Google Scholar

  15. Cui, T. et al. Strain-mediated phase crossover in Ruddlesden–Popper nickelates. Commun. Mater. 5, 32 (2024).

    Article  CAS  Google Scholar

  16. Li, D. et al. Superconductivity in an infinite-layer nickelate. Nature 572, 624–627 (2019).

    Article  CAS  PubMed  Google Scholar

  17. Smith, J. A., Cima, M. J. & Sonnenberg, N. High critical current density thick MOD-derived YBCO films. IEEE Trans. Appl. Supercond. 9, 1531–1534 (1999).

    Article  Google Scholar

  18. Wang, L. et al. Structure responsible for the superconducting state in La3Ni2O7 at high-pressure and low-temperature conditions. J. Am. Chem. Soc. 146, 7506–7514 (2024).

    Article  CAS  PubMed  Google Scholar

  19. Li, J. et al. Identification of the superconductivity in bilayer nickelate La3Ni2O7 upon 100 GPa. Preprint at https://arxiv.org/abs/2404.11369 (2025).

  20. Dong, Z. et al. Visualization of oxygen vacancies and self-doped ligand holes in La3Ni2O7–δ. Nature 630, 847–852 (2024).

    Article  CAS  PubMed  Google Scholar

  21. Batakliev, T., Georgiev, V., Anachkov, M., Rakovsky, S. & Rakovsky, S. Ozone decomposition. Interdiscip. Toxicol. 7, 47–59 (2014).

    Article  PubMed  PubMed Central  Google Scholar

  22. Wiesmann, H. et al. Simple model for characterizing the electrical resistivity in A – 15 superconductors. Phys. Rev. Lett. 38, 782–785 (1977).

    Article  CAS  Google Scholar

  23. Cooper, R. A. et al. Anomalous criticality in the electrical resistivity of La2–xSrxCuO4. Science 323, 603–607 (2009).

    Article  CAS  PubMed  Google Scholar

  24. Hussey, N. E. Phenomenology of the normal state in-plane transport properties of high-Tc cuprates. J. Phys. Condens. Matter 20, 123201 (2008).

    Article  Google Scholar

  25. Hwang, H. Y. et al. Scaling of the temperature dependent Hall effect in La2–xSrxCuO4. Phys. Rev. Lett. 72, 2636–2639 (1994).

    Article  CAS  PubMed  Google Scholar

  26. Zhou, Y. et al. Investigations of key issues on the reproducibility of high-Tc superconductivity emerging from compressed La3Ni2O7. Matter Radiat. Extrem. 10, 027801 (2025).

    Article  CAS  Google Scholar

  27. Gu, Y., Le, C., Yang, Z., Wu, X. & Hu, J. Effective model and pairing tendency in the bilayer Ni-based superconductor La3Ni2O7. Phys. Rev. B 111, 174506 (2025).

  28. Zhang, Y., Lin, L.-F., Moreo, A. & Dagotto, E. Electronic structure, dimer physics, orbital-selective behavior, and magnetic tendencies in the bilayer nickelate superconductor La3Ni2O7 under pressure. Phys. Rev. B 108, L180510 (2023).

    Article  CAS  Google Scholar

  29. Christiansson, V., Petocchi, F. & Werner, P. Correlated electronic structure of La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 206501 (2023).

    Article  CAS  PubMed  Google Scholar

  30. Lechermann, F., Gondolf, J., Bötzel, S. & Eremin, I. M. Electronic correlations and superconducting instability in La3Ni2O7 under high pressure. Phys. Rev. B 108, L201121 (2023).

    Article  CAS  Google Scholar

  31. Yang, Q.-G., Wang, D. & Wang, Q.-H. Possible s±-wave superconductivity in La3Ni2O7. Phys. Rev. B 108, L140505 (2023).

    Article  CAS  Google Scholar

  32. Liu, Y.-B., Mei, J.-W., Ye, F., Chen, W.-Q. & Yang, F. s±-wave pairing and the destructive role of apical-oxygen deficiencies in La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 236002 (2023).

    Article  CAS  PubMed  Google Scholar

  33. Yang, Y., Zhang, G.-M. & Zhang, F.-C. Interlayer valence bonds and two-component theory for high-Tc superconductivity of La3Ni2O7 under pressure. Phys. Rev. B 108, L201108 (2023).

    Article  CAS  Google Scholar

  34. Shen, Y., Qin, M. & Zhang, G.-M. Effective bi-layer model Hamiltonian and density-matrix renormalization group study for the high-Tc superconductivity in La3Ni2O7 under high pressure. Chinese Phys. Lett. 40, 127401 (2023).

    Article  CAS  Google Scholar

  35. Qin, Q. & Yang, Y. High-Tc superconductivity by mobilizing local spin singlets and possible route to higher Tc in pressurized La3Ni2O7. Phys. Rev. B 108, L140504 (2023).

    Article  CAS  Google Scholar

  36. Luo, Z., Lv, B., Wang, M., Wú, W. & Yao, D.-X. High-Tc superconductivity in La3Ni2O7 based on the bilayer two-orbital t-J model. npj Quantum Mater. 9, 61 (2024).

    Article  CAS  Google Scholar

  37. Sakakibara, H., Kitamine, N., Ochi, M. & Kuroki, K. Possible high Tc superconductivity in La3Ni2O7 under high pressure through manifestation of a nearly half-filled bilayer Hubbard model. Phys. Rev. Lett. 132, 106002 (2024).

    Article  CAS  PubMed  Google Scholar

  38. Geisler, B., Hamlin, J. J., Stewart, G. R., Hennig, R. G. & Hirschfeld, P. J. Fermi surface reconstruction in strained La3Ni2O7 on LaAlO3(001) and SrTiO3(001). Preprint at https://arxiv.org/abs/2411.14600 (2024).

  39. Zhao, Y.-F. & Botana, A. S. Electronic structure of Ruddlesden-Popper nickelates: Strain to mimic the effects of pressure. Phys. Rev. B 111, 115154 (2025).

    Article  CAS  Google Scholar

  40. Lu, C., Pan, Z., Yang, F. & Wu, C. Interlayer-coupling-driven high-temperature superconductivity in La3Ni2O7 under pressure. Phys. Rev. Lett. 132, 146002 (2024).

    Article  CAS  PubMed  Google Scholar

  41. Oh, H. & Zhang, Y.-H. Type-II t-J model and shared superexchange coupling from Hund’s rule in superconducting La3Ni2O7. Phys. Rev. B 108, 174511 (2023).

    Article  CAS  Google Scholar

  42. Cao, Y. & Yang, Y. Flat bands promoted by Hund’s rule coupling in the candidate double-layer high-temperature superconductor La3Ni2O7 under high pressure. Phys. Rev. B 109, L081105 (2024).

    Article  CAS  Google Scholar

  43. Qu, X.-Z. et al. Bilayer t-J-J model and magnetically mediated pairing in the pressurized nickelate La3Ni2O7. Phys. Rev. Lett. 132, 036502 (2024).

    Article  CAS  PubMed  Google Scholar

  44. Ouyang, Z. et al. Hund electronic correlation in La3Ni2O7 under high pressure. Phys. Rev. B 109, 115114 (2024).

    Article  CAS  Google Scholar

  45. Wang, Z., Jiang, K. & Zhang, F.-C. Self-doped molecular Mott insulator for bilayer high-temperature superconducting La3Ni2O7. Preprint at https://arxiv.org/abs/2412.18469 (2025).

  46. Botana, A. S., Lee, K.-W., Norman, M. R., Pardo, V. & Pickett, W. E. Low valence nickelates: launching the nickel age of superconductivity. Front. Phys. 9, 813532 (2022).

    Article  Google Scholar

  47. Luo, Z., Hu, X., Wang, M., Wú, W. & Yao, D.-X. Bilayer two-orbital model of La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 126001 (2023).

    Article  CAS  PubMed  Google Scholar

  48. Fan, Z. et al. Superconductivity in nickelate and cuprate superconductors with strong bilayer coupling. Phys. Rev. B 110, 024514 (2024).

    Article  CAS  Google Scholar

  49. Jiang, K., Wang, Z. & Zhang, F.-C. High-temperature superconductivity in La3Ni2O7. Chinese Phys. Lett. 41, 017402 (2024).

    Article  CAS  Google Scholar

  50. Jiang, R., Hou, J., Fan, Z., Lang, Z.-J. & Ku, W. Pressure driven fractionalization of ionic spins results in cupratelike high-Tc superconductivity in La3Ni2O7. Phys. Rev. Lett. 132, 126503 (2024).

    Article  CAS  PubMed  Google Scholar

  51. Harper, F. E. & Tinkham, M. The mixed state in superconducting thin films. Phys. Rev. 172, 441–450 (1968).

    Article  Google Scholar

  52. Harvey, S. P. et al. Evidence for nodal superconductivity in infinite-layer nickelates. Preprint at https://arxiv.org/abs/2201.12971 (2022).

  53. Mihaly, L., Kendziora, C., Hartge, J., Mandrus, D. & Forro, L. High-pressure cell for oxygen annealing at elevated temperatures. Rev. Sci. Instrum. 64, 2397 (1993).

    Article  CAS  Google Scholar

Download references

Acknowledgements

We thank Y. Deng, K. Lee, Y. Lee, Y. Lv, J. May-Mann, F. Theuss, B. Y. Wang, Y.-M. Wu and J. J. Yu for discussions and assistance. Y.L., E.K.K., Y.T., J.L., S.R., Y.Y. and H.Y.H. acknowledge support from the US Department of Energy, Office of Basic Energy Sciences, Division of Materials Sciences and Engineering (contract no. DE-AC02-76SF00515), as well as SuperC and the Kavli Foundation (aspects of magnetic characterization). Work at the Stanford Nano Shared Facilities (SNSF) RRID:SCR_023230 is supported by the National Science Foundation under grant ECCS-1542152. L.B. and D.A.M. acknowledge support from the National Science Foundation (DMR-1719875), NSF PARADIM (DMR-2039380) and the Weill Institute and the Kavli Institute at Cornell University. X-ray measurements were carried out at the SSRL, SLAC National Accelerator Laboratory, supported by the US Department of Energy, Office of Science, Office of Basic Energy Sciences (contract no. DE-AC02-76SF00515). B.H.G. acknowledges support from the Max Planck Society and Schmidt Science Fellows in partnership with the Rhodes Trust.

Author information

Authors and Affiliations

Authors

Contributions

Y.Y. and H.Y.H. conceived and designed the project. Y.L. and E.K.K. synthesised the films. Y.Y. built the ozone annealing setup and studied the ozone annealing effects with Y.L. and Y.T. Y.L. characterized and studied the transport properties of films with the assistance of Y.T. L.B., B.H.G. and D.A.M. measured and analysed the STEM images. J.L., Y.L., Y.T. and V.T. performed the reciprocal-space mapping measurements. Y.Y., Y.L., S.R. and H.Y.H. analysed the data and wrote the paper with input from all authors.

Corresponding authors

Correspondence to Yijun Yu or Harold Y. Hwang.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Materials thanks Jinguang Cheng and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Diamagnetic response for sample P236 and comparison with previous reports.

a, Normalized real part (Re(Vp)) and b, imaginary (Im(Vp)) part of the voltage in the pickup coil as a function of temperature, measured using a two-coil mutual-inductance technique on sample P236. c, Resistivity of the sample. For comparison, corresponding data from refs. 9 and 10, measured on La3Ni2O7 and (La,Pr)3Ni2O7 films, are also plotted. The red triangles in b and c mark the onset temperature of diamagnetic response and zero resistance Tc, respectively.

Source data

Extended Data Fig. 2 Structural properties of sample P75.

a, Synchrotron x-ray RSM of sample P75 on substrate SLAO(001). The (1117) Bragg peak of the film is measured along with the SLAO(109) Bragg peak. b, Tc,onset versus in-plane lattice constant. The bulk and thin film studies from ref. 9 are plotted for comparison.

Extended Data Fig. 3 ρ(T) of films with different growth and ozone annealing conditions.

a, ρ(T) of films grown at different p(O2), with ozone annealing conditions as described in ref. 9. b, ρ(T) of films annealed at varying Tanneal but the same w(O3). c, ρ(T) of films annealed at varying w(O3) but the same Tanneal. In each plot, the sample with the highest Tc,onset is highlighted with a thick line.

Source data

Extended Data Fig. 4 Bespoke ozone annealing setup with in situ electrical transport.

a, Schematic of the ozone annealing setup. b, Photograph of the setup, with an inset showing a film in the chip carrier inside the quartz tube. To the right of the chip carrier, a PT1000 sensor is positioned to measure the temperature at the chip carrier. c, Interior of the ozone generator, consisting of a tunable high voltage module (front), an ozone quartz generator with inlet and outlet (centre), and a cooling fan (back). A power meter is connected to the high voltage module to monitor the power which regulates w(O3).

Extended Data Fig. 5 Optimized ozone annealing profiles for sample P75.

a-c, Time-dependent profiles of ρ, w(O3), and Tanneal during optimized ozone annealing. The inset of a shows the saturation of ρ upon oxygenation completion. Blue vertical dashed lines mark changes in w(O3), while red vertical dashed lines indicate the start of warming, reaching Tanneal, and the completion of annealing, respectively. The complex evolution of ρ with time can be understood by changes in the oxidation environment during the annealing process. This is due to both the time required for the gas environment inside the quartz tube to respond after manually adjusting w(O3), and the temperature change.

Source data

Extended Data Fig. 6 Optimal timing of ozone annealing.

a-b, time-dependent resistivity measurements during ozone annealing of two specimens from the same growth (Sample P237). The triangles indicate the points at which the samples began cooling. In a, resistivity did not reach saturation before cooling, whereas in constrast to b. c, ρ(T) of the specimens shown in a and b.

Source data

Extended Data Fig. 7 Stability study.

a, XRD θ–2θ symmetric scan of as-grown films right after growth and five months later. b, Resistivity versus temperature ρ(T) for two specimens of sample P75: One piece was ozone-annealed immediately after growth, while the other was ozone-annealed five months later. c and d, Time-dependent ρ(T) plots of ozone-annealed samples P80 (stored in ambient conditions) and P75 (stored in liquid nitrogen dewar), respectively. e, Time-dependent resistivity at 300 K, normalized by the resistivity at day 0, for samples stored under different conditions. f, A photograph of Swagelok® cap and nut that is used as a gas-tight container to store samples in a nitrogen dewar.

Source data

Extended Data Fig. 8 Hall resistance (Rxy) versus magnetic field.

Data are anti-symmetrised. Data below 60 K shows non-linear behaviour due to the onset of superconductivity. a-c correspond to samples P75, P78, and P108, respectively. Data from Fig. 4b in the main text.

Source data

Source data

Source Data Fig. 1

Source data for Fig. 1.

Source Data Fig. 2

Source data for Fig. 2.

Source Data Fig. 3

Source data for Fig. 3.

Source Data Fig. 4

Source data for Fig. 4.

Source Data Extended Data Fig. 1

Source data for Extended Data Fig. 1.

Source Data Extended Data Fig. 3

Source data for Extended Data Fig. 3.

Source Data Extended Data Fig. 5

Source data for Extended Data Fig. 5.

Source Data Extended Data Fig. 6

Source data for Extended Data Fig. 6.

Source Data Extended Data Fig. 7

Source data for Extended Data Fig. 7.

Source Data Extended Data Fig. 8

Source data for Extended Data Fig. 8.

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Liu, Y., Ko, E.K., Tarn, Y. et al. Superconductivity and normal-state transport in compressively strained La2PrNi2O7 thin films. Nat. Mater. (2025). https://doi.org/10.1038/s41563-025-02258-y

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1038/s41563-025-02258-y

Search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
