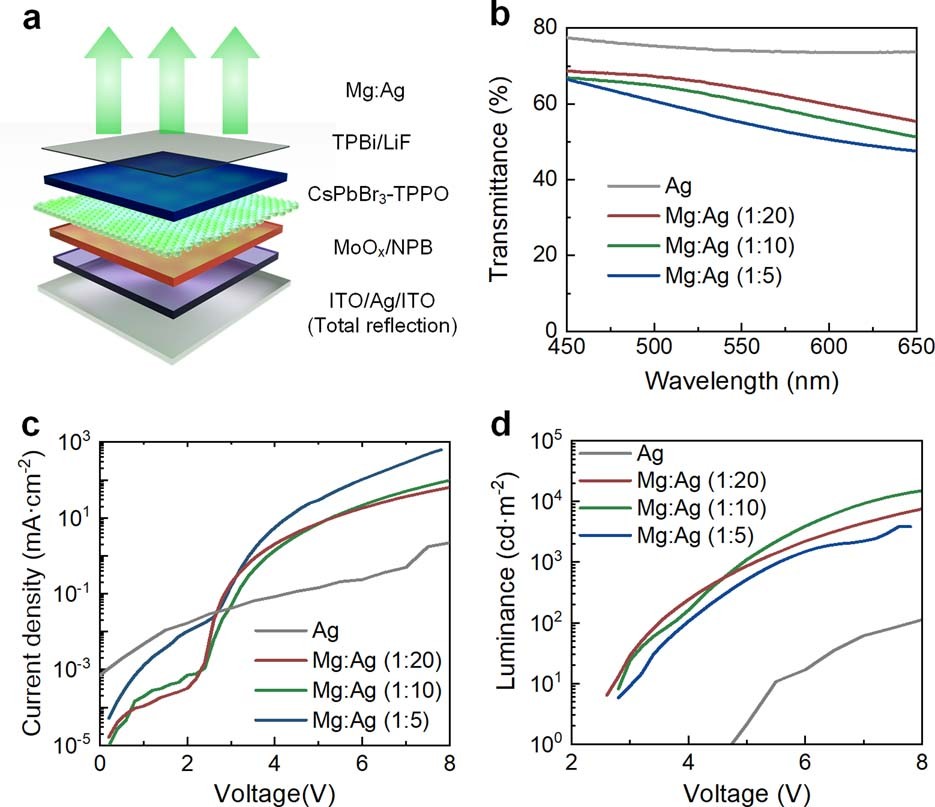

Extended Data Fig. 5: Optical and electrical characteristics of 12 nm Mg:Ag electrodes with various molar ratios.
From: Efficient all-thermally evaporated perovskite light-emitting diodes for active-matrix displays
a, Structure diagram of top-emitting PeLED. b, Transmission spectra of Mg:Ag electrodes. c, d, Current density−voltage and luminance−voltage curves of top-emitting PeLEDs based on different Mg:Ag electrodes. The work functions of Ag, Mg:Ag (1:20 mol%), Mg:Ag (1:10 mol%), and Mg:Ag (1:5 mol%) electrodes are 4.50 eV, 4.30 eV, 4.14 eV, and 4.02 eV, respectively.
