Extended Data Fig. 10: Magnetoresistance along different directions. | Nature Physics

Extended Data Fig. 10: Magnetoresistance along different directions.

From: Correlated order at the tipping point in the kagome metal CsV3Sb5

Extended Data Fig. 10

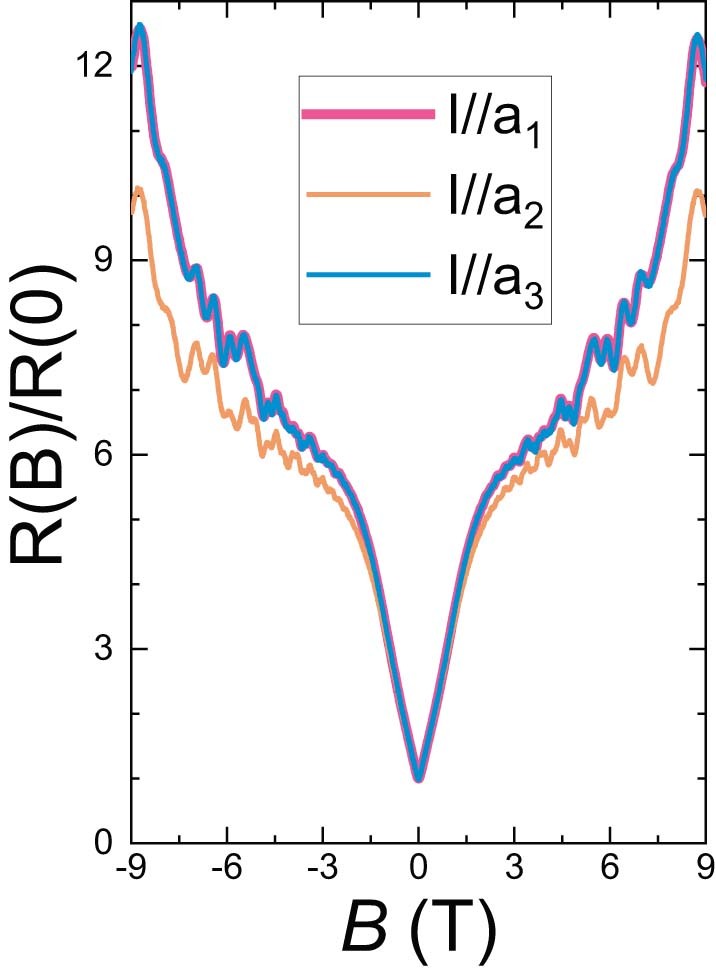

Field dependence of magnetoresistance measured along all three different current directions at T = 2 K in device S3. The results measured with I//a1 and I//a3 overlaps exactly with each other, yet deviates clearly with I//a2. All magnetoresistances display a shoulder-like feature at around B ≈ 1.6 T.
