Extended Data Fig. 5: Overall structure of the complex of human γ-secretase and Notch-100.

From: Structural basis of Notch recognition by human γ-secretase

Extended Data Fig. 5

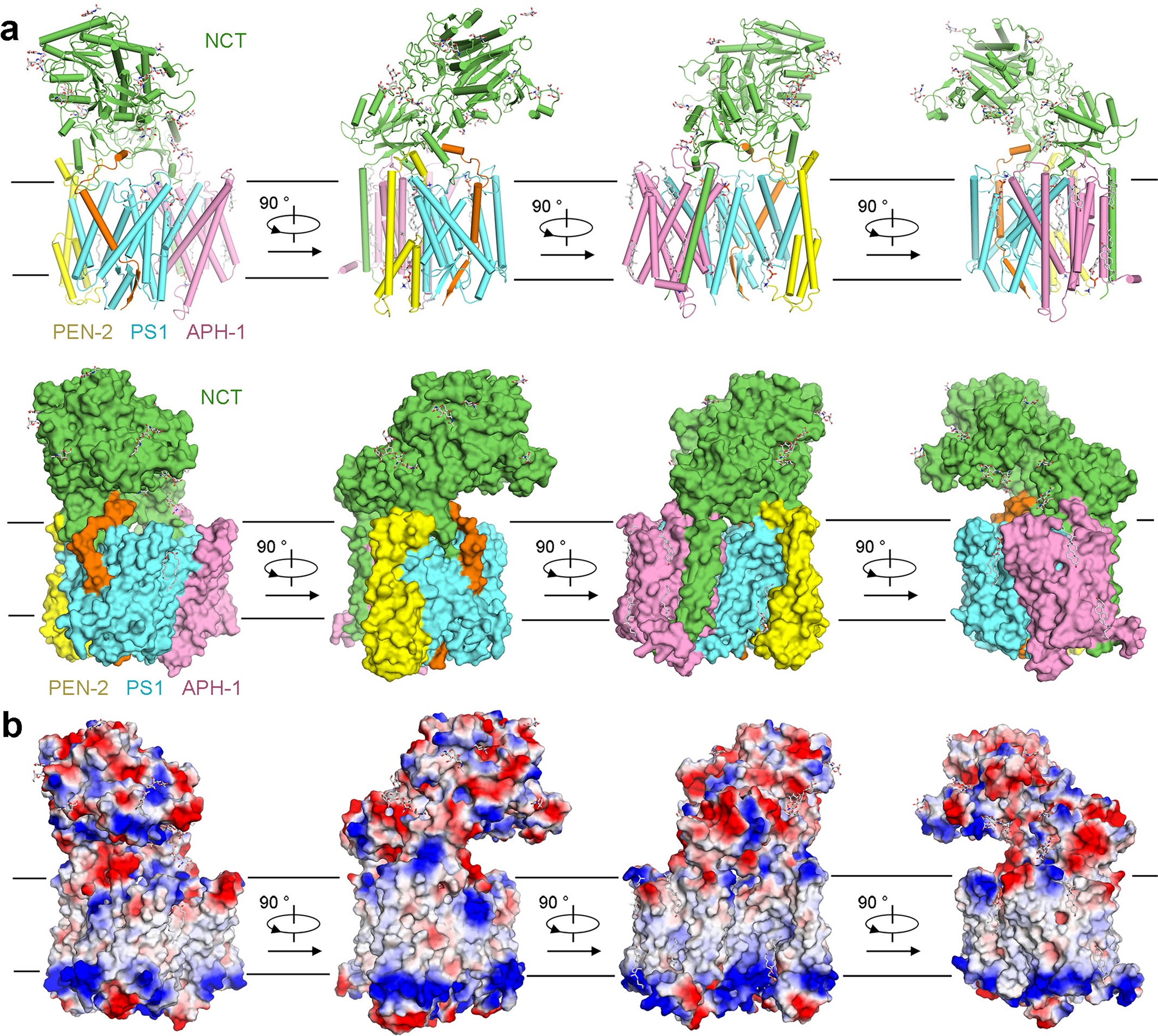

a, Overall structure of human γ-secretase bound to Notch-100. The structure is shown either in cartoon (cylindrical helices, top) or in surface (bottom). Glycans and lipids are displayed as sticks. Four perpendicular views are shown. b, The human γ-secretase–Notch-100 complex is represented by electrostatic surface potential. The four views are identical to those in a.
