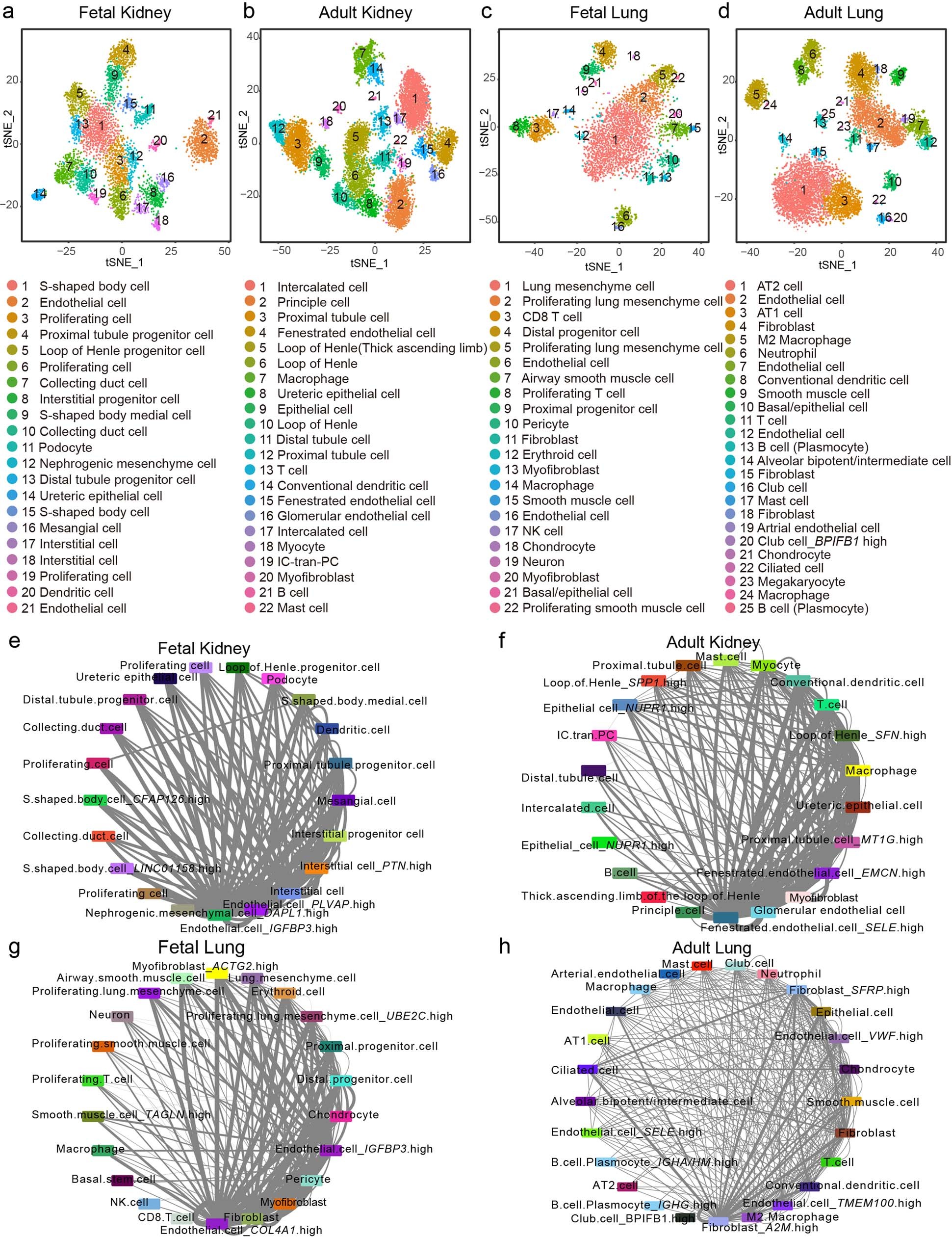

Extended Data Fig. 5: Analysis of human lung and kidney.
From: Construction of a human cell landscape at single-cell level
a, t-SNE map of fetal kidney 4 single-cell data (n = 4,511 cells). The experiment was replicated four times with similar results. b, t-SNE map of adult kidney 2 single-cell data (n = 8,877 cells). The experiment was replicated three times with similar results. c, t-SNE map of fetal lung 1 single-cell data (n = 4,526 cells). The experiment was replicated twice with similar results. d, t-SNE map of adult lung 1 single-cell data (n = 8,426 cells). The experiment was replicated three times with similar results. All cells in a–d are coloured according to cell-type cluster. e–h, Ligand and receptor analysis of fetal kidney 4 (e), adult kidney 2 (f), fetal lung 1 (g) and adult lung 1 (h) using the method CellPhoneDB. The colours represent cell types; line thickness indicates the degree of association between cell types.
