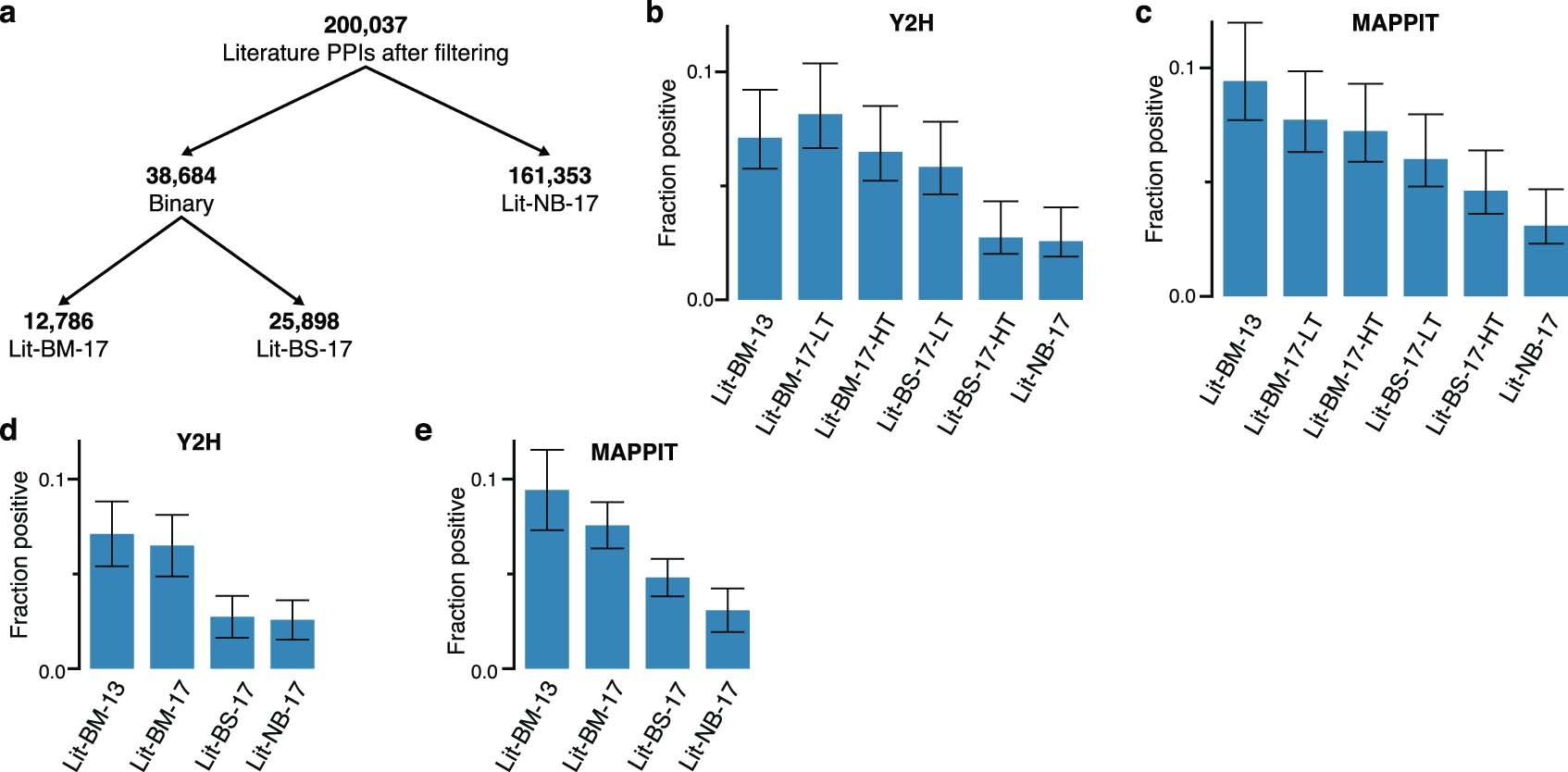

Extended Data Fig. 2: Definition of literature-curated PPI datasets.
From: A reference map of the human binary protein interactome
a, Categorization of literature-curated PPIs into distinct subsets based on the experimental methods in which they were detected and the number of pieces of experimental evidence. b–e, Results of testing the different categories of literature-curated pairs in Y2H (b, d) and MAPPIT (c, e) in which the pairs have been further divided into high-throughput (HT) and low-throughput (LT) subsets (b, c). There were between n = 191 and n = 471 successfully tested PPIs for each category. BM, binary multiple; BS, binary singleton; NB, non-binary. Error bars are standard error of proportion.
