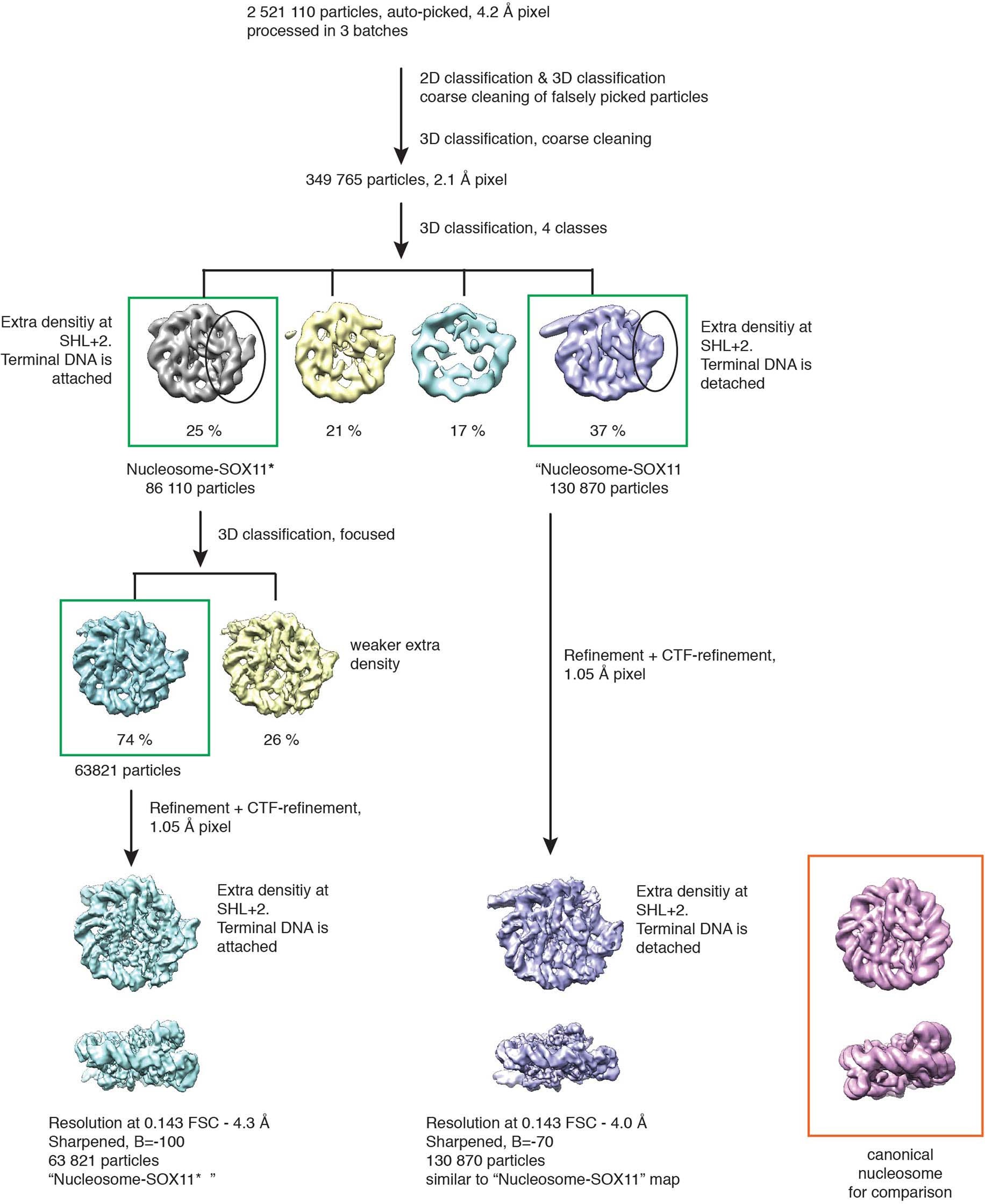

Extended Data Fig. 10: Flow chart for determination of the cryo-EM structure of the nucleosome–SOX11* complex with 151-bp DNA-1.

Related to Figs. 1–3. The processing chart for the 151-bp DNA-1 nucleosome and SOX11 is depicted. The two resulting structures are nucleosome–SOX11* and a map virtually identical to the nucleosome–SOX11 from the 147-bp sample.
