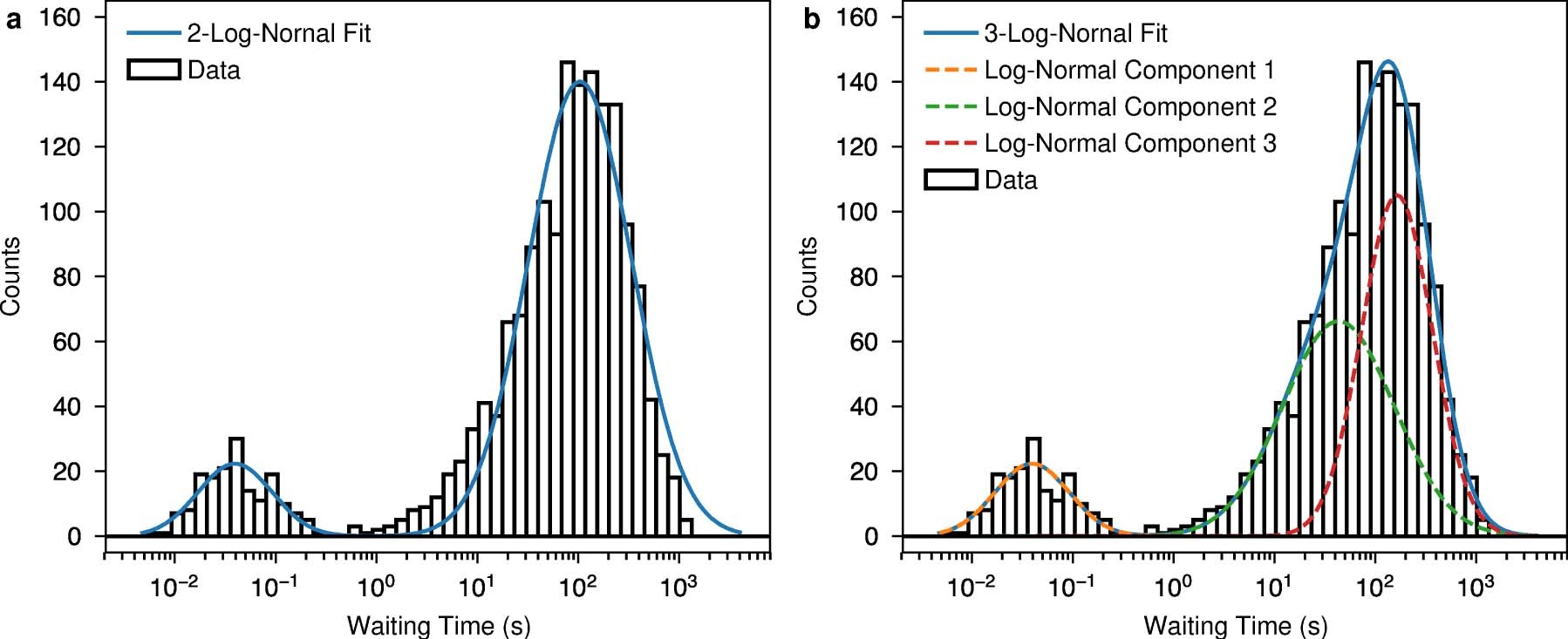

Extended Data Fig. 3: Waiting time distribution of FRB 20201124A.
From: A fast radio burst source at a complex magnetized site in a barred galaxy
a, The best fit using two log-normal functions (the blue curve), in which the two log-normal distributions peak at 39 ms and 106.7 s. b, The best fit (blue curve) using three log-normal functions, which are indicated with the dashed-line curves, peaking at 39 ms, 45.1 s and 162.3 s.
