Extended Data Fig. 3: kISC and kRISC of HzTFEX2 and HzPipX2.
From: Delayed fluorescence from inverted singlet and triplet excited states

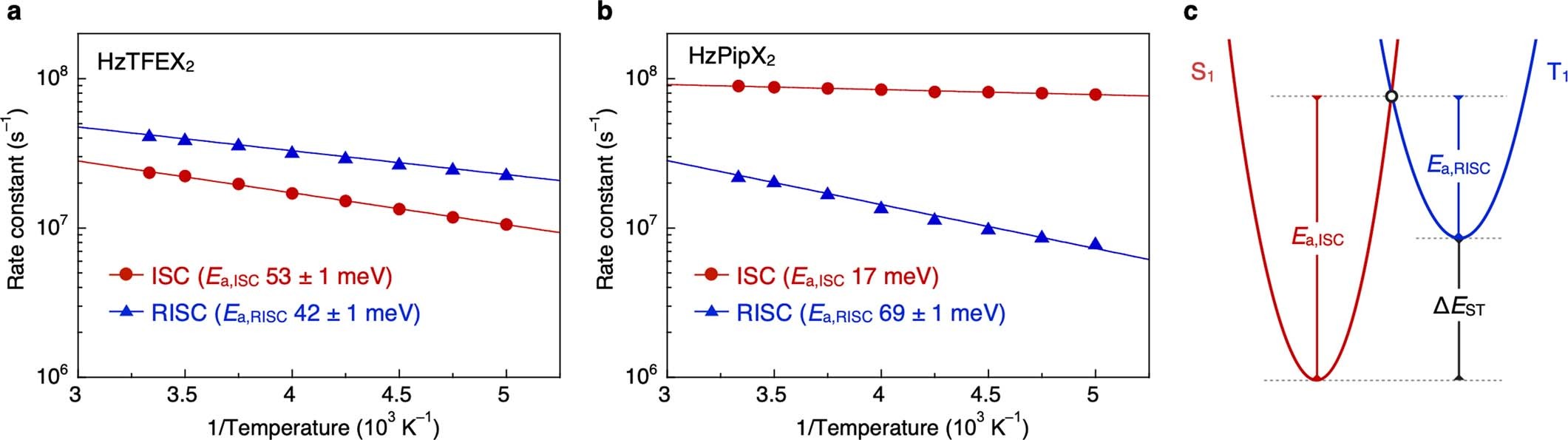

a,b, Temperature dependence of kISC and kRISC of HzTFEX2 (a) and HzPipX2 (b) in deaerated toluene. The solid lines in a and b represent the fits of the plots to the Arrhenius equation. The error bars of the plots in a and b are smaller than the plot size. c, Schematic diagram of the potential energy surfaces of S1 and T1 and the activation energies of ISC and RISC.
