Extended Data Fig. 9: Histology for projection-specific RSP-SC loss-of-function.

From: A cortico-collicular circuit for orienting to shelter during escape

Extended Data Fig. 9

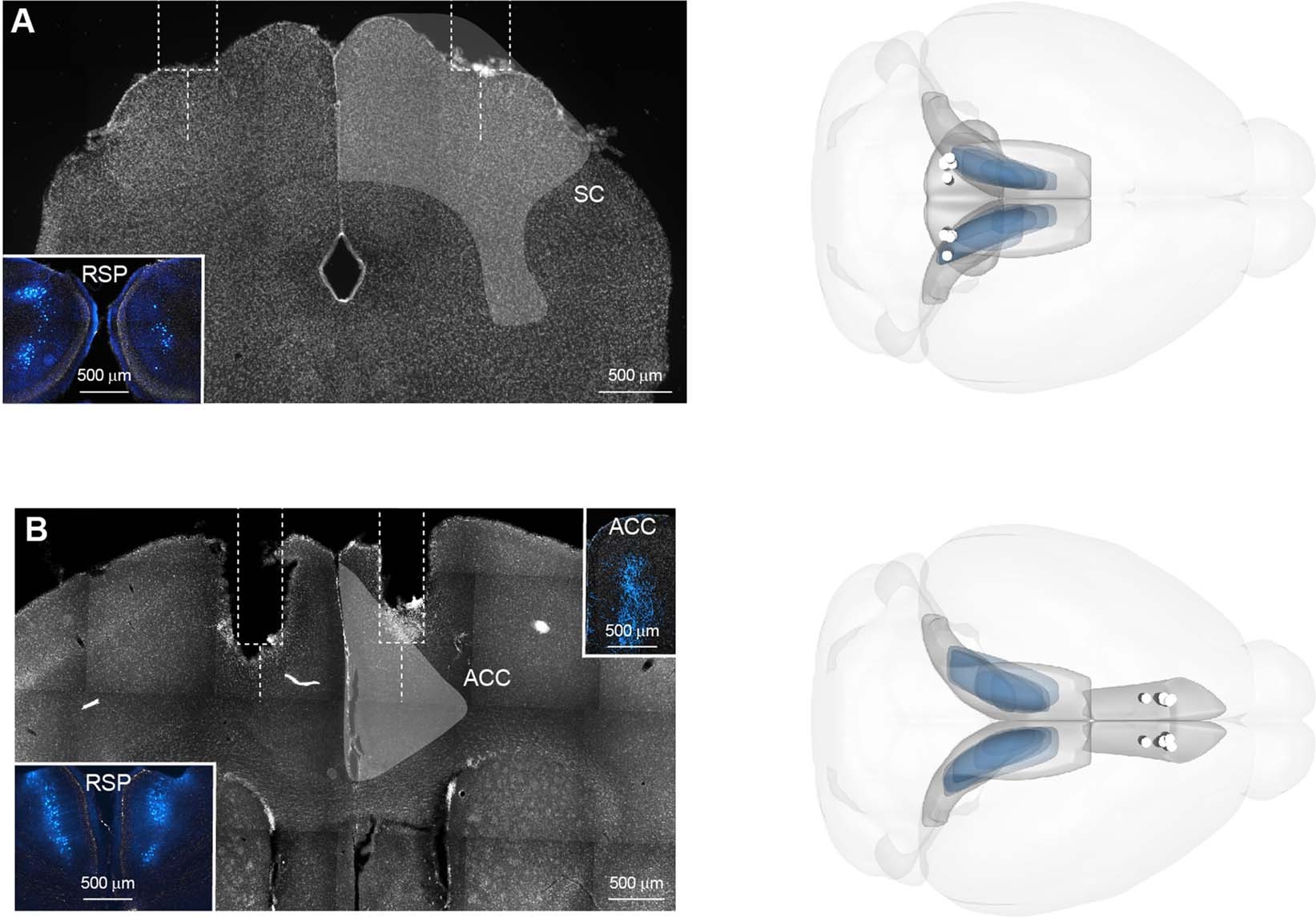

Coronal sections and 3D renderings showing guides and internal cannulae locations (white dotted lines and white circles) implanted in the superior colliculus (SC; A) and anterior cingulate cortex (ACC; B). Insets and blue shades in the right panels show SC-projecting RSP neurons of the respective mouse, expressing hM4Di. Inset in B (top-right) shows the axon collaterals to ACC of SC-projecting RSP neurons.
