Fig. 2: Characterization of remissions with the menin inhibitor revumenib in susceptible relapsed or refractory acute leukaemia subtypes.

From: The menin inhibitor revumenib in KMT2A-rearranged or NPM1-mutant leukaemia

Fig. 2

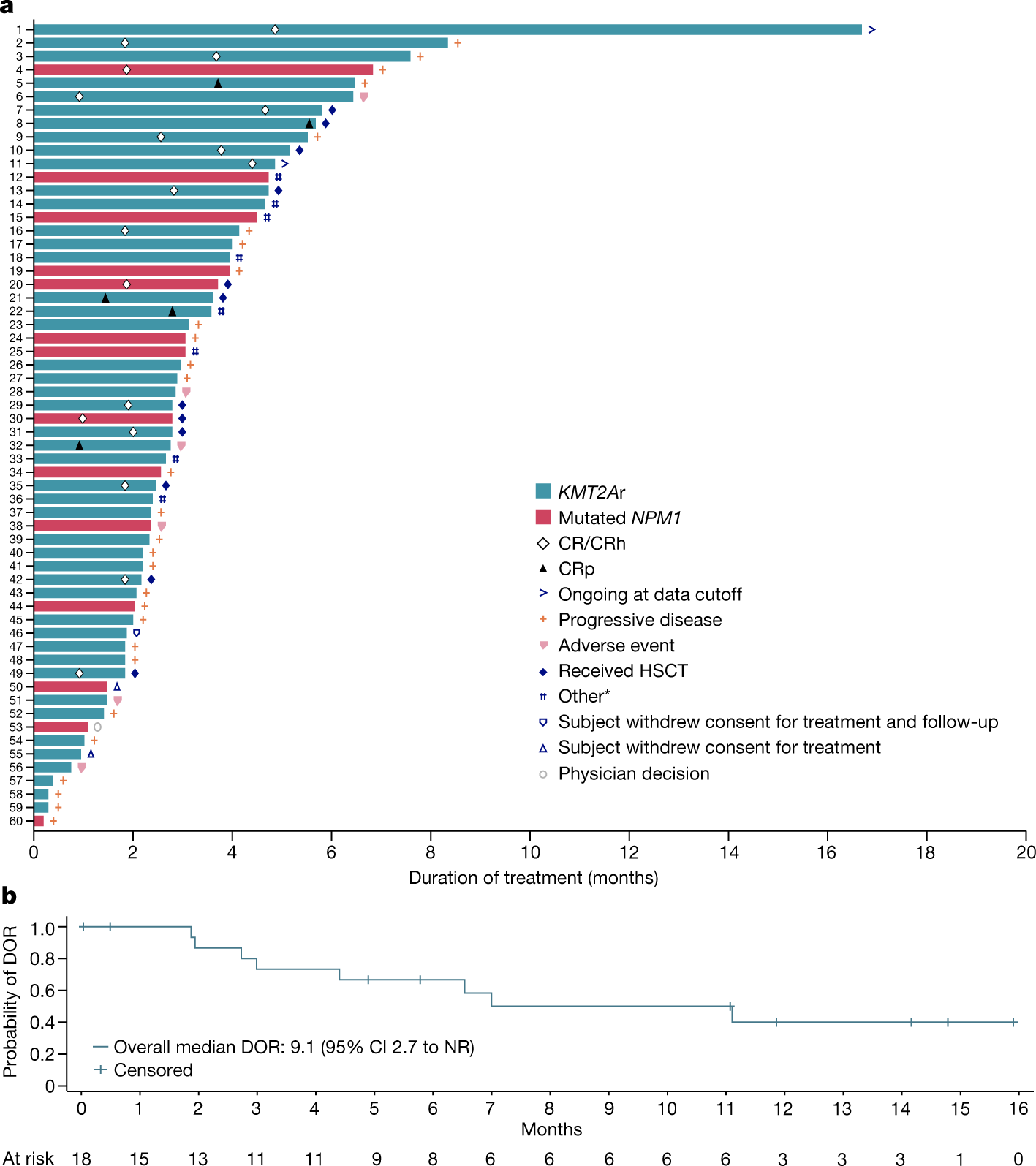

a, Time to response, duration of treatment (censored at time of HSCT) and patient status by the cutoff date. *Other reasons for treatment discontinuation included no response, relapse, death and donor lymphocyte infusion. b, Kaplan–Meier curve of duration of response (DOR) in patients with CR or CR/CRh without censoring at the time of an allogeneic stem cell transplant performed in 12 of 18 evaluable patients.
