Extended Data Fig. 2: Climatological data corresponding to Ψdry (in situ dry season leaf water potential) sampling at each site.

From: Basin-wide variation in tree hydraulic safety margins predicts the carbon balance of Amazon forests

Extended Data Fig. 2

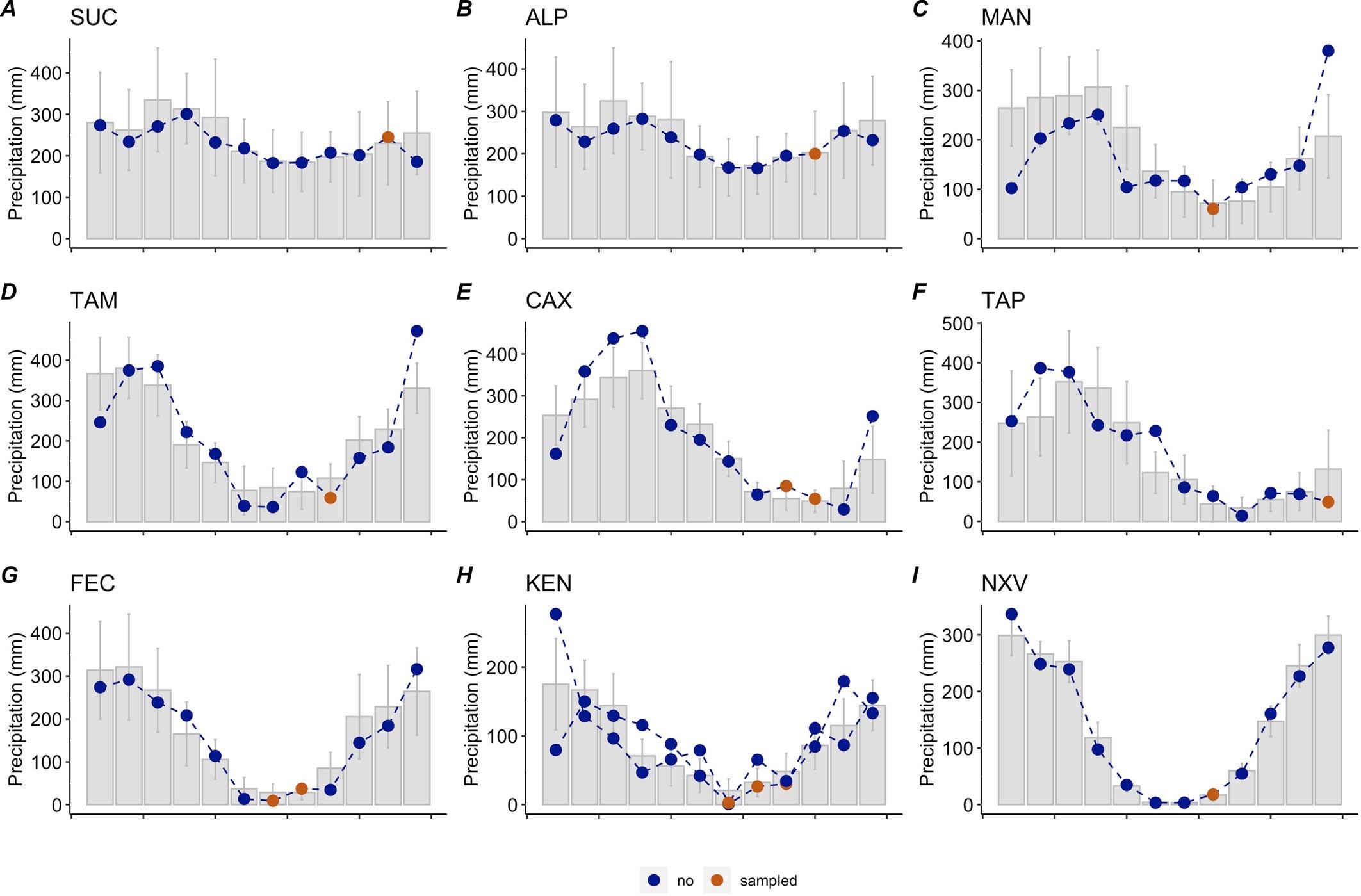

Grey bars and error bars show the mean and standard deviation of monthly precipitation from 1991 to 2018 (CRU data ts.4.0338)75. The blue dashed lines represent the year of sampling, while the brown points show the months at which \(\varPsi \)dry was measured. Hydraulic traits and climatic data for TAP were obtained from Brum et al.27. We display CRU data in this figure due to no availability of TRMM (Tropical Rainfall Measuring Mission) data beyond 2016. Sampling years can be found in Supplementary Table 8.
