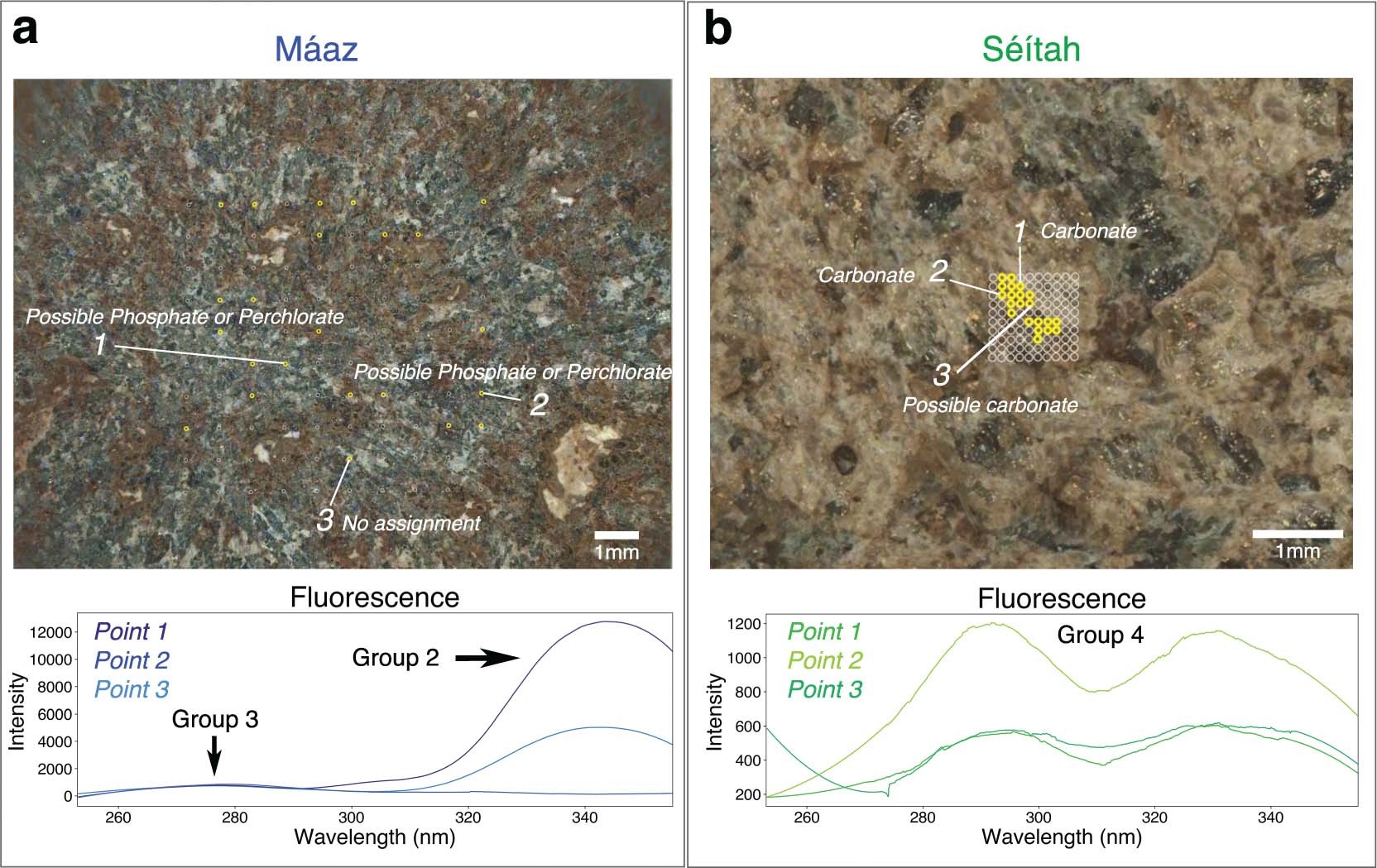

Extended Data Fig. 6: Group 3 Feature Mineral Association in Bellegarde and Group 4 Feature ~290 & 330 nm Feature and Mineral Associations in Garde.

A) Colorized ACI of Bellegarde (Máaz fm.) HDR scan on sol 186 with laser overlay (gray = no fluorescence detected, yellow = fluorescence at ~270–295 nm detected). Three points of interest with Group 3 fluorescence are marked in white and correlate to the smoothed mean spectra below. Point 1 and 2 were co-located with a potential phosphate or perchlorate detection (~973, ~965 cm⁻¹); Point 3 was not co-located with a mineral detection. In all of these points, high intensity Group 2 fluorescence was also detected. B) Colorized ACI of Garde (Séítah fm.) Detail centre 1 scan on sol 208 with laser overlay (gray = no fluorescence detected, yellow = fluorescence at ~290 & 330 nm doublet detected). Three points of interest with clear fluorescence are marked in white and correlate to the spectra below. All three points were co-located with Raman detections of potential carbonate (~1088, ~1080, ~1085 cm⁻¹).
