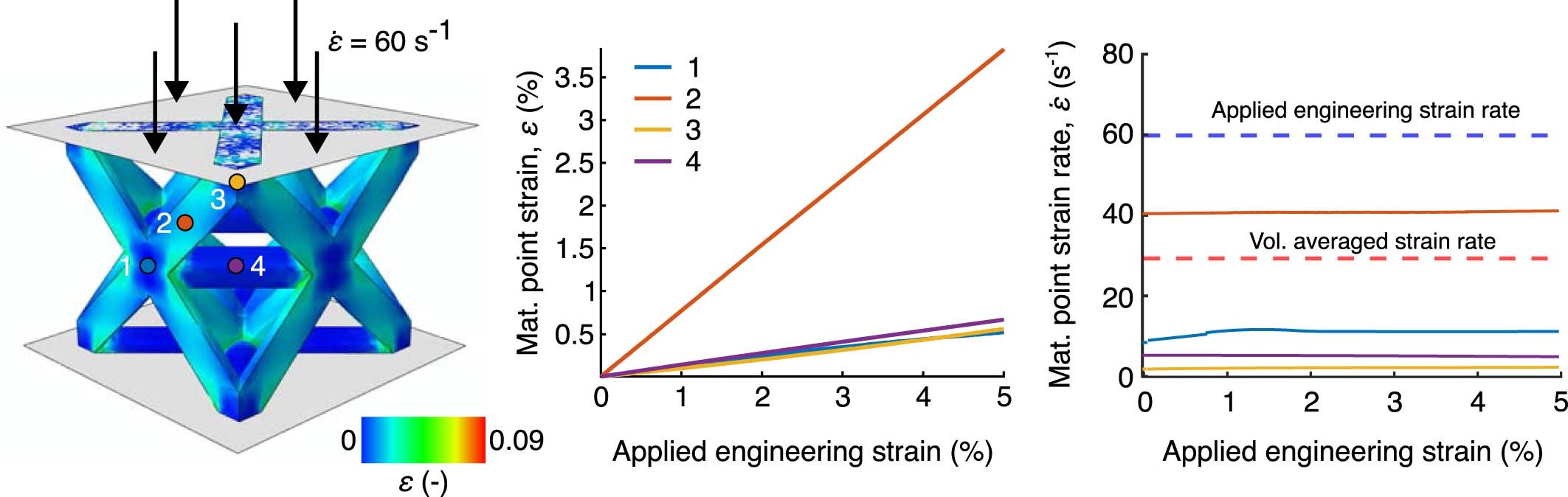

Extended Data Fig. 9: Dynamic explicit simulation of octet unit cell at 60 s−1 strain rate.
From: Dynamic diagnosis of metamaterials through laser-induced vibrational signatures
3D plot of the maximum absolute logarithmic strain (ε) is shown for a particular time instant when the applied engineering strain is 5%. Maximum absolute logarithmic strain and strain rate as a function of time are shown at the four representative material points labelled in the 3D plot (middle panel). The maximum strain rate is seen at point 2 for the given applied engineering strain rate. The volume-averaged maximum absolute logarithmic strain rate is approximated to be 48% of the applied engineering strain rate.
