Extended Data Fig. 16: LIM Homeobox transcription factors make up regulatory modules determined by SCENIC.
From: A transcriptomic taxonomy of mouse brain-wide spinal projecting neurons

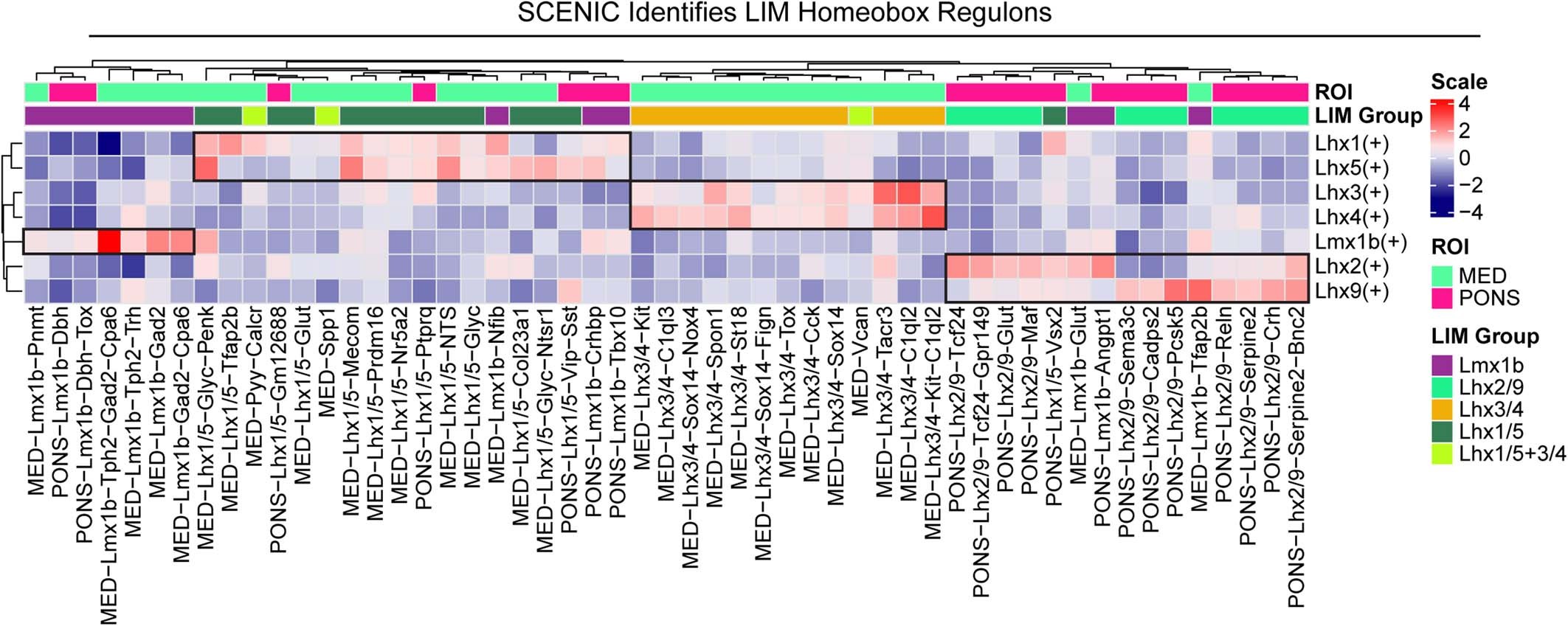

Heatmap of scaled regulon activity determined by single-cell regulatory network inference and clustering (SCENIC). Regulons are transcription factors and their putative downstream targets. Rows represent regulons, with transcription factor listed on the right. Columns are each one of the 53 pontomedullary ReSN types. Black outlines indicate LIM-defined modules.
