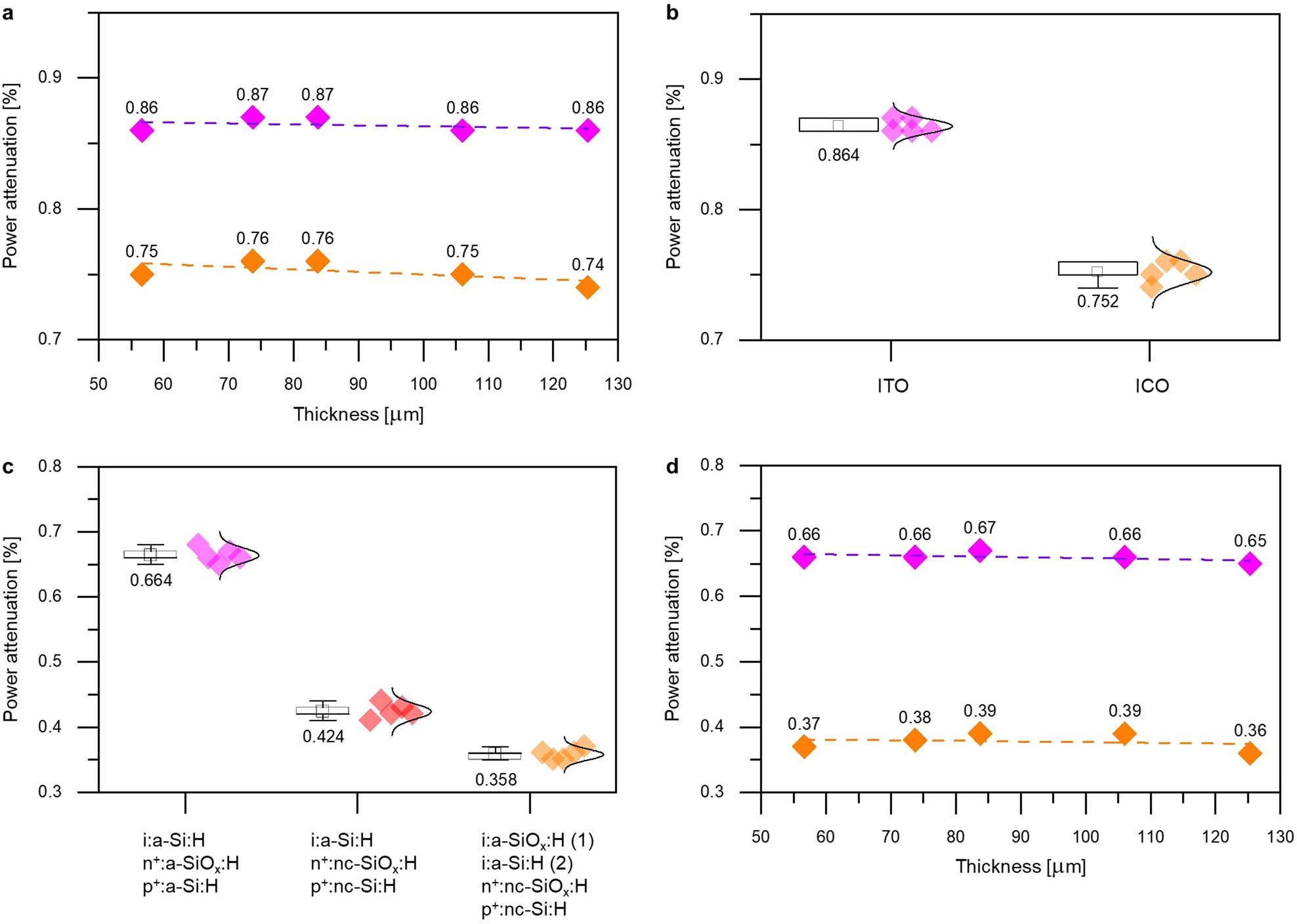

Extended Data Fig. 7: Durability analysis.
From: Flexible silicon solar cells with high power-to-weight ratios
a, Impact of the different TCO layers on the PID resistance of the FT and SF SHJ cells for each thickness. b, Statistical analysis of the anti-PID capacities of the FT and SF cells with the ITO and ICO layers. Temperature: 85 °C, humidity: 85%, bias: −1,500 V, duration: 192 h. c, Statistical analysis of the anti-light-induced degradation capacities of the FT and SF cells with the different passivation and contact layers. d, Light-induced degradation resistance of the FT and SF cells for each thickness. Accumulated illumination of 210 kWh·m−2. The dashed lines in the panels (a, d) are fit lines to evaluate the data change trends.
