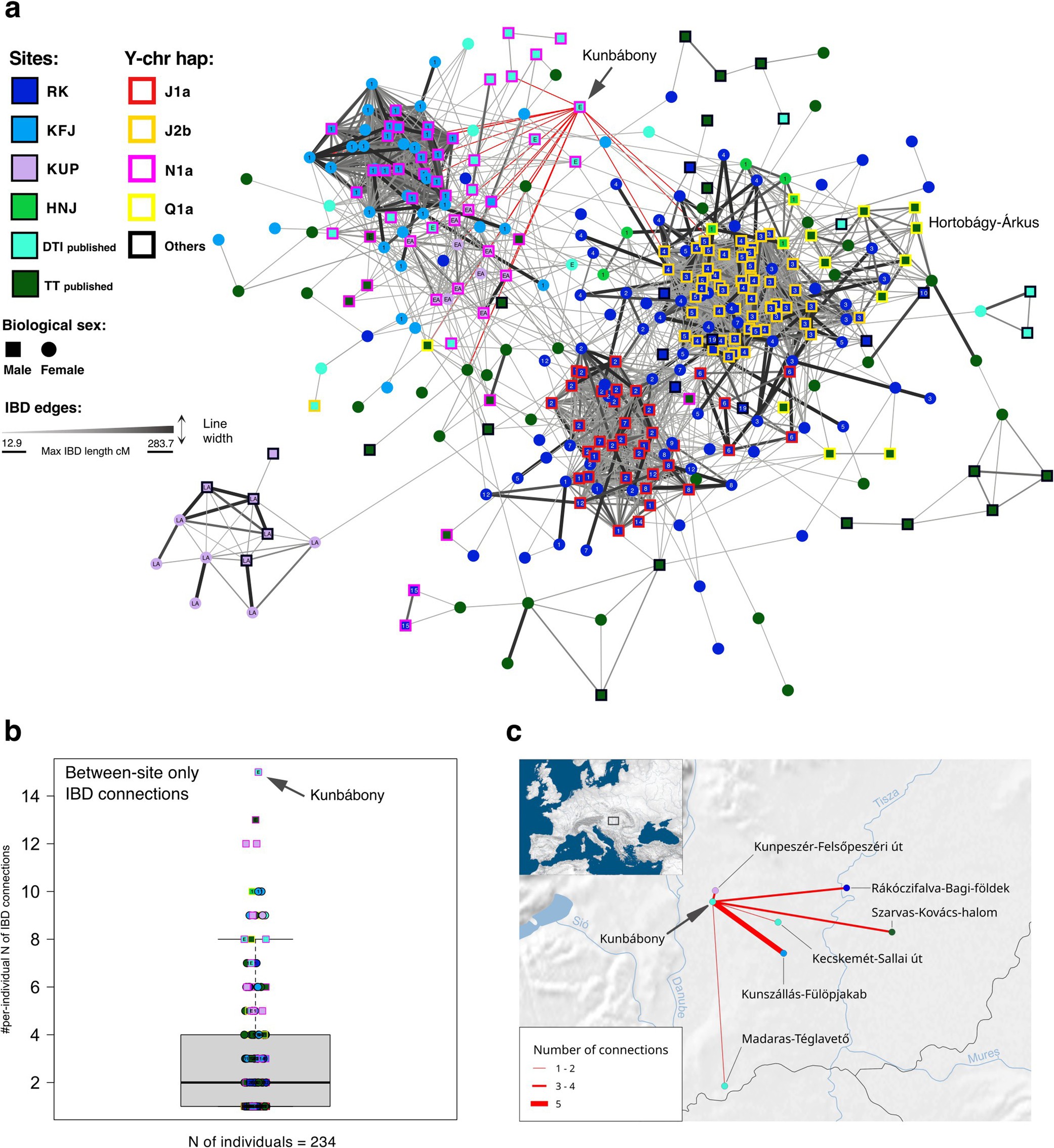

Extended Data Fig. 6: Network analysis of the ancIBD haplotype-IBD sharing between the Avar-period individuals analyzed in the study and previously published.
From: Network of large pedigrees reveals social practices of Avar communities
a) Visualization of the network of IBD connections (edges) between the ancient individuals (nodes) colored coded as in Fig. 3. The published individuals were retrieved from a number of different sites and are color coded to the regions where the site is located, DTI or TT. b) box plot showing the number of IBD connections for all the individuals from the network in a) having at least one IBD link with individuals from a site other than its own (237 individuals meeting this requirement). The plot shows all individual data points as well as the median (black line), upper and lower quartiles (the contour of the box) and the whiskers are the minimum and maximum values as calculated by the standard boxplot() function in R. c) map showing the sites with individuals connected to Kunbábony though IBDs. The thickness of the lines corresponds to the number of individuals connected. The base geographic map is from https://www.naturalearthdata.com and plotted with R34.
