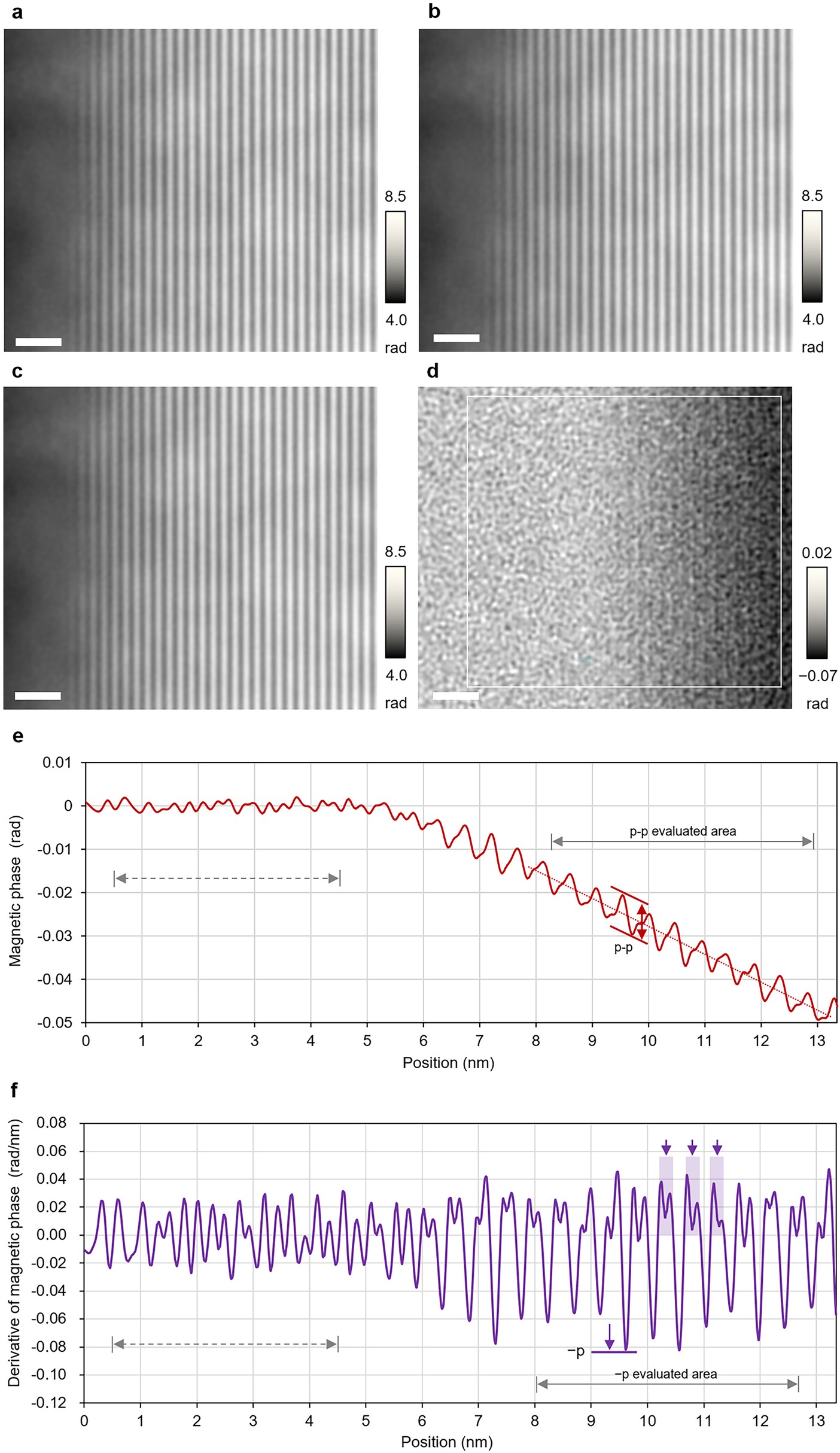

Extended Data Fig. 11: Phase images without applying a 1/0.4 nm−1 filter and obtained data.
From: Electron holography observation of individual ferrimagnetic lattice planes
a, Phase \({\varphi }_{\uparrow }\) with + M. b, Phase \({\varphi }_{\downarrow }\) with −M. c, Electrostatic phase. d, Magnetic phase. e, Line profile of magnetic phase in the [111] direction (averaging width along lattice plane is 12.3 nm) in the area indicated by white rectangle in d. f, Derivative of magnetic phase profile shown in e. The gray-dashed areas in e and f indicate the areas used for evaluating standard deviation. The scale bar is 2 nm.
