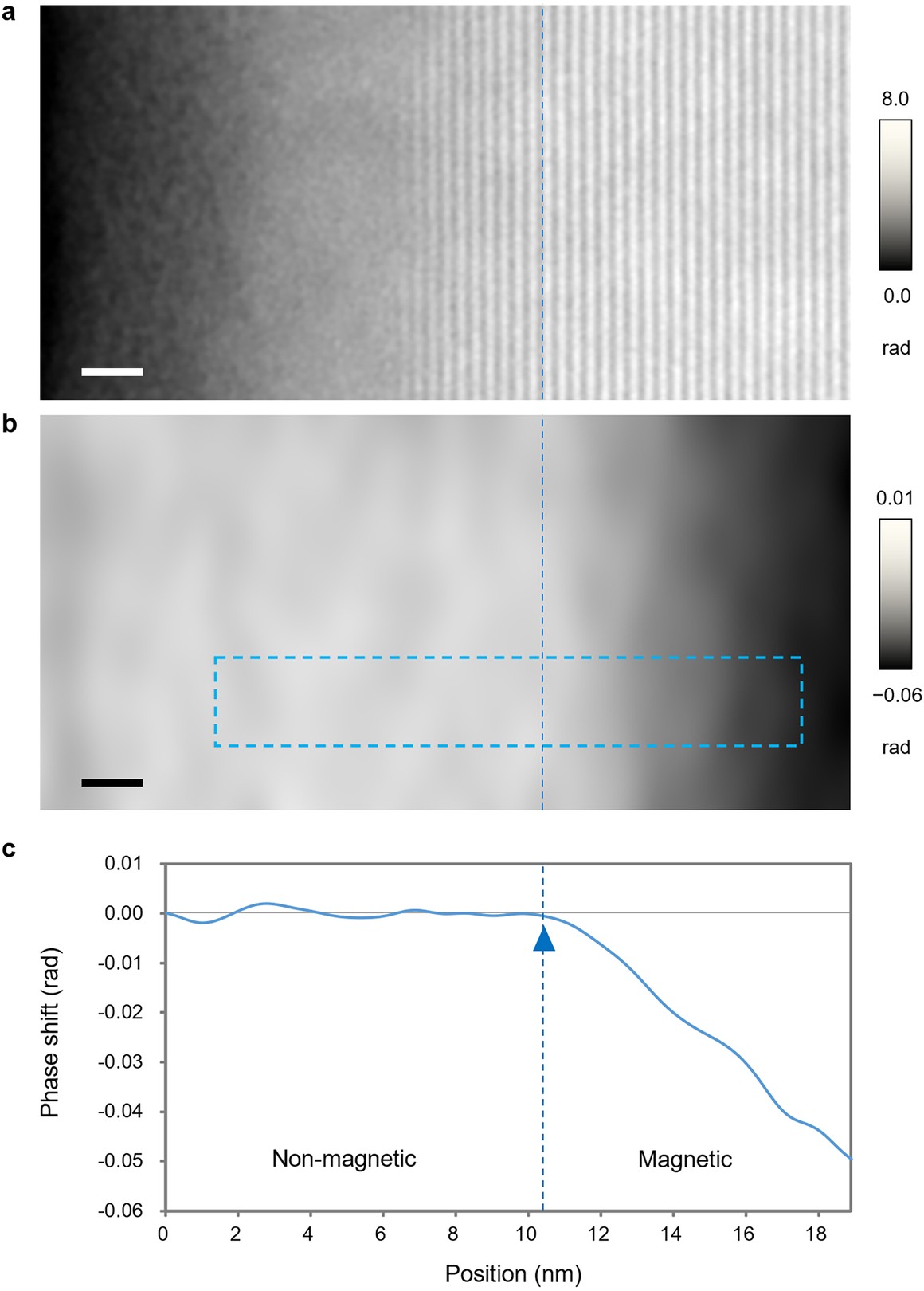

Extended Data Fig. 3: Aberration-corrected single-phase image and low-resolution magnetic phase.
From: Electron holography observation of individual ferrimagnetic lattice planes
a, Aberration-corrected phase image. The lattice image of the (111) plane is clearly seen. The scale bar is 2 nm. b, Low-resolution magnetic phase. c, Line profiles of low-resolution magnetic phase of the area indicated by the dashed light-blue rectangle. The phase slope of magnetic phase indicates [\(\bar{1}\bar{1}\)2] directional magnetization. A non-magnetic area is clearly visible at the edge of the sample.
