Extended Data Fig. 2: Data processing of different hNET datasets.

From: Molecular basis of human noradrenaline transporter reuptake and inhibition

Extended Data Fig. 2

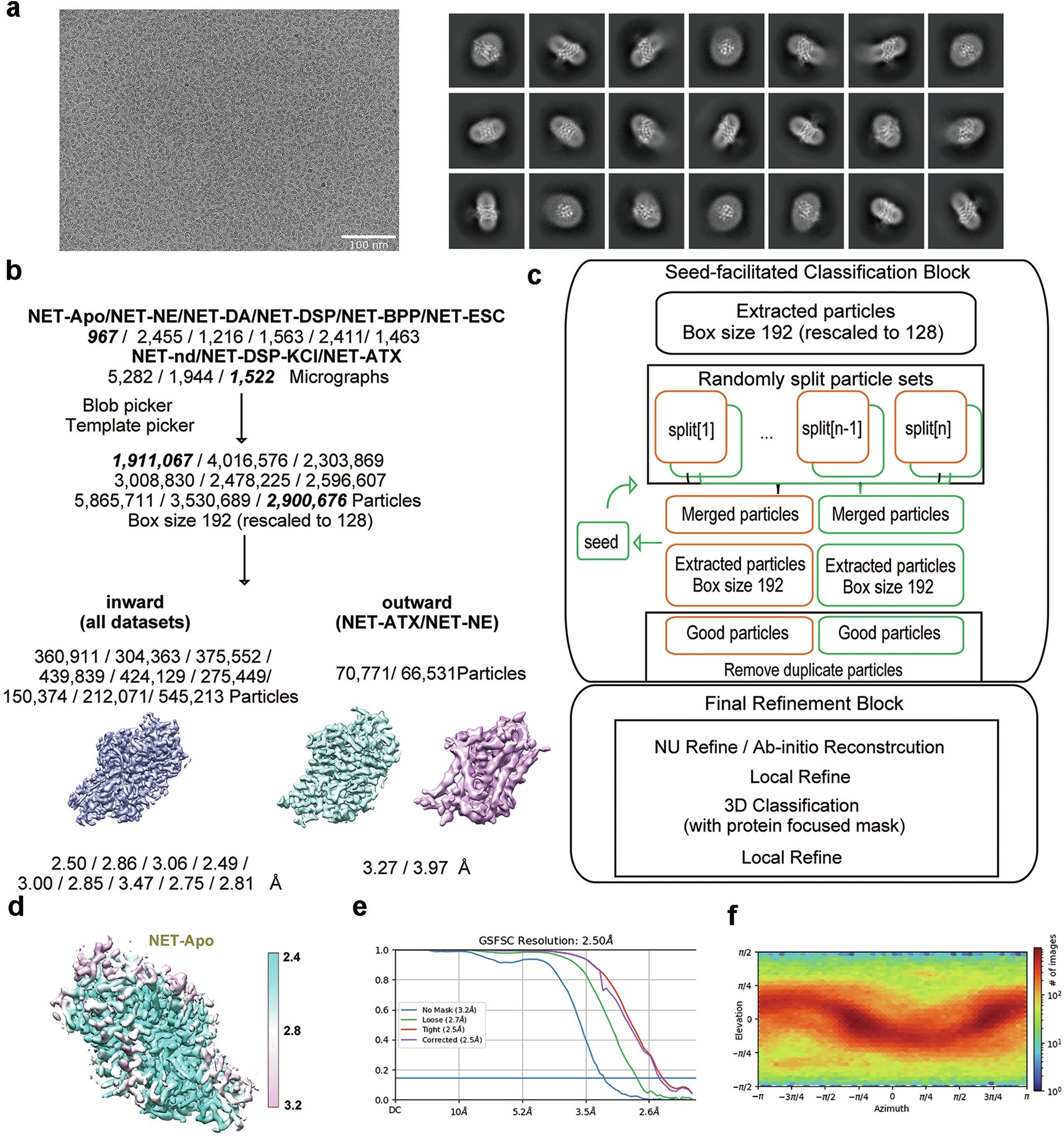

a, Representative micrograph and 2D class averages of NET. The experiment was repeated independently 3 times with similar results. b-c, The flowchart for data processing of NET apo, NET-NE, NET-DA, NET-DSP, NET-BPP, NET-ESC, NET-NE-nd, NET-DSP-KCl, and NET-ATX. d-f, Using NET apo as an example to show the local resolution, gold-standard Fourier shell correlation (FSC) curves from the 3D refinement, and angular distribution of the particles used for the final reconstructions.
