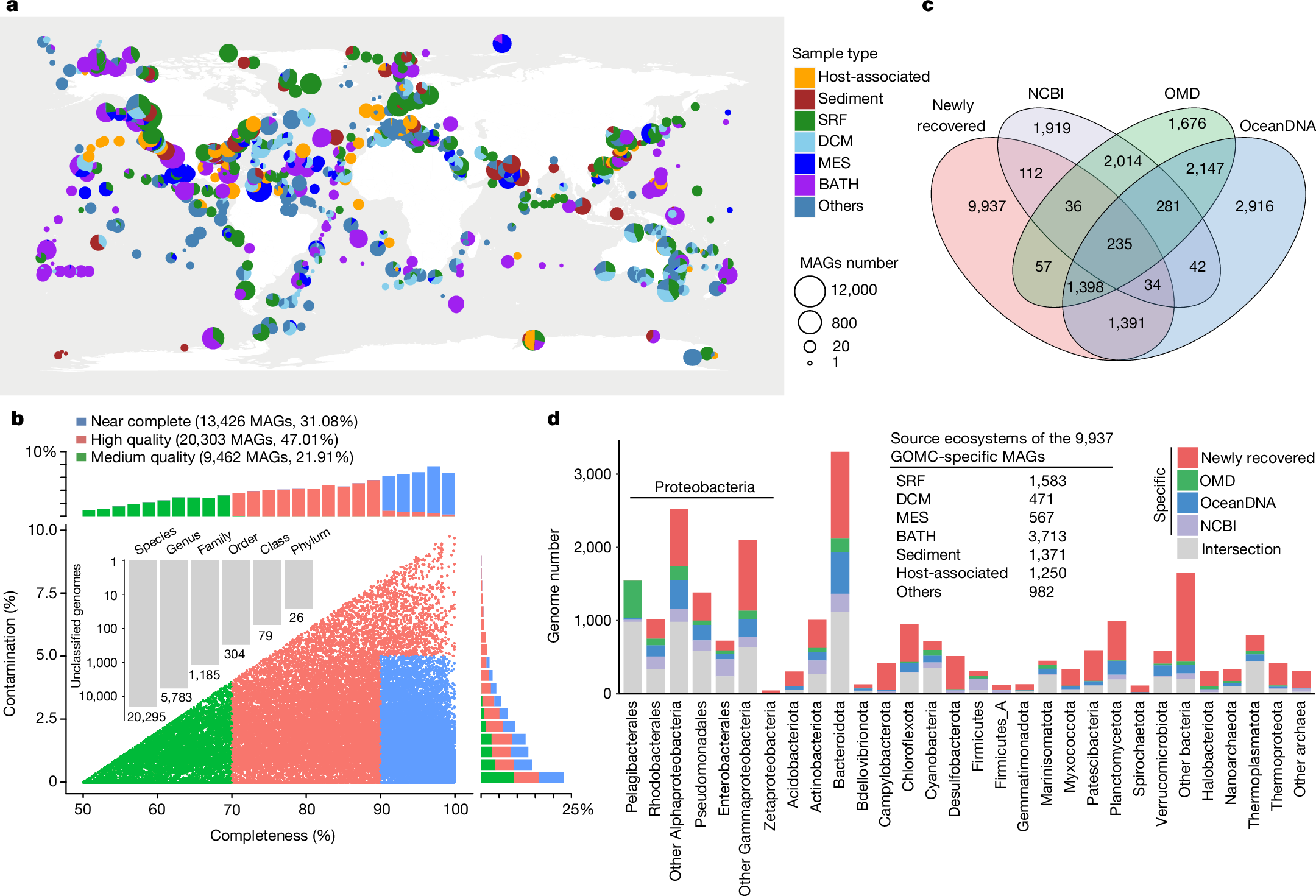

Fig. 1: Geographic and ecosystem distribution of MAGs.
From: Global marine microbial diversity and its potential in bioprospecting
a, Geographic distribution of 43,191 newly recovered MAGs. BATH, bathypelagic; DCM, deep chlorophyll maximum layer; MES, mesopelagic; SRF, surface water. b, The collection of 43,191 MAGs with medium or higher quality that form the basis of this study. The central dot plot displays the distribution of completeness and contamination for all MAGs recovered in this study. The top bar plot indicates the percentage of MAGs within specific completeness ranges, while the right bar plot shows the percentage within specific contamination ranges. The grey bar plot embedded in the center illustrates the number of taxonomically unclassified MAGs across taxonomic ranks. c, A Venn diagram showing the specific or shared species-level genomes among the newly assembled genomes, NCBI, OMD and OceanDNA. d, Contribution of the current study and extant published databases to each bacterial and archaeal phylum. The inset table presents the original ecosystems of the 9,937 specific MAGs in this study.
