Abstract

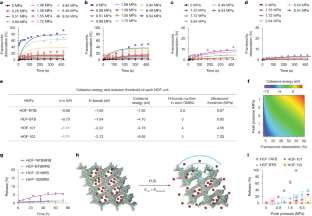

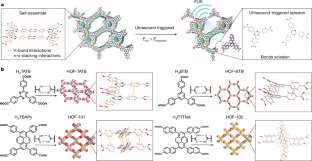

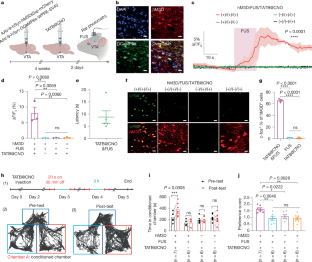

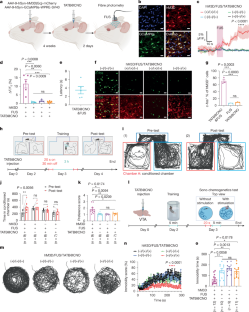

The precise control of mechanochemical activation within deep tissues using non-invasive ultrasound holds profound implications for advancing our understanding of fundamental biomedical sciences and revolutionizing disease treatments1,2,3,4. However, a theory-guided mechanoresponsive materials system with well-defined ultrasound activation has yet to be explored5,6. Here we present the concept of using porous hydrogen-bonded organic frameworks (HOFs) as toolkits for focused ultrasound (FUS) programmably triggered drug activation to control specific cellular events in the deep brain, through on-demand scission of the supramolecular interactions. A theoretical model is developed to potentially visualize the mechanochemical scission and ultrasound mechanics, providing valuable guidelines for the rational design of mechanoresponsive materials to achieve programmable control. To demonstrate the practicality of this approach, we encapsulate the designer drug clozapine N-oxide (CNO) into the optimal HOF nanocrystals for FUS-gated release to activate engineered G-protein-coupled receptors in the ventral tegmental area (VTA) of mice and rats and hence achieve targeted neural circuit modulation even at depth 9 mm with a latency of seconds. This work demonstrates the capability of ultrasound to precisely control molecular interactions and develops ultrasound-programmable HOFs to non-invasively and spatiotemporally control cellular events, thereby facilitating the establishment of precise molecular therapeutic possibilities.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
27,99 € / 30 days
cancel any time
Subscribe to this journal
Receive 51 print issues and online access
199,00 € per year
only 3,90 € per issue
Buy this article
- Purchase on SpringerLink
- Instant access to full article PDF
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
The code used to analyse the data in this study is available from the GitHub repository for this article (https://github.com/kevintang725/ultrasound-programmable-hydrogen-bonded-organic-frameworks-for-sono-chemogenetics). Crystallographic data for the structures in this article have been deposited at the Cambridge Crystallographic Data Centre under deposition no. CCDC 2338302 (HOF-TATB). Copies of the data can be obtained free of charge from https://www.ccdc.cam.ac.uk/structures/. All other data supporting the findings of this study are available in the article and its Supplementary information and Supplementary Data. Source data are provided with this paper.
References
Huo, S. et al. Mechanochemical bond scission for the activation of drugs. Nat. Chem. 13, 131–139 (2021).
Chen, L., Nixon, R. & De Bo, G. Force-controlled release of small molecules with a rotaxane actuator. Nature 628, 320–325 (2024).
Rwei, A. Y. et al. Ultrasound-triggered local anaesthesia. Nat. Biomed. Eng. 1, 644–653 (2017).
Wang, J. B., Aryal, M., Zhong, Q., Vyas, D. B. & Airan, R. D. Noninvasive ultrasonic drug uncaging maps whole-brain functional networks. Neuron 100, 728–738.e7 (2018).
Boulatov, R. The liberating force of ultrasound. Nat. Chem. 13, 112–114 (2021).
Suslick, K. S. Sonochemistry. Science 247, 1439–1445 (1990).
Mirvakili, S. M. & Langer, R. Wireless on-demand drug delivery. Nat. Electron. 4, 464–477 (2021).
Sebesta, C. et al. Subsecond multichannel magnetic control of select neural circuits in freely moving flies. Nat. Mater. 21, 951–958 (2022).
Bhansali, D. et al. Nanotechnology for pain management: current and future therapeutic interventions. Nano Today 39, 101223 (2021).
Duan, X. et al. Smart pH-sensitive and temporal-controlled polymeric micelles for effective combination therapy of doxorubicin and disulfiram. ACS Nano 7, 5858–5869 (2013).
Deisseroth, K. Optogenetics: 10 years of microbial opsins in neuroscience. Nat. Neurosci. 18, 1213–1225 (2015).
Bar-Zion, A. et al. Acoustically triggered mechanotherapy using genetically encoded gas vesicles. Nat. Nanotechnol. 16, 1403–1412 (2021).
Wang, C. et al. Ultrasound-responsive low-dose doxorubicin liposomes trigger mitochondrial DNA release and activate cGAS-STING-mediated antitumour immunity. Nat. Commun. 14, 3877 (2023).
Yao, Y. et al. Remote control of mechanochemical reactions under physiological conditions using biocompatible focused ultrasound. Proc. Natl Acad. Sci. USA 120, e2309822120 (2023).
Airan, R. D. et al. Noninvasive targeted transcranial neuromodulation via focused ultrasound gated drug release from nanoemulsions. Nano Lett. 17, 652–659 (2017).
Chen, H. & Hwang, J. H. Ultrasound-targeted microbubble destruction for chemotherapeutic drug delivery to solid tumors. J. Ther. Ultrasound 1, 10 (2013).
Kiessling, F. et al. Recent advances in molecular, multimodal and theranostic ultrasound imaging. Adv. Drug Deliv. Rev. 72, 15–27 (2014).
Shi, Z., Wu, J., Song, Q., Göstl, R. & Herrmann, A. Toward drug release using polymer mechanochemical disulfide scission. J. Am. Chem. Soc. 142, 14725–14732 (2020).
Cravotto, G., Gaudino, E. C. & Cintas, P. On the mechanochemical activation by ultrasound. Chem. Soc. Rev. 42, 7521–7534 (2013).
Huo, S. et al. Mechano-nanoswitches for ultrasound-controlled drug activation. Adv. Sci. 9, e2104696 (2022).
Ghanem, M. A. et al. The role of polymer mechanochemistry in responsive materials and additive manufacturing. Nat. Rev. Mater. 6, 84–98 (2021).
Akbulatov, S. et al. Experimentally realized mechanochemistry distinct from force-accelerated scission of loaded bonds. Science 357, 299–303 (2017).
Li, J., Nagamani, C. & Moore, J. S. Polymer mechanochemistry: from destructive to productive. Acc. Chem. Res. 48, 2181–2190 (2015).
Chen, Y., Mellot, G., van Luijk, D., Creton, C. & Sijbesma, R. P. Mechanochemical tools for polymer materials. Chem. Soc. Rev. 50, 4100–4140 (2021).
Wu, M.-X. & Yang, Y.-W. Metal–organic framework (MOF)-based drug/cargo delivery and cancer therapy. Adv. Mater. 29, 1606134 (2017).
Bhunia, S., Deo, K. A. & Gaharwar, A. K. 2D covalent organic frameworks for biomedical applications. Adv. Funct. Mater. 30, 2002046 (2020).
Lin, R.-B. et al. Multifunctional porous hydrogen-bonded organic framework materials. Chem. Soc. Rev. 48, 1362–1389 (2019).
Li, Y.-L. et al. Record complexity in the polycatenation of three porous hydrogen-bonded organic frameworks with stepwise adsorption behaviors. J. Am. Chem. Soc. 142, 7218–7224 (2020).
Wang, B. et al. A novel mesoporous hydrogen-bonded organic framework with high porosity and stability. Chem. Commun. 56, 66–69 (2019).
Yin, Q. et al. An ultra-robust and crystalline redeemable hydrogen-bonded organic framework for synergistic chemo-photodynamic therapy. Angew. Chem. 130, 7817–7822 (2018).
Zentner, C. A. et al. High surface area and Z′ in a thermally stable 8-fold polycatenated hydrogen-bonded framework. Chem. Commun. 51, 11642–11645 (2015).
Boesmans, W., Hao, M. M. & Vanden Berghe, P. Optogenetic and chemogenetic techniques for neurogastroenterology. Nat. Rev. Gastroenterol. Hepatol. 15, 21–38 (2018).
Gomez, J. L. et al. Chemogenetics revealed: DREADD occupancy and activation via converted clozapine. Science 357, 503–507 (2017).
Alexander, G. M. et al. Remote control of neuronal activity in transgenic mice expressing evolved G protein-coupled receptors. Neuron 63, 27–39 (2009).
Guettier, J.-M. et al. A chemical-genetic approach to study G protein regulation of β cell function in vivo. Proc. Natl Acad. Sci. USA 106, 19197–19202 (2009).
Rao, S. et al. Remotely controlled chemomagnetic modulation of targeted neural circuits. Nat. Nanotechnol. 14, 967–973 (2019).
Tye, K. M. et al. Dopamine neurons modulate neural encoding and expression of depression-related behaviour. Nature 493, 537–541 (2013).
Meng, Y., Hynynen, K. & Lipsman, N. Applications of focused ultrasound in the brain: from thermoablation to drug delivery. Nat. Rev. Neurol. 17, 7–22 (2021).
Wang, W. et al. Ultrasound-triggered in situ photon emission for noninvasive optogenetics. J. Am. Chem. Soc. 145, 1097–1107 (2023).
Duque, M. et al. Sonogenetic control of mammalian cells using exogenous Transient Receptor Potential A1 channels. Nat. Commun. 13, 600 (2022).
Matsubara, T. et al. Author Correction: Remote control of neural function by X-ray-induced scintillation. Nat. Commun. 13, 1950 (2022).
Wu, X. et al. Tether-free photothermal deep-brain stimulation in freely behaving mice via wide-field illumination in the near-infrared-II window. Nat. Biomed. Eng. 6, 754–770 (2022).
Pawley, G. S. Unit-cell refinement from powder diffraction scans. J. Appl. Crystallogr. 14, 357–361 (1981).
Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 71, 3–8 (2015).
Sheldrick, G. M. SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A 71, 3–8 (2015).
Hübschle, C. B., Sheldrick, G. M. & Dittrich, B. ShelXle: a Qt graphical user interface for SHELXL. J. Appl. Crystallogr. 44, 1281–1284 (2011).
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42, 339–341 (2009).
Kresse, G. & Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B 47, 558–561 (1993).
Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775 (1999).
Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953–17979 (1994).
Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem. 27, 1787–1799 (2006).
Sundararaman, R. & Schwarz, K. Evaluating continuum solvation models for the electrode-electrolyte interface: challenges and strategies for improvement. J. Chem. Phys. 146, 084111 (2017).
Witten, I. B. et al. Recombinase-driver rat lines: tools, techniques, and optogenetic application to dopamine-mediated reinforcement. Neuron 72, 721–733 (2011).
Zan, G.-Y. et al. Amygdalar κ-opioid receptor-dependent upregulating glutamate transporter 1 mediates depressive-like behaviors of opioid abstinence. Cell Rep. 37, 109913 (2021).
Can, A. et al. The mouse forced swim test. J. Vis. Exp (59), 3638 (2012).
Airan, R. D., Thompson, K. R., Fenno, L. E., Bernstein, H. & Deisseroth, K. Temporally precise in vivo control of intracellular signalling. Nature 458, 1025–1029 (2009).
Acknowledgements
TEM image acquisition was performed with the help of M. Mikesh at the Center for Biomedical Research Support Microscopy and Imaging Facility at UT Austin (RRID# SCR_021756). H.W. acknowledges funding support from the National Science Foundation (NSF) CAREER award (2340964), NIH Maximizing Investigators’ Research Award (National Institute of General Medical Sciences 1R35GM147408), the University of Texas at Austin Startup Fund, Robert A. Welch Foundation Grant (no. F-2084-20210327) and Craig H. Neilsen Foundation Pilot Research Grant. We acknowledge BioRender.com for the figures drawing.
Author information
Authors and Affiliations
Contributions
W.W. and H.W. designed the project. W.W. led the materials characterization, cell tests, animal tests and their analysis. Y.S., Y.X. and B.C. designed, synthesized and characterized the HOF materials. N.H., W.Z. and D.W.M. performed the electron diffraction tests and crystal analysis. W.H. helped with high-performance liquid chromatography tests. W.C. and G.H. conducted molecular simulation computing and discussed the data. K.W.K.T., I.P., X.L. and X.S. helped W.W. to build animal models and animal behaviour tests. J.J., J.-C.H., A.R.L. and B.A. helped with animal behaviour data analysis and immunohistology tests. B.S., N.B.S. and T.P. conducted the blood–brain barrier opening tests. All of the co-authors contributed to the writing of the manuscript. B.C. and H.W. supervised the project.
Corresponding authors
Ethics declarations
Competing interests
H.W., W.W., Y.S. and B.C. declare that a patent application (PCT/US2024/042314) relating to this work has been filed. The other authors declare no competing interests.
Peer review
Peer review information
Nature thanks Andrew P. Goodwin and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data figures and tables
Extended Data Fig. 1 Morphology, size and crystal structure of all four different HOF nanocrystals that were characterized.
a–d, TEM images and hydrodynamic size distribution measured by DLS of HOF-TATB nanocrystals (a), HOF-BTB nanocrystals (b), HOF-101 nanocrystals (c) and HOF-102 nanocrystals (d). e–h, The X-ray diffraction tests of HOF nanocrystals: HOF-TATB (e), HOF-BTB (f), HOF-101 (g), HOF-102 (h). n = 3 independent experiments for each sample.
Extended Data Fig. 2 Topology analysis of HOF-TATB.
a, Structures of two different hydrogen-bonding motifs and their simplified forms. b, 3D structure of the interpenetrated network in HOF-TATB and its simplified 3,4-connected topology viewed from the c axis. c, Perspective view of a simplified single net. d,e, Calculated pore surface of 1D pore channel of HOF-TATB: view along a axis (d); view along b axis (e). (Connolly surface with pore radius of 1.2 Å). f–h, Crystal structure scheme of HOF-TATB: view along a axis (f); view along b axis (g); view along c axis (h).
Extended Data Fig. 3 Porosity characterization of the four different nanocrystals.
a, Single-component sorption isotherms of nitrogen at 77 K of HOF-TATB, indicating the framework flexibility. b, Single-component sorption isotherms of CO2 at 195 K of HOF-BTB (no nitrogen adsorption is observed at 77 K), indicating framework flexibility. c, Single-component sorption isotherms of nitrogen at 77 K of HOF-101. d, Single-component sorption isotherms of nitrogen at 77 K of HOF-102. n = 3 independent experiments for each sample.
Extended Data Fig. 4 Thermal dissociation tests of HOF nanocrystals.
a, HOF-TATB, b, HOF-BTB, c, HOF-101, d, HOF-102. The HOF nanocrystals were incubated at different temperatures for 5 min. After that, the HOFs solution was extracted and centrifuged and the supernatant was used to perform UV-Vis tests for HOFs dissociation determination. The thermal dissociation occurred around 60 °C. Only around a 2% increase was observed at HOF-TATB and HOF-BTB and no thermal dissociation was observed in HOF-101 and HOF-102, at temperature 100 °C. Mean ± s.e.m., n = 3 independent experiments for each sample.
Extended Data Fig. 5 Theoretical modelling of mechanochemical scission in HOFs.
a, A linear model fits the relationship between the ultrasound peak pressure and the ln(k) of HOFs when the peak pressure is less than 1.55 MPa; n = 3 independent experiments for each sample. b, A linear model fits the relationship between the ultrasound peak pressure and the ln(k) of HOFs when the peak pressure is up to 1.55 MPa. n = 3 independent experiments for each sample. c, A linear model qualitatively fits the relationship between the Ecohesive of HOFs and the ln(k) at fixed EUS. With 1.72, 3.94, 6.49 and 8.04 MPa peak pressure, ln(k) of HOF-TATB, HOF-BTB, HOF-101 and HOF-102 correlate to their cohesion energy linearly, respectively. n = 3 independent experiments for each sample. d, When ln(k) is held constant, a linear correlation is observed between the ultrasound peak pressure and the cohesive energy of HOFs. To achieve a targeted 10%, 20%, 30%, 40%, 50% and 60% dissociation of HOFs at a fixed ultrasound peak pressure, it is possible to calculate the corresponding Ecohesive of HOFs using the established linear relationship.
Extended Data Fig. 6 Ultrasound-triggered drug release from different HOF nanocrystals.
a, HOF-TATB. b, HOF-BTB. c, HOF-101. d, HOF-102. The fluorescence dye RB was first loaded into the HOF nanocrystals. After that, the ultrasound irradiated the RB-loaded nanocrystals with different power densities. At fixed time points, the solution was taken out and centrifuged. The released RB concentration was determined through UV-Vis from the supernatant. Mean ± s.e.m., n = 3 independent experiments for each sample. e–h, Ultrasound-triggered drug release from HOF-TATB. The fluorescence dye RB was first loaded into the HOF-TATB nanocrystals (TATB@RB). After that, the TATB@RB nanocrystals were irradiated by the ultrasound with different power densities, including 0.51 MPa (e), 0.89 MPa (f) and 1.08 MPa (g), and the quantification of drug release percentage without ultrasound and with ultrasound for 90 s (h). Mean ± s.e.m., n ≥ 3 independent samples. One-way ANOVA and Dunnett’s multiple comparison tests (P ≥ 0.05 (ns), *0.01 ≤ P < 0.05, **0.001 ≤ P < 0.01, ****P < 0.0001). Mean ± s.e.m., n = 3 independent experiments for each sample.
Extended Data Fig. 7 Ultrasound-triggered release of various drugs.
a, Deschloroclozapine. b, Dopamine. c, Procaine. d, CNO from HOF-TATB at 1.5 MHz, 1.55 MPa (mean ± s.e.m., n = 3 independent samples).
Extended Data Fig. 8 Biosafety and biocompatibility evaluation of UltraHOF.
a, The cell viability tests of HOF-TATB nanocrystals in human embryonic kidney 293 (HEK-293T) cells. Mean ± s.e.m.; at least three independent tests (n = 5). The hemolysis tests of HOF-TATB nanocrystals: photograph (b) and hemolysis statistical analysis (c); mean ± s.e.m.; at least three independent tests (n ≥ 3). d, In vivo biosafety evaluation by haematoxylin and eosin staining after sono-chemogenetics. Scale bar, 100 μm. n = 3 independent experiments for each sample. e, In vivo biocompatibility evaluation of the sono-chemogenetics by means of determining microglia (Iba1) activation. Statistical analysis of the Iba1 intensity. Mean ± s.e.m., n ≥ 3 mice in each group. Two-way ANOVA and Tukey’s multiple comparison tests. f, In vivo biocompatibility evaluation of the sono-chemogenetics by means of determining neuron apoptosis (caspase-3). Statistical analysis of the caspase-3 intensity. Mean ± s.e.m., n ≥ 3 mice in each group. Two-way ANOVA and Tukey’s multiple comparison tests. g, In vivo biocompatibility evaluation of the sono-chemogenetics by determining astrocytes (GFAP) activation. Mean ± s.e.m., n ≥ 3 mice in each group. Two-way ANOVA and Tukey’s multiple comparison tests. Statistical significance: P ≥ 0.05 (ns).
Extended Data Fig. 9 Ultrasound power delivery in the tissue and biosafety evaluation.
a, To measure ultrasound power transfer efficiency through tissue, pork skin of varying depths was placed on a 1.5-MHz, 2.40-MPa FUS transducer. The results showed that 1.5-MHz ultrasound could penetrate up to 20 mm, with a power transfer efficiency of 37% at 10 mm depth; mean ± s.e.m.; n = 3. b, The in vivo ultrasound power transfer in the mouse head with FUS focus length of 5 mm. The ultrasound peak pressure heat map in the mouse head shows that around 0.90 MPa was delivered to the mouse VTA when 1.40 MPa primary ultrasound peak pressure was used. c, Ultrasound-induced blood-brain barrier opening evaluation through Evans blue staining. (i) Brains from mice injected with microbubbles and given 20 s ultrasound at 1.0 MPa (left) and 0.75 MPa (right). (ii) Brains from mice without microbubbles given 20 s ultrasound at 1.0 MPa. (iii) Brains from mice without microbubbles given 20 s ultrasound at 1.5 MPa. Red circles show ultrasound-treated areas. d, The evaluation of ultrasound-induced thermal effects at the focus. Real-time temperature detection was conducted at the mice VTA during FUS stimulation (1.5 MHz, 1.55 MPa, duration 20 s). No substantial temperature changes were observed during the initial 10 s of ultrasound exposure, with only a slight increase of approximately 1.25 °C detected after the 20 s stimulus. Mean ± s.e.m., n = 3 independent experiments for each sample. e, The in vivo ultrasound power transfer in rat heads with FUS focus length of 10 mm. The ultrasound peak pressure heat map in the rat head shows that around 1.19–1.39 MPa was delivered to the rat VTA when 2.45 MPa primary ultrasound peak pressure was used.
Supplementary information
Supplementary Information
This file contains Supplementary Methods, Supplementary Figs. 1–20, Supplementary Tables 1–10 and Supplementary References
