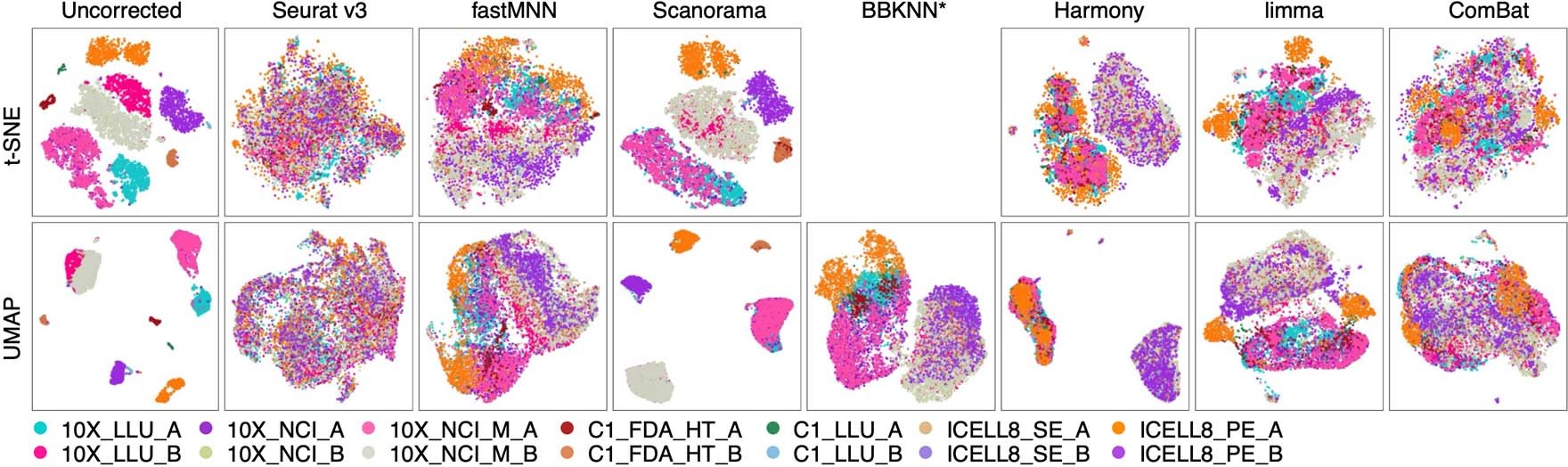

Extended Data Fig. 7: Batch-effect correction evaluating clusterability using 14 scRNA-seq datasets without spiked-in mixtures.
From: A multicenter study benchmarking single-cell RNA sequencing technologies using reference samples
t-SNE plots and UMAPs showing batch-effect corrections performed by seven methods using 14 non-mixture scRNA-seq datasets across different platforms and sites. Six spiked-in mixture scRNA-seq datasets (10X_LLU_Mix10, 10X_NCI_Mix5, 10X_NCI_Mix5_F, 10X_NCI_M_Mix5, 10X_NCI_M_Mix5_F, and 10X_NCI_M_Mix5_F2) were removed from the 20 datasets in Scenario 1 for batch-effect correction evaluation. The fourteen non-mixture scRNA-seq datasets are from both breast cancer cells (10X_LLU_A, 10X_NCI_A, 10X_NCI_M_A, C1_FDA_HT_A, C1_LLU_A, ICELL8_SE_A, and ICELL8_PE_A) and B-lymphocytes (10X_LLU_B, 10X_NCI_B, 10X_NCI_M_B, C1_FDA_HT_B, C1_LLU_B, ICELL8_SE_B, and ICELL8_PE_B). Datasets from 10x were down-sampled to 1200 cells per dataset. *Note, for BBKNN, only UMAP was available and shown. Batch correction methods included Seurat v3.1, fastMNN (SeuratWrappers v0.1.0), Scanorama v1.4, BBKNN v1.3.5, Harmony v0.99.9, limma v3.40.4, and Combat (sva v3.32.1). All the 10x data were preprocessed using Cell Ranger version 3.1.
