Supplementary Figure 6: Increased secretion of inflammatory cytokines by TIM-3-deficient leukocytes. | Nature Genetics

Supplementary Figure 6: Increased secretion of inflammatory cytokines by TIM-3-deficient leukocytes.

From: Germline HAVCR2 mutations altering TIM-3 characterize subcutaneous panniculitis-like T cell lymphomas with hemophagocytic lymphohistiocytic syndrome

Supplementary Figure 6

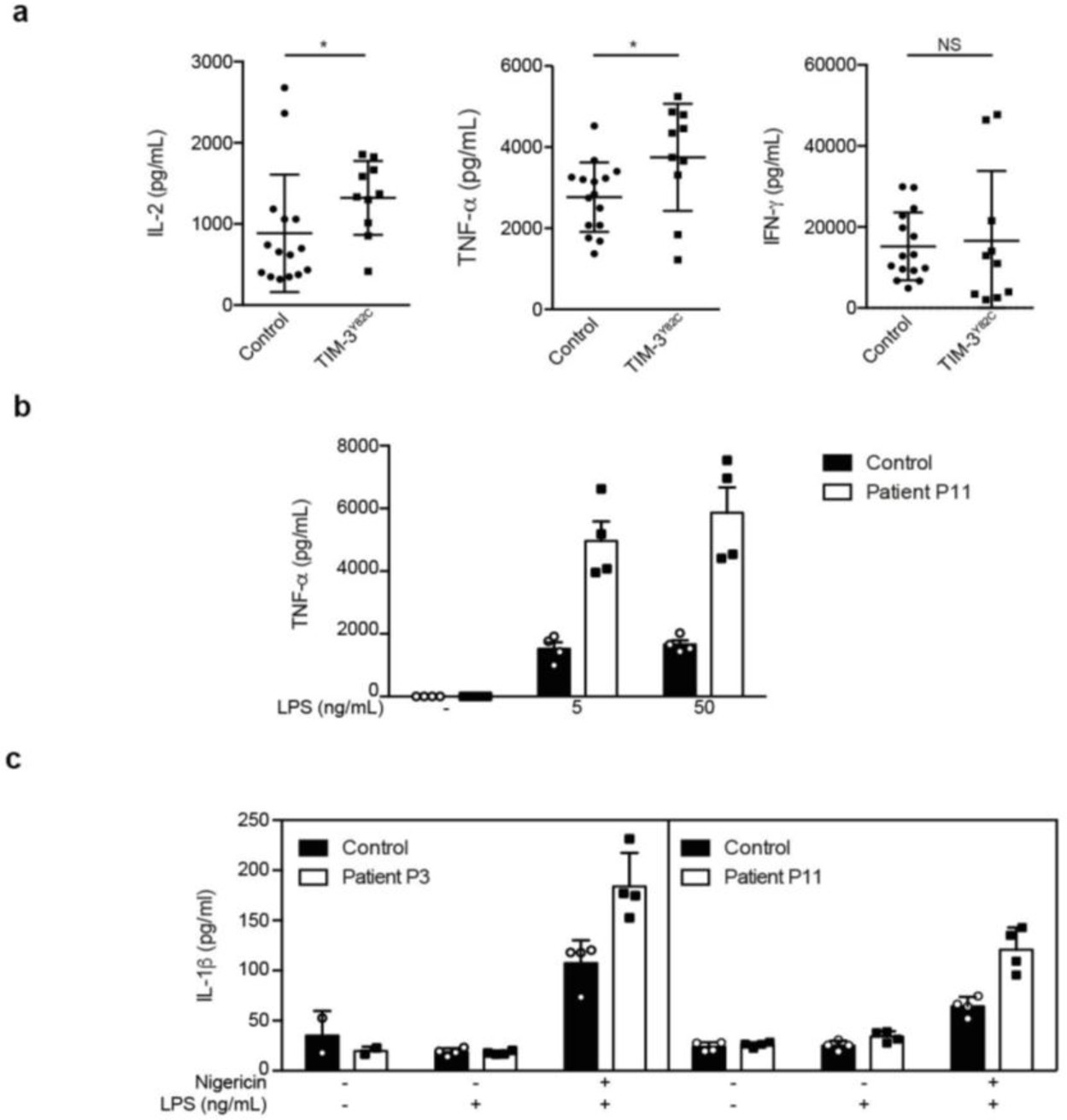

(a), Cytokine production by T lymphoblasts from Y82C TIM-3 patients as compared to controls. TNF-α, IL-2 and IFN-γ were quantified by CBA (*P < 0.05). Data are means +/− s.d. from three different patients (P3, P4, P11). Data represent the results of different independent experiments performed with different biological samples (cell cultures from cells obtained at different time points) obtained from different controls and three different TIM-3 Y82C patients. An unpaired t test was used to determine statistical significance between control (n = 15) and Y82C (n = 10) samples. b,c, Increased TNF-α production (b) and IL-1β production (c) by macrophages from patients (P3 and P11) with Y82C TIM-3, as compared to wild-type TIM-3 controls, in response to TLR4 (LPS) and NLRP3 (nigericin) activation (as done in Fig. 4). Graphs represent means +/− s.e.m. from two independent experiments in duplicate (*P < 0.05).
