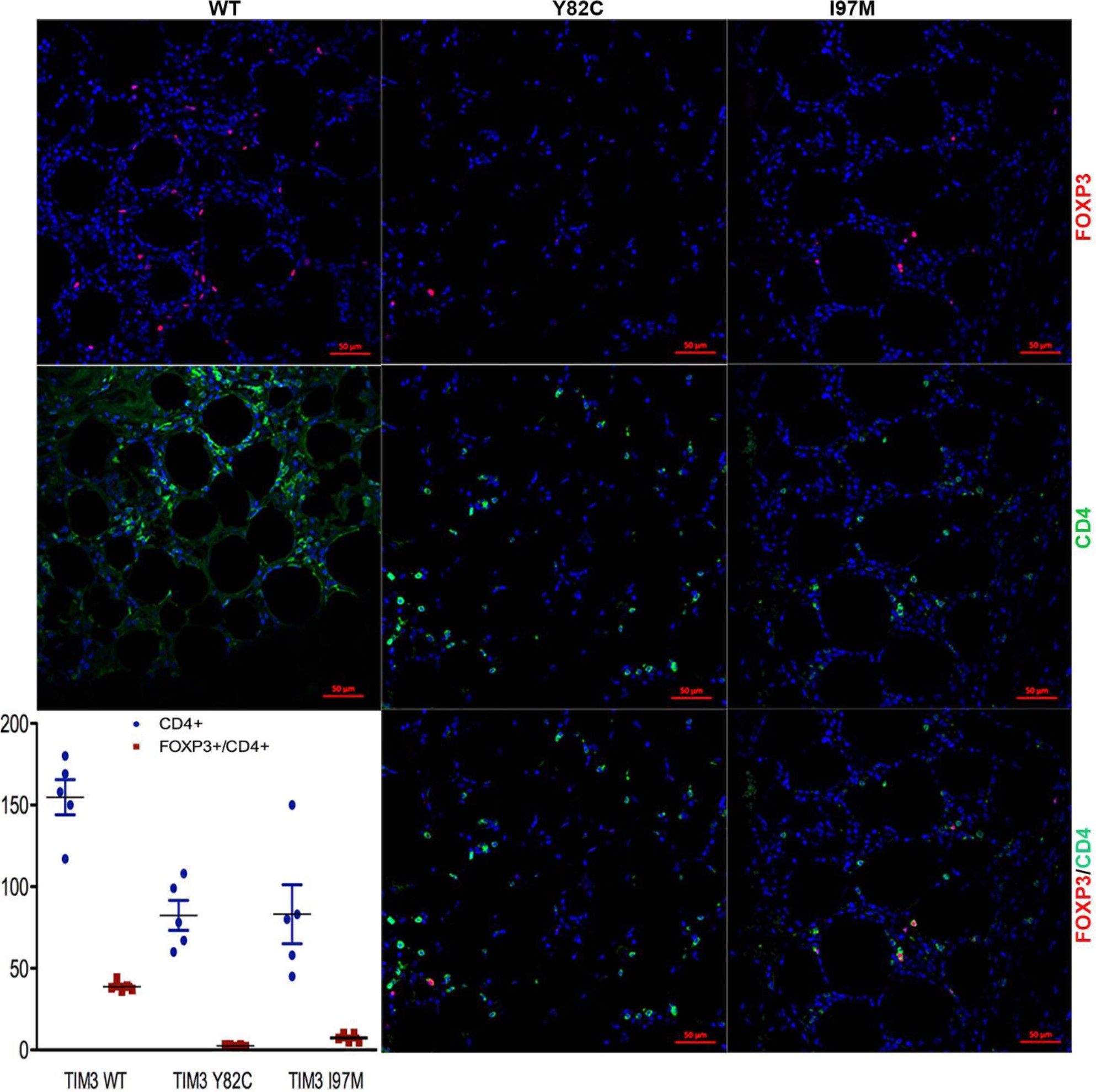

Supplementary Figure 7: FOXP3⁺CD4⁺ T_reg cells are significantly decreased in panniculitis from TIM-3-mutant (Y82C, I97M) SPTCL as compared to TIM-3-wild-type SPTCL.

Immunofluorescence using anti-CD4 and anti-FOXP3 antibodies was performed on consecutive slides from a wild-type (WT) SPTCL sample for TIM-3 (left) or the same slide for Y82C (middle) and I97M (right) TIM-3-mutant SPTCL samples. Cells positive for FOXP3 and CD4 staining were counted using Fiji software, and graphs represent means +/− s.e.m. for CD4⁺ and FOXP3⁺CD4⁺ cells from five different fields (lower left). A significantly decreased number of CD4⁺ and FOXP3⁺CD4⁺ cells in TIM-3-mutant SPTCL was observed when comparing TIM-3-mutant to TIM-3-wild-type SPTCL (P < 0.001, one-way ANOVA). Representative images mounted using Photoshop are shown.
