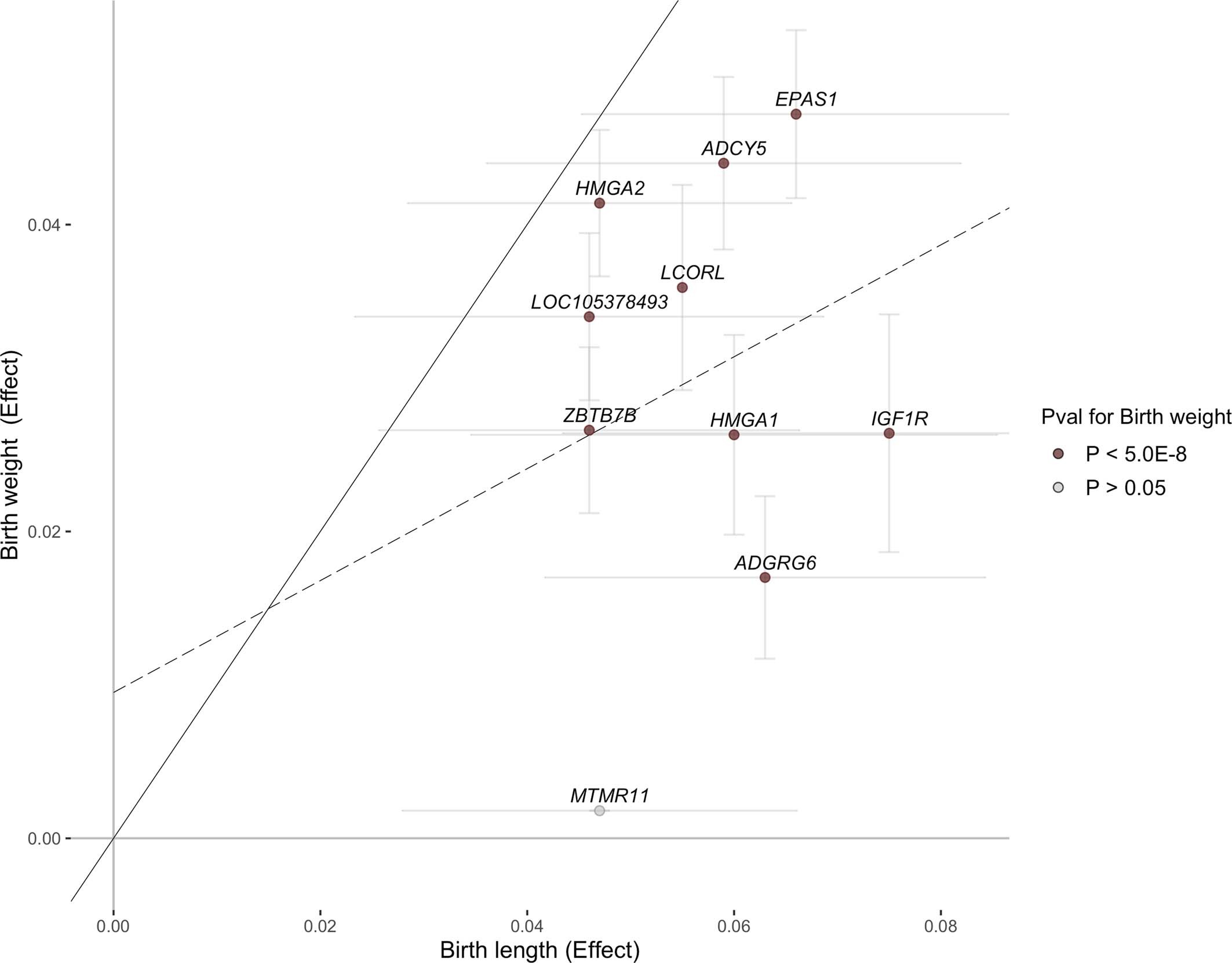

Extended Data Fig. 2: Sequence variants associating with birth length and their effects on birth weight and birth length.
From: Distinction between the effects of parental and fetal genomes on fetal growth
The figure shows effect estimates for birth weight and birth length, from linear regression of trait values on genotype counts, for sequence variants associating with birth length. Error bars, shown for sequence variants with P < 5.1 × 10−4, represent 95% confidence intervals for the estimates. Only one of the 10 birth length variants (within MTRMR11) does not also associate with birth weight. Effects are shown for the birth length increasing allele based on the birth length meta-analysis (n = 154,000). Variants are labelled with their nearest gene. The dashed grey line represents results from a simple linear regression using MAF (1 - MAF) as weights and the solid grey line indicates the reference line with slope = 1.
