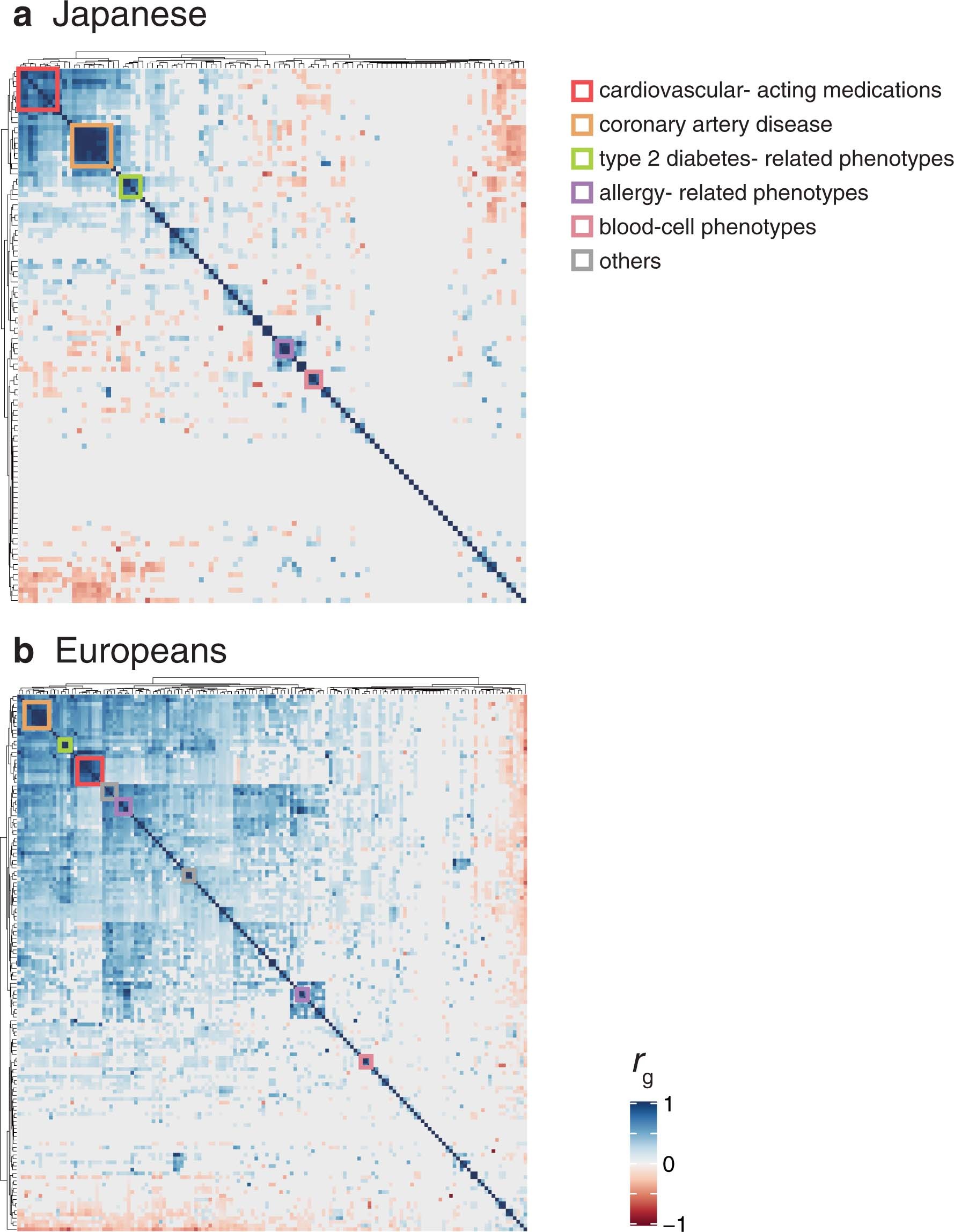

Extended Data Fig. 6: Genetic correlation matrices across populations.
From: A cross-population atlas of genetic associations for 220 human phenotypes
The matrices describe pairwise genetic correlation rg in Japanese GWAS (a; n = 5,565) and in European GWAS (b; n = 10,878), which was estimated by bivariate LD score regression. A color of the cells indicates the value of rg as shown in a color scale at the bottom. The traits (rows and columns) were hierarchically clustered by hclust library in R, and trait domains are displayed as colored boxes (see Methods).
