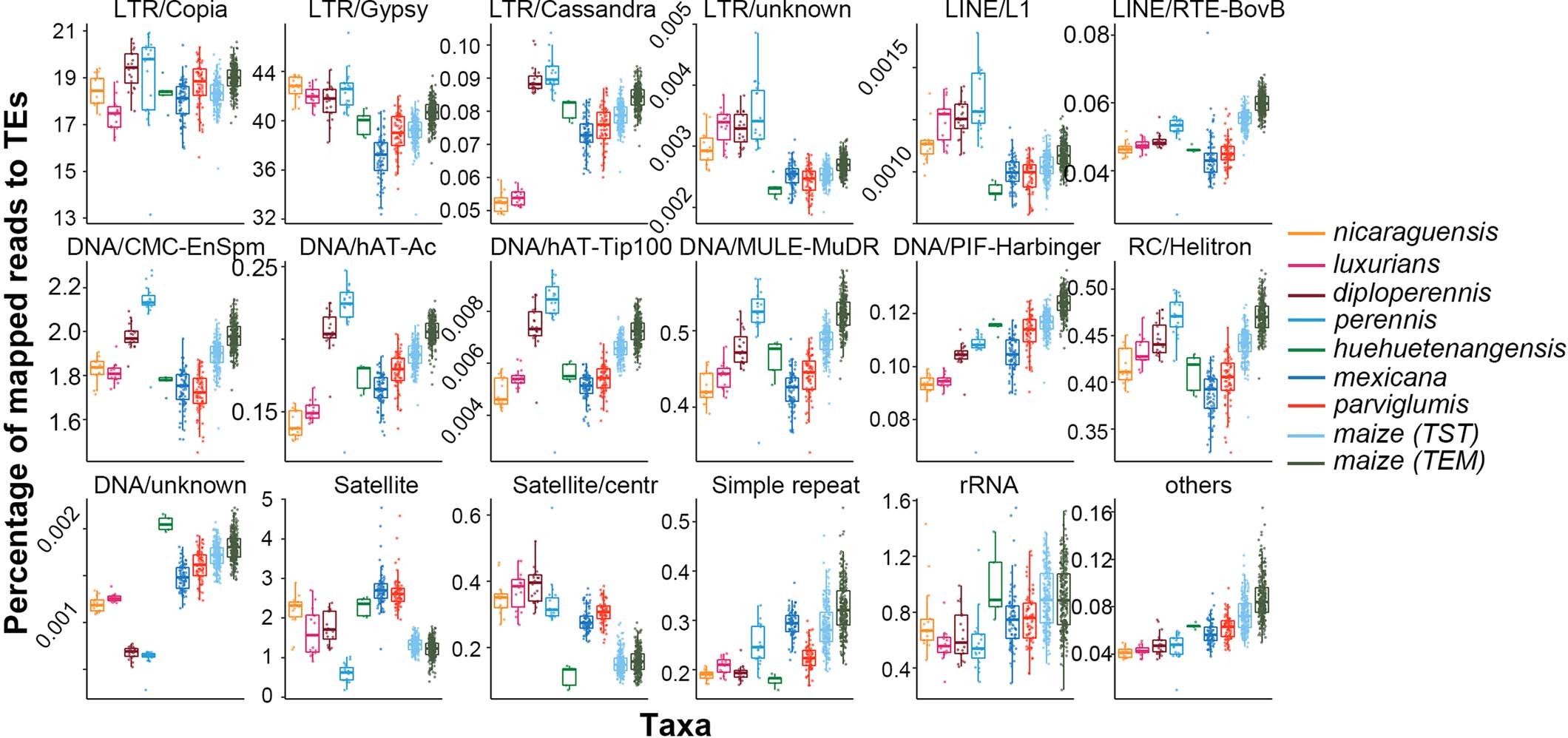

Extended Data Fig. 4: Repeat comparison of Zea.
From: Genome sequencing reveals evidence of adaptive variation in the genus Zea
Boxplot of reads mapped to different repeat classes across the samples in different taxa. Center lines in the boxplot indicate the median, edges represent the 25th and 75th percentiles, whiskers further extend by ±1.5 times the interquartile range from the limits of each box. Each point shows the percentage of mapped reads to different transposon classes in each individual. nicaraguensis (n = 14), luxurians (n = 14), diploperennis (n = 20), perennis (n = 19), huehuetenangensis (n = 5), mexicana (n = 81), parviglumis (n = 70), TST (n = 210) and TEM (n = 280).
