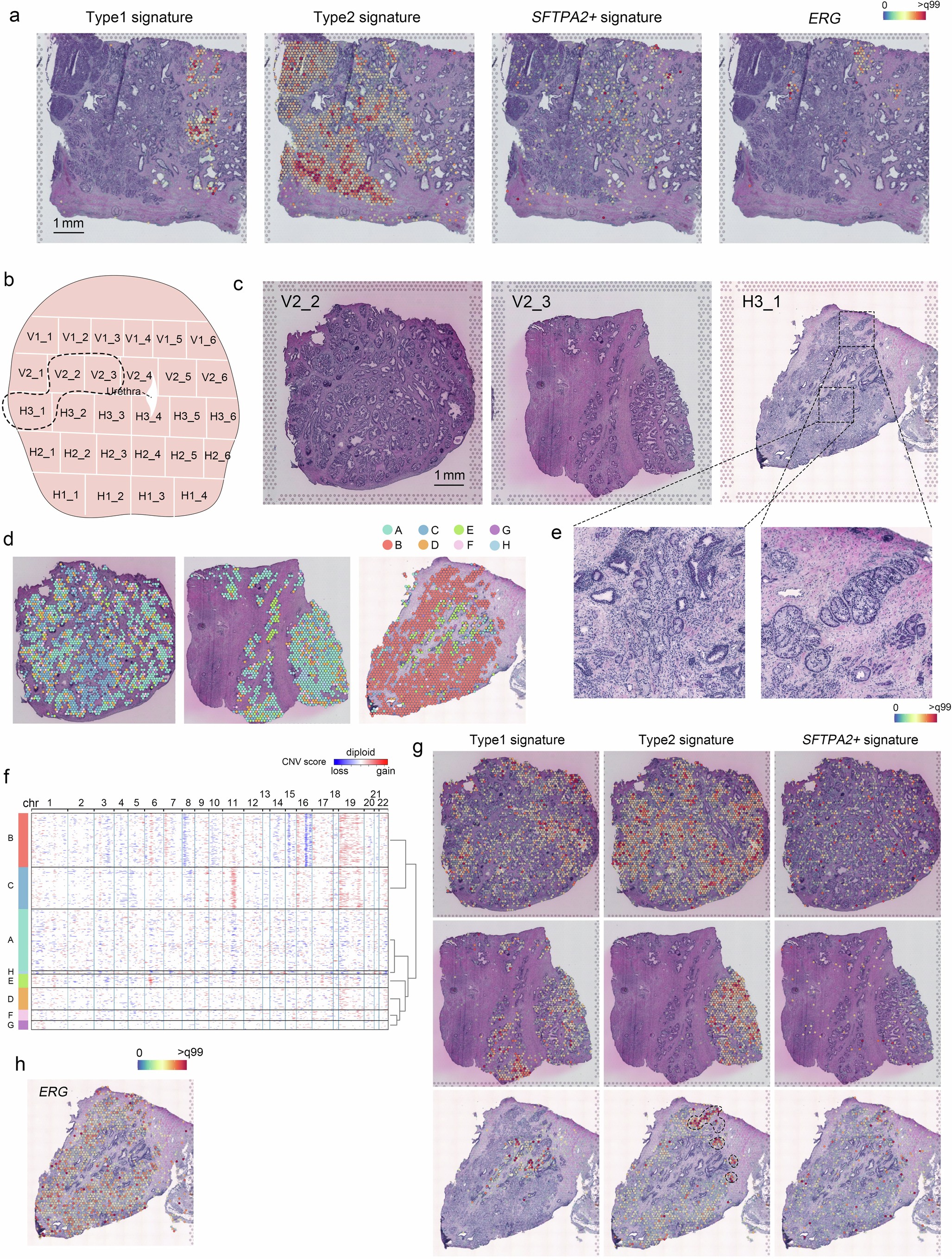

Extended Data Fig. 7: Identification of expression patterns of ERG+ prostate cancer.
From: Spatially resolved transcriptomic analysis of the adult human prostate
a, Spatial transcriptomic slices colored by gene signatures calculated by AddModuleScore and expression level of ERG in each spot. b, Overview of the sampling strategy of the prostate of patient 2. c, H&E staining of the slices sampled from the site encircled in b. d, Spatial transcriptomic slices of patient 2 color by CNV Leiden clusters. e, Enlarged partition of slice H3_1 of patient 2. f, Heatmap grouped by CNV Leiden clusters showing CNA in each spot. g, Spatial transcriptomic slices colored by gene signatures calculated by AddModuleScore. h, Spatial transcriptomic slice colored by expression level of ERG in each spot.
