Extended Data Fig. 6: STG2-induced oligomerization of STING is dependent on R95.
From: Activation of human STING by a molecular glue-like compound

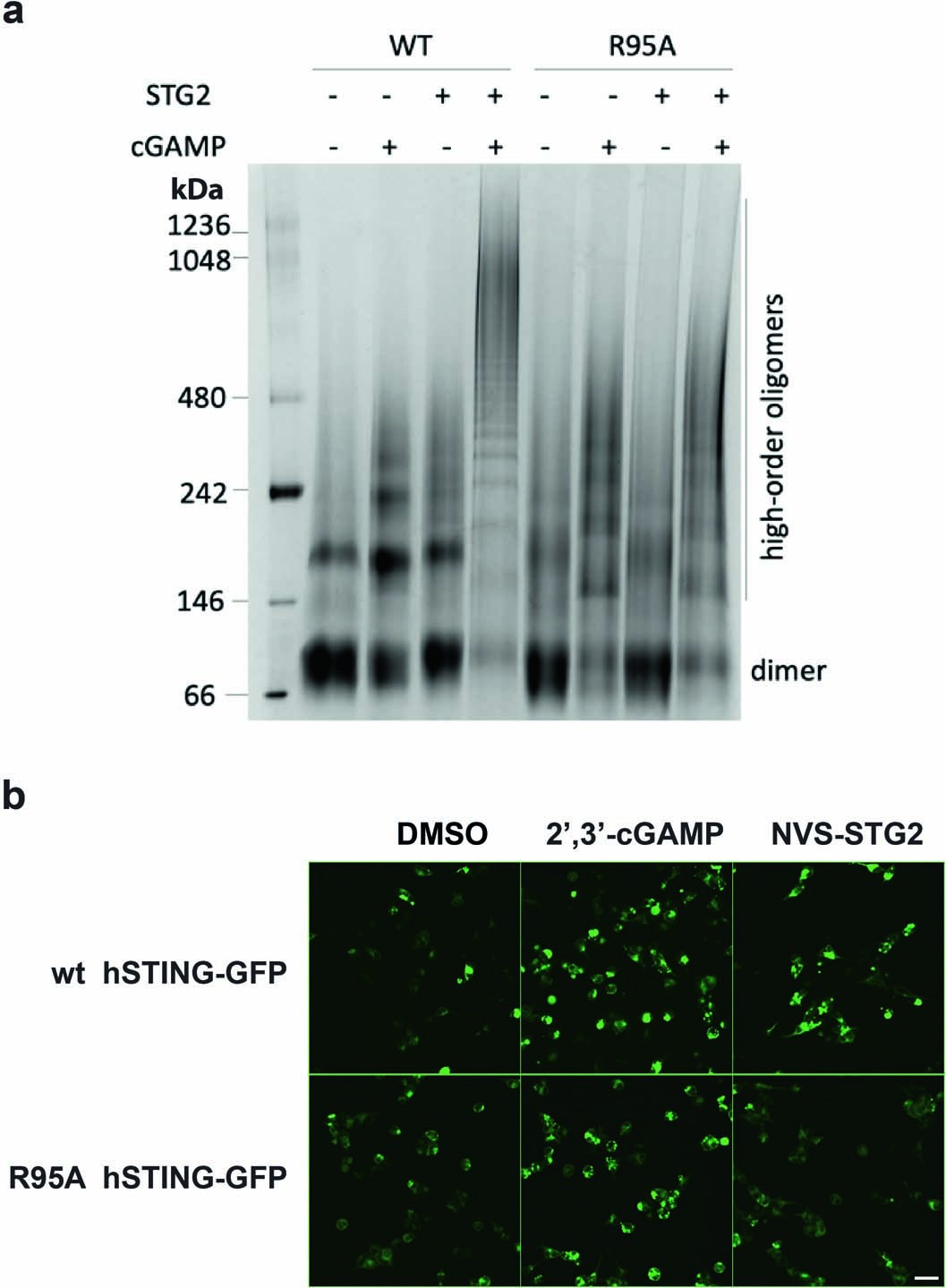

a, Induction of oligomerization of wild-type (WT) STING and the R95A mutant by cGAMP, NVS-STG2 or their combination. STG2, NVS-STG2. b, Fluorescent puncta-like structure formation of wild-type STING and the R95A mutant upon activation by cGAMP or NVS-STG2 (scale bar 20 µm). Data shown are representatives of three biological replicates.
