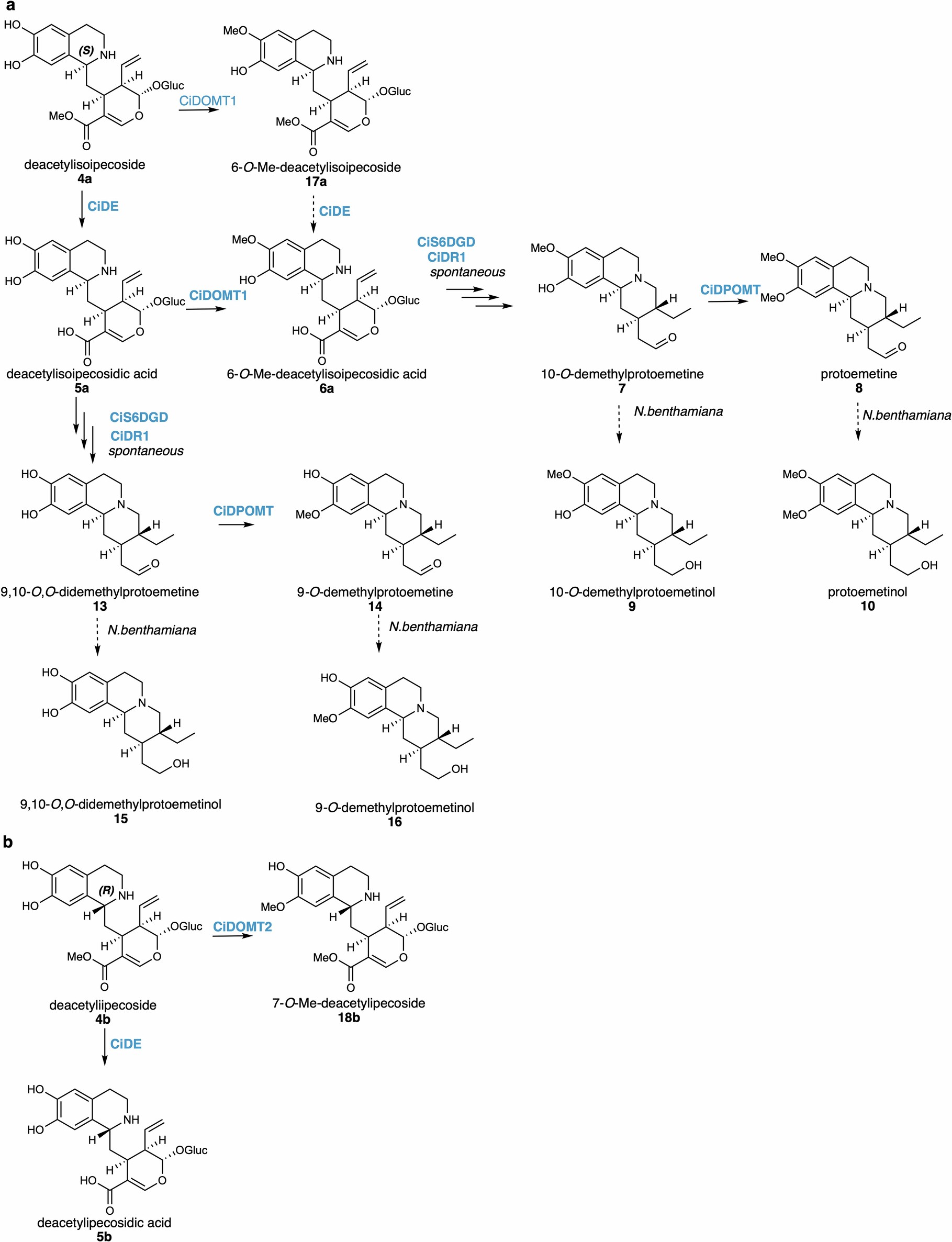

Extended Data Fig. 3: C. ipecauanha protoemetine biosynthesis network including possible side branch products.
From: Ipecac alkaloid biosynthesis in two evolutionarily distant plants
Activities were detected through expression of pathway genes shown in Supplementary Fig. 10. a, S-epimer derived pathways. b, R-epimer derived pathways.
