Extended Data Fig. 2: Structure-based engineering of IscB at ten amino acid sites. | Nature Methods

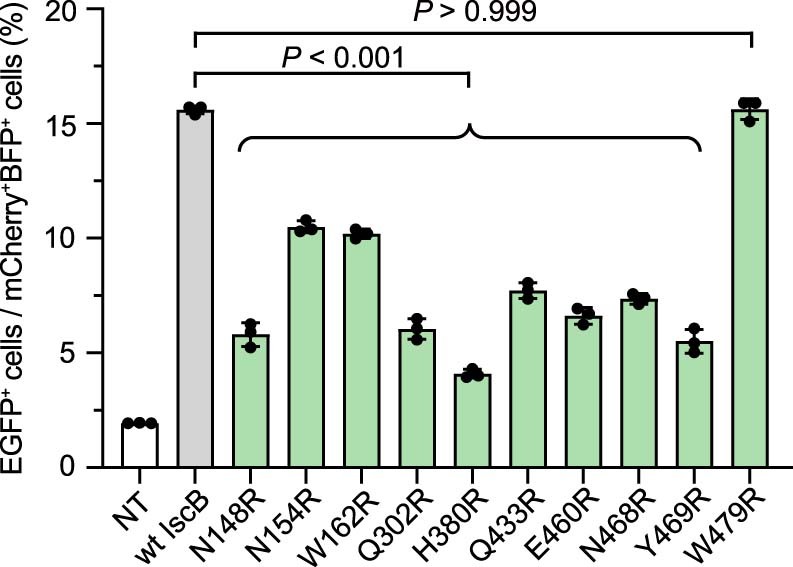

Extended Data Fig. 2: Structure-based engineering of IscB at ten amino acid sites.

From: Development of miniature base editors using engineered IscB nickase

Extended Data Fig. 2

Wild type ωRNA was used in this experiment. Each point represents the editing efficiency of independent biological replicate by FACS analysis. Data are presented as means ± s.d., n = 3. P-values determined by Sidak’s multiple comparisons test following ordinary one-way analysis of variance.

Source data
