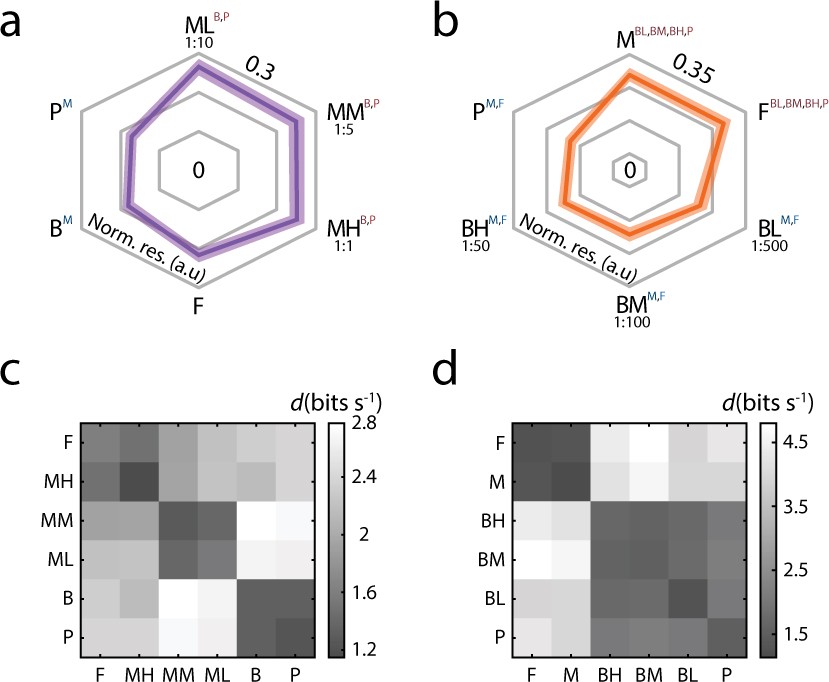

Extended Data Fig. 3: Social categorization generalizes over a range of stimulus concentrations.
From: Dynamics of social representation in the mouse prefrontal cortex
Overall unit tuning, presented as normalized firing rate in response to male cues at three different concentrations (ML, MM, MH), female (F) banana (B) and peanut butter (P) stimuli. RM ANOVA with Bonferroni corrected post hoc comparisons. Fstimulus(5,440) = 7.458, P = 9.8 × 10−7 (n = 89 responsive units). Superscripts mark significant post hoc comparisons. Mean ± s.e.m (shaded area) is presented. (b) Overall unit tuning, presented as normalized firing rate in response to male (M) and female (F) stimuli, banana oil at three different concentrations (BL, BM, BH) and peanut butter oil (P). RM ANOVA with Bonferroni corrected post hoc comparisons. Fstimulus(5,285) = 9.856, P = 1.1 × 10−8 (n = 58 responsive units). Superscripts mark significant post hoc comparisons. Mean ± s.e.m (shaded area) is presented. For detailed statistics information see Supplementary Table 2. (c) Similarity matrices depicting the distance between population responses to the stimulus panel used in a (n = 4 C57BL/6 J mice). (d) Same as c but for the stimulus panel used in b (n = 3 C57BL/6 J mice). Norm. res.- normalized response.
