Extended Data Fig. 5: Joint angle encoding in Ascending Neurons and limb proprioceptors exclusively during resting epochs.

From: Ascending neurons convey behavioral state to integrative sensory and action selection brain regions

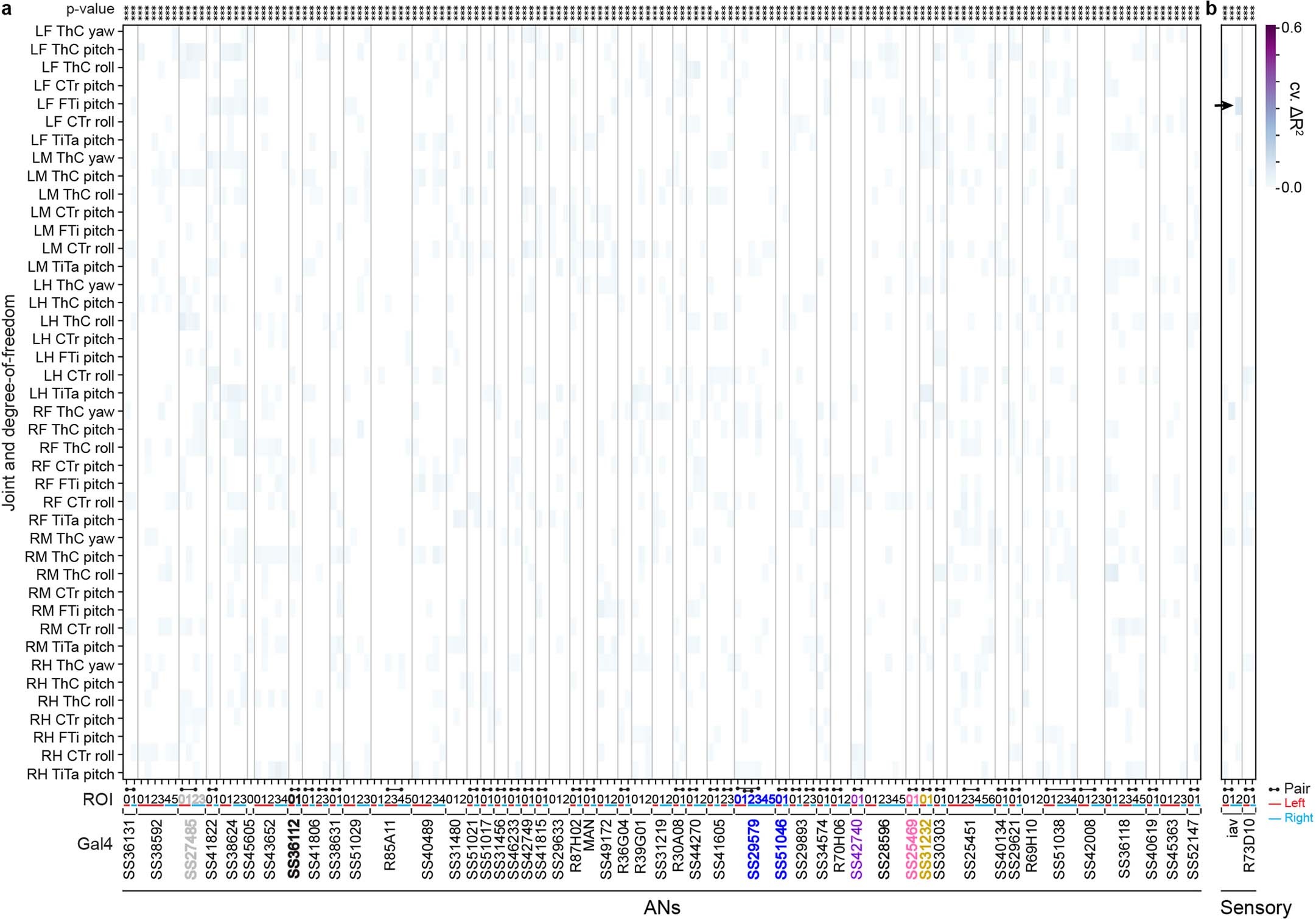

Extended Data Fig. 5

Proportion of variance in (a) AN and (b) proprioceptor activity that is uniquely explained by joint angle regressors (cross-validated ΔR2 based on joint movements. P-values report the one-tailed F-statistic of overall significance of the complete regression model with none of the regressors shuffled without adjustment for multiple comparisons (**p<0.01 and ***p<0.001).
