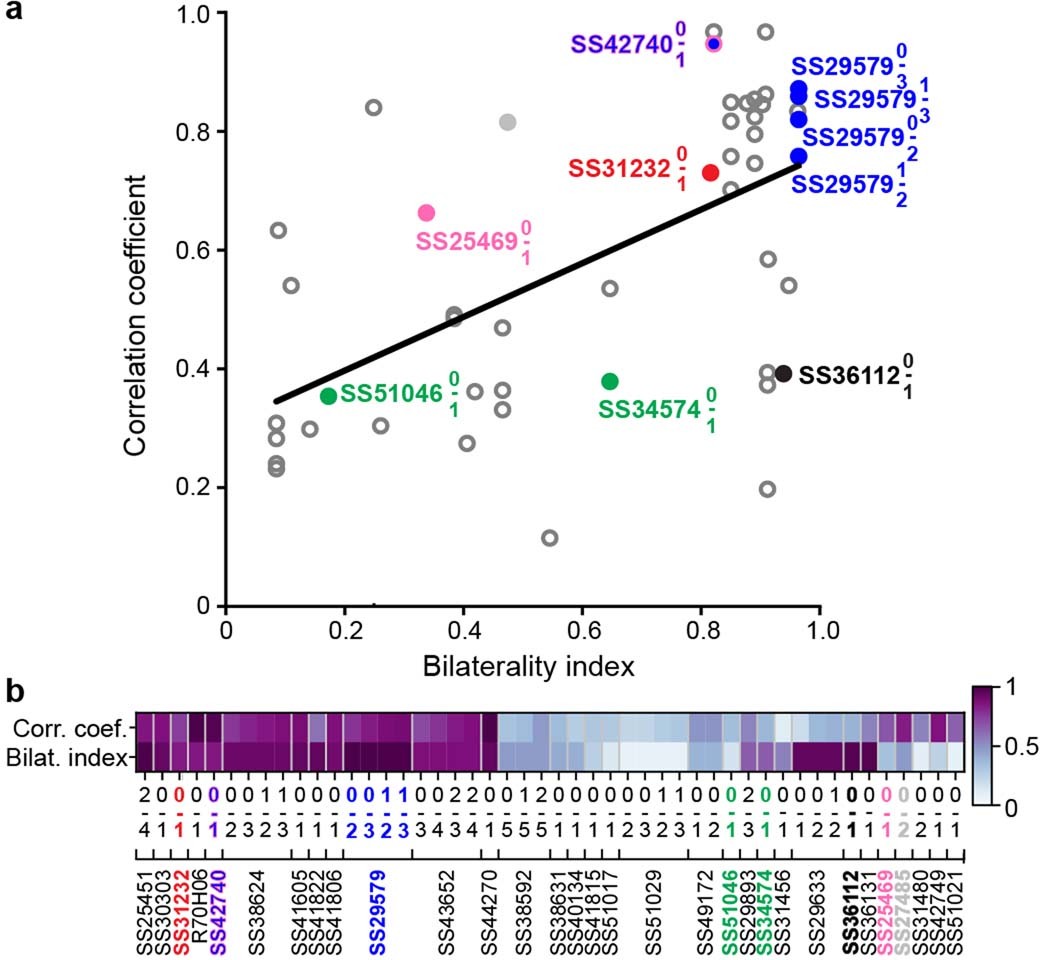

Extended Data Fig. 9: The bilaterality of an ascending neuron pair’s VNC patterning correlates with the synchrony of their activity.
From: Ascending neurons convey behavioral state to integrative sensory and action selection brain regions
(a) A bilaterality index, quantifying the differential innervation of the left and right VNC (without distinguishing between axons and dendrites) is compared with the Pearson correlation coefficient computed for the activity of left and right ANs for a driver line pair (R2 = 0.31 and p<0.001 using a two-sided Wald Test with a t-distribution to test whether to reject the null hypothesis that the coefficient of a linear equation equals 0). (b) Bilaterality index and Pearson correlation coefficient values for each AN pair.
