Fig. 6: Multiple foveolar representations revealed by optical imaging.
From: Multiple loci for foveolar vision in macaque monkey visual cortex

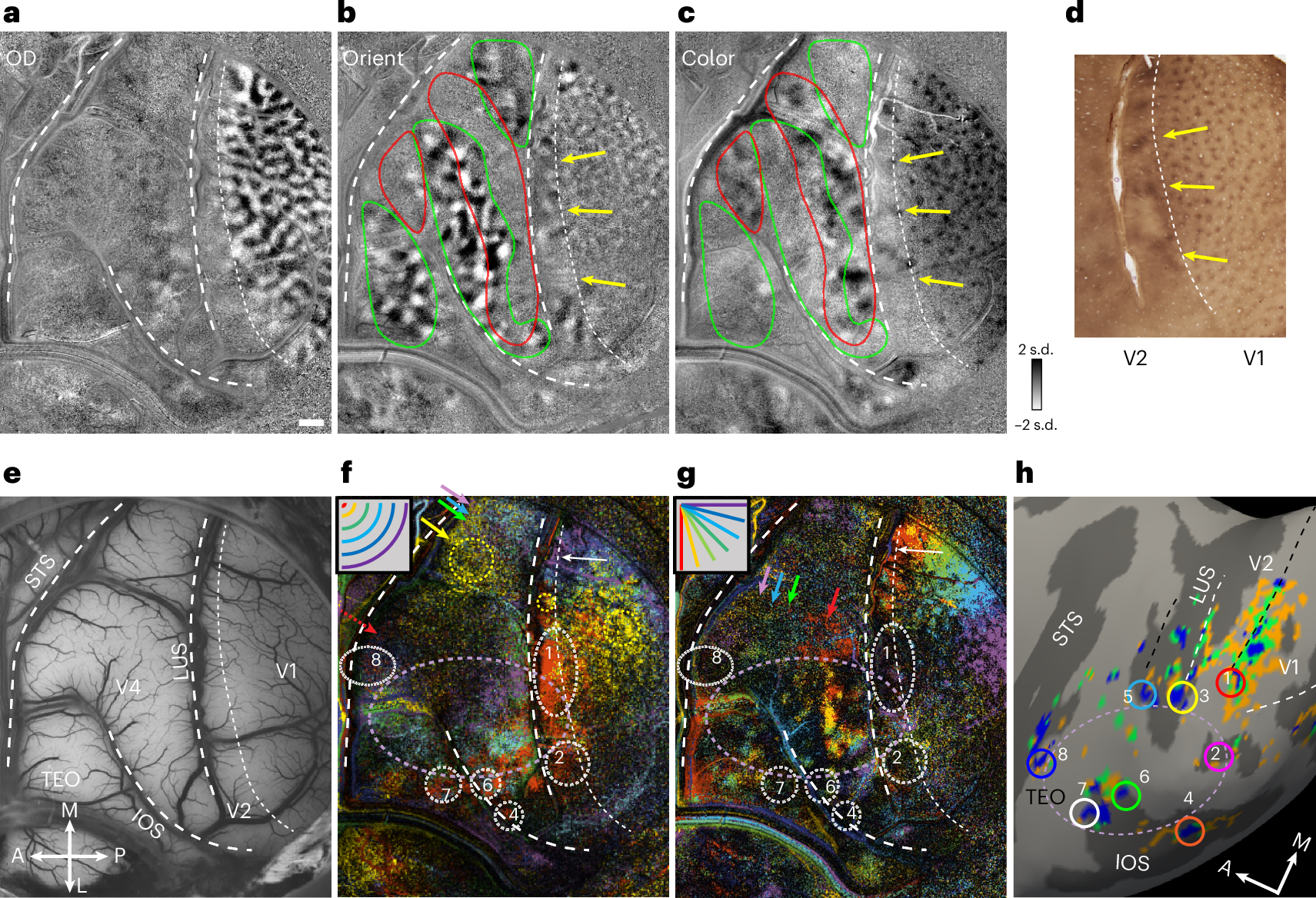

a, Ocular dominance (OD) map. Scale bar, 1 mm. b, Orientation map (45° versus 135°). Green outlines, V4 orientation bands; red outlines, V4 color bands. c, Color map (color versus achromatic). Yellow arrows, color stripes in V2 (same locations as stripes shown in d). d, Cytochrome oxidase stained stripes in V2 align well with color stripes in c (yellow arrows). e, Blood vessel map over V1, V2, V4 and TEO. M, medial; L, lateral; A, anterior; P, posterior. f, Color-coded eccentricity map (red, 0.01°; yellow, 0.10°; green, 0.20°; cyan, 0.30°; blue, 0.40°; purple, 0.50°). Lavender dashed circle, foveolar core; colored arrows, shifted eccentricities. White arrow: V1/V2 border. g, Color-coded isopolarity map (red, 0°; yellow, 15°; light green, 30°; dark green, 45°; cyan, 60°; blue, 75°; purple, 90°). Numbered white dotted circles, foveolar locations at V1/V2 (1 and 2), V2v/V3v (4), V3v/V4v (6), V4v/TEO (7) and TEO/FST (8). Locations V2d/V3d (3) and V3d/V4d (5) are within the LUS and not visible in optical imaging. Colored arrows, shifted polar angles. h, For comparison, 7T MRI of all foveola in monkey E (left hemisphere, from Fig. 3b) numbered with the corresponding locations in g. The orientation of all optical imaging maps was rotated to correspond with the MRI results shown in h.
