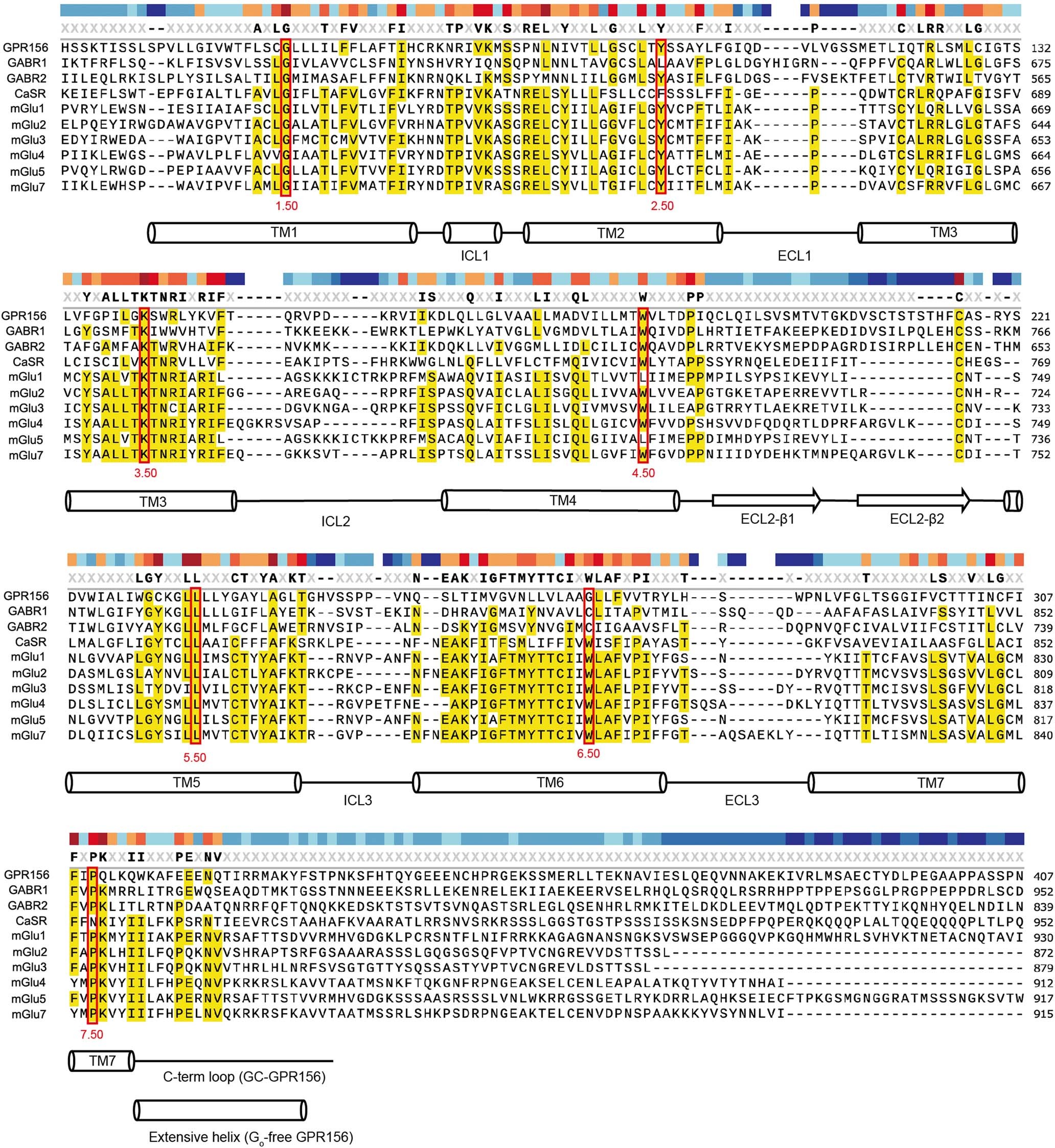

Extended Data Fig. 7: Sequence alignment of GPR156 with other human class C GPCRs.

The conserved residues are marked in yellow. The alignment was output from GPCRdb (gpcrdb.org) and edited by using snapgene (snapgene.com).
