Fabrication of nonplanar tapered fibers to integrate optical and electrical signals for neural interfaces in vivo

Nature Protocols volume 20, pages 1768–1809 (2025)Cite this article

Subjects

Abstract

Implantable multifunctional probes have transformed neuroscience research, offering access to multifaceted brain activity that was previously unattainable. Typically, simultaneous access to both optical and electrical signals requires separate probes, while their integration into a single device can result in the emergence of photogenerated electrical artifacts, affecting the quality of high-frequency neural recordings. Among the nontrivial strategies aimed at the realization of an implantable multifunctional interface, the integration of optical and electrical capabilities on a single, minimally invasive, tapered optical fiber probe has been recently demonstrated using fibertrodes. Fibertrodes require the application of a set of planar microfabrication techniques to a nonplanar system with low and nonconstant curvature radius. Here we develop a process based on multiple conformal depositions, nonplanar two-photon lithography and chemical wet etching steps to obtain metallic patterns on the highly curved surface of the fiber taper. We detail the manufacturing, encapsulation and back end of the fibertrodes. The design of the probe can be adapted for different experimental requirements. Using the optical setup design, it is possible to perform angle selective light coupling with the fibertrodes and their implantation and use in vivo. The fabrication of fibertrodes is estimated to require 5–9 d. Nonetheless, due to the high scalability of a large part of the protocol, the manufacture of multiple fibertrodes simultaneously substantially reduces the required time for each probe. The procedure is suitable for users with expertise in microfabrication of electronics and neural recordings.

Key points

  • The procedure covers microfabrication approaches including the conformal deposition of metallic and dielectric thin films, nonplanar two-photon lithography, wet etching and focused ion beam milling/deposition.

  • The integration of electrical and optical signals within a single device enables the optical control of neural activity and the recording of simultaneous electrophysiological readout in mice. Alternative approaches include the use of flexible electronics, micro light-emitting diodes, multifunctional polymeric optical fibers and silica-based arrays.

Access through your institution
Buy or subscribe

This is a preview of subscription content, access via your institution

Access options

Access through your institution

Buy this article

  • Purchase on SpringerLink
  • Instant access to full article PDF
Buy now

Prices may be subject to local taxes which are calculated during checkout

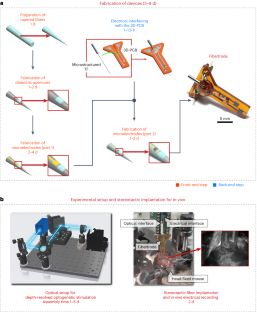

Fig. 1: Flowchart for the fabrication and usage of fibertrodes.

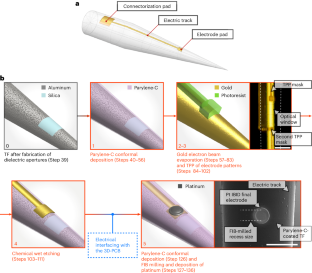

Fig. 2: TPP-based process to fabricate metallic patterns on TFs.

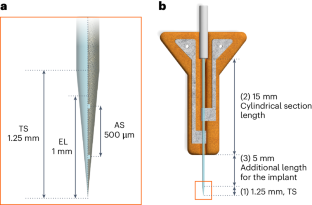

Fig. 3: Design principles for the fibertrodes.

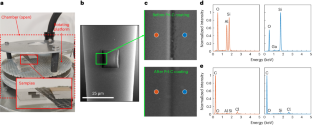

Fig. 4: Encapsulation with Parylene-C.

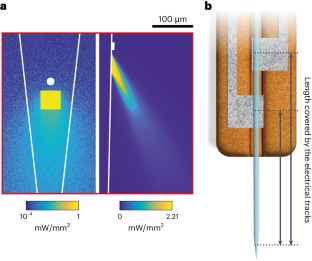

Fig. 5: Monte Carlo simulation of light emitted from the apertures and design principles.

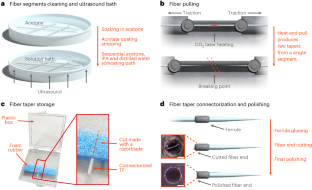

Fig. 6: Preparation of the TFs.

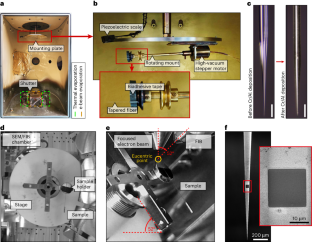

Fig. 7: Fabrication of dielectric apertures.

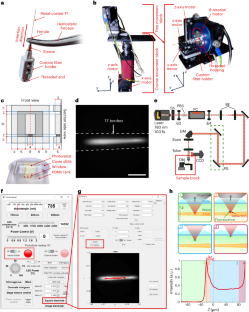

Fig. 8: Setup and software for TPP of electrode patterns.

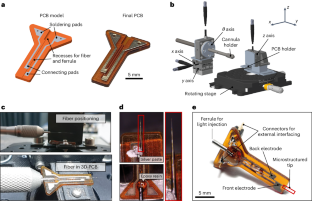

Fig. 9: Back-end procedure to connect the patterned TF with the 3D-PCB.

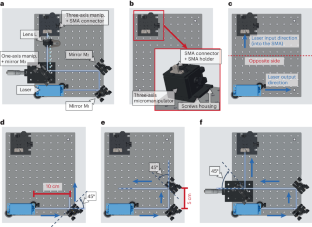

Fig. 10: Depth-resolved optogenetic setup.

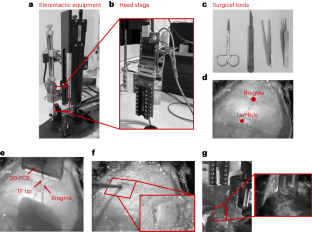

Fig. 11: Implantation procedures for fibertrode devices.

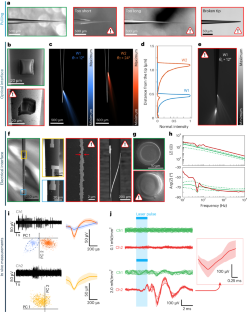

Fig. 12: Anticipated results for the optical and the electrophysiological interface.
