Figure 4

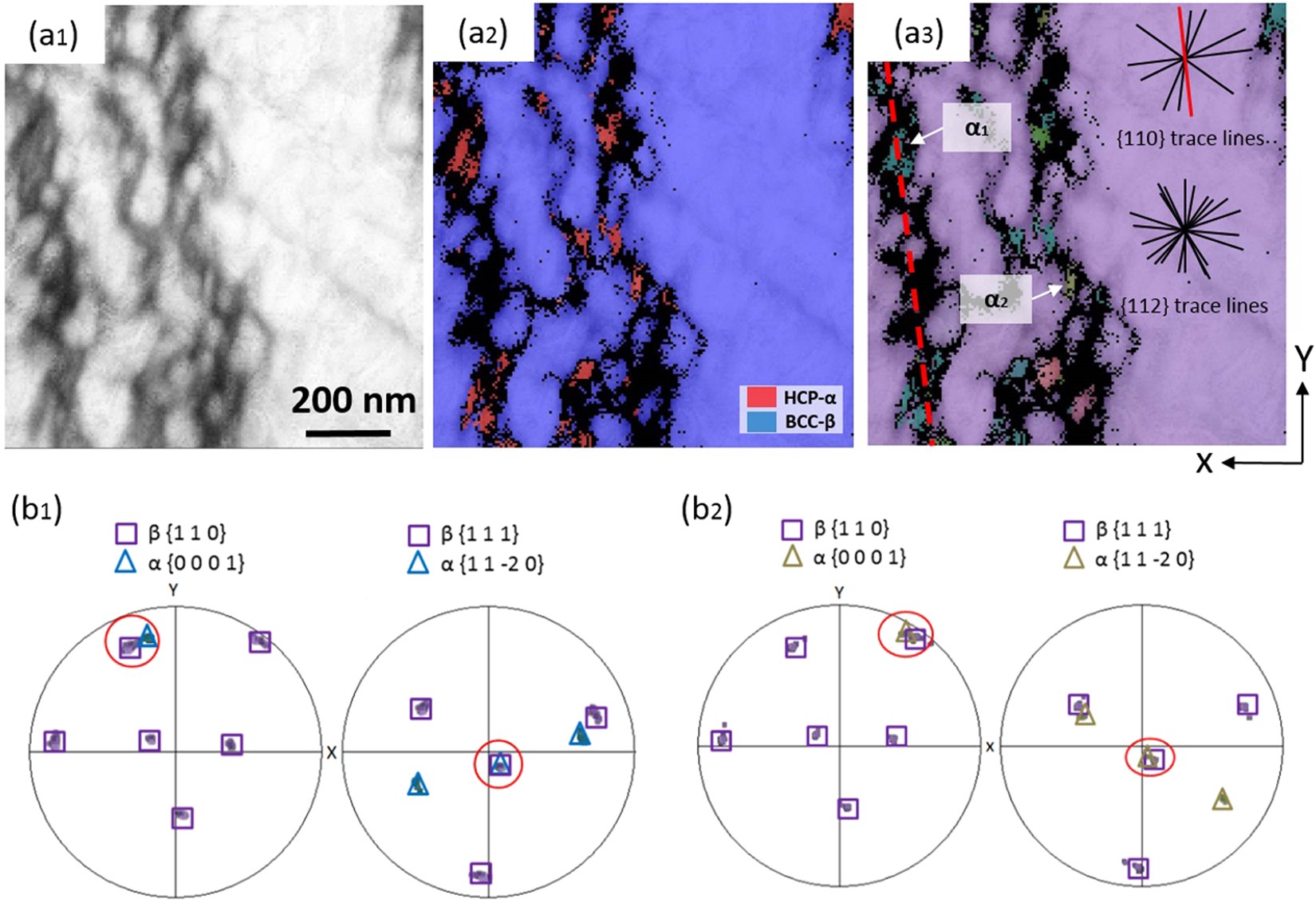

TKD results (step size = 6 nm) for string-shaped morphologies observed in Ti6554 specimens deformed at 10000 s−1 and 873 K: (a 1 ) band contrast map, (a 2 ) phase map and (a 3 ) Euler map with trace lines of {110} and {112} slip planes plotted (the red coloured {110} trace line indicates a potential slip plane on which the coalescent α laths are aligned); (b 1 ) and (b 2 ): pole figures for α laths labelled in (a 3 ) and their surrounding β matrix showing an approximate Burgers orientation relationship.
