From: Potential Disruption of Flood Dynamics in the Lower Mekong River Basin Due to Upstream Flow Regulation

Figure 2

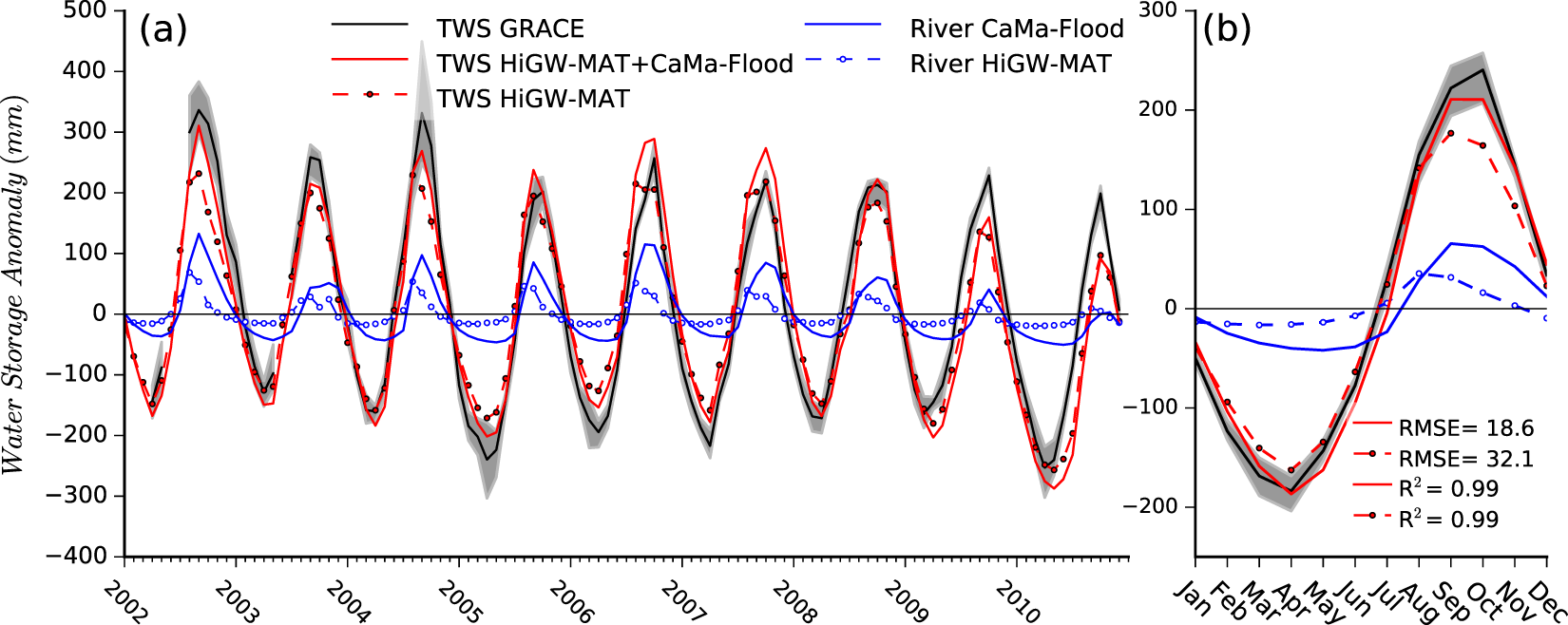

Role of river-floodplain storage on TWS dynamics over the MRB. (a) Black line shows the mean of TWS anomaly from spherical harmonics- and mascon-based GRACE products with the range between different products indicated by grey shading. For modeled TWS anomalies, four sets of result are shown: combined total TWS from HiGW-MAT and CaMa-Flood (solid red), total TWS only from HiGW-MAT (dashed red), river-floodwater storage from CaMa-Flood (solid blue), and river water storage from HiGW-MAT (dashed blue) which implicitly lumps flood water storage. (b) The seasonal cycle. Results are averaged for the entire MRB.
