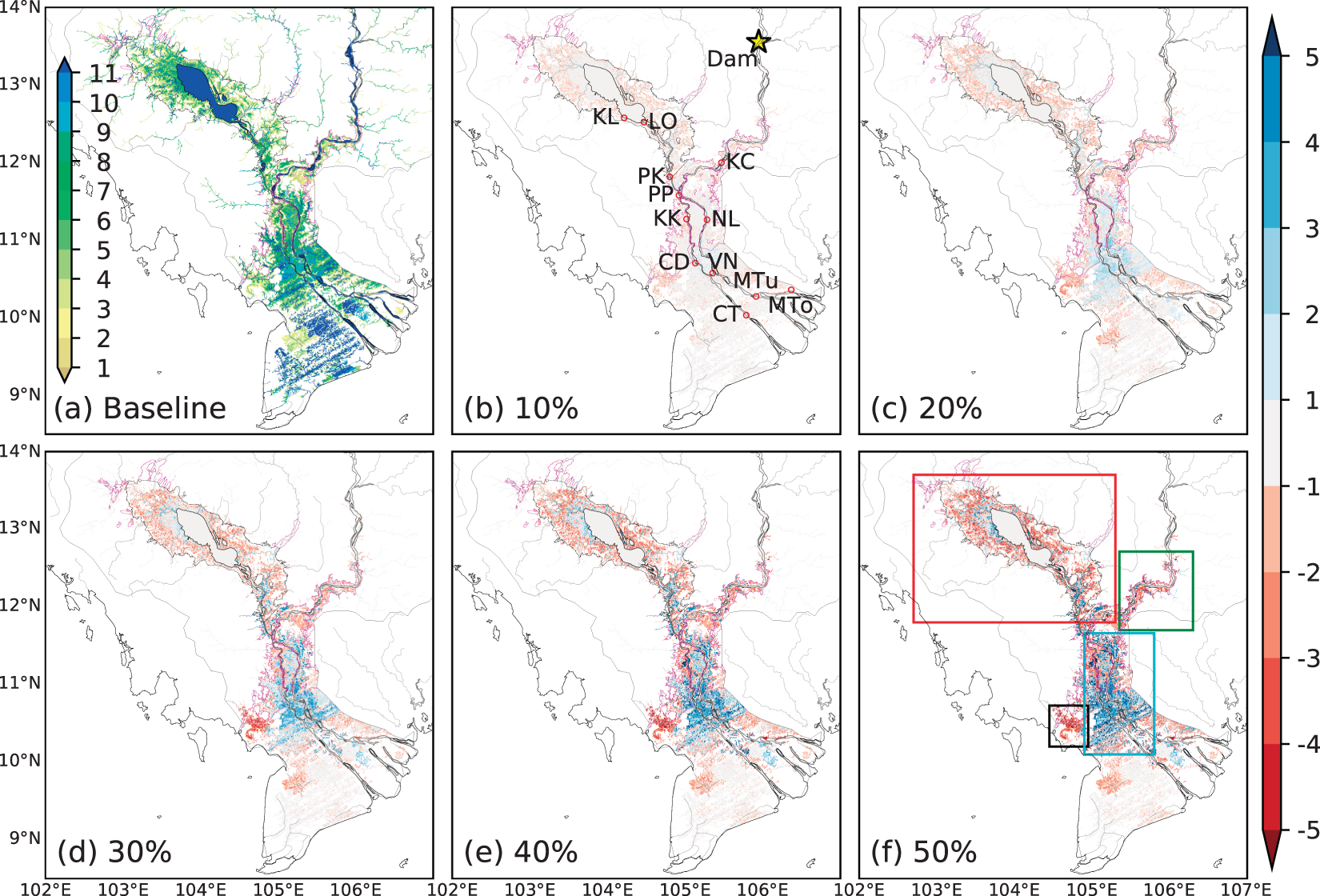

Figure 5
Flood occurrence and the effects of flow regulation on it. (a) Same as in Fig. 1b but based on the baseline simulation with 1981–2010 mean runoff. (b–f) Change in flood occurrence (number of months) for change in peak flow by different degree as indicated with reference to the baseline flood occurrence (a). The star in (b) shows the Stung Treng station where flow is altered. Rectangles in (f) show regions in the LMRB discussed in the text. For magenta and black lines, see description in Fig. 1 caption.
