Figure 4
From: Flying Drosophila show sex-specific attraction to fly-labelled food

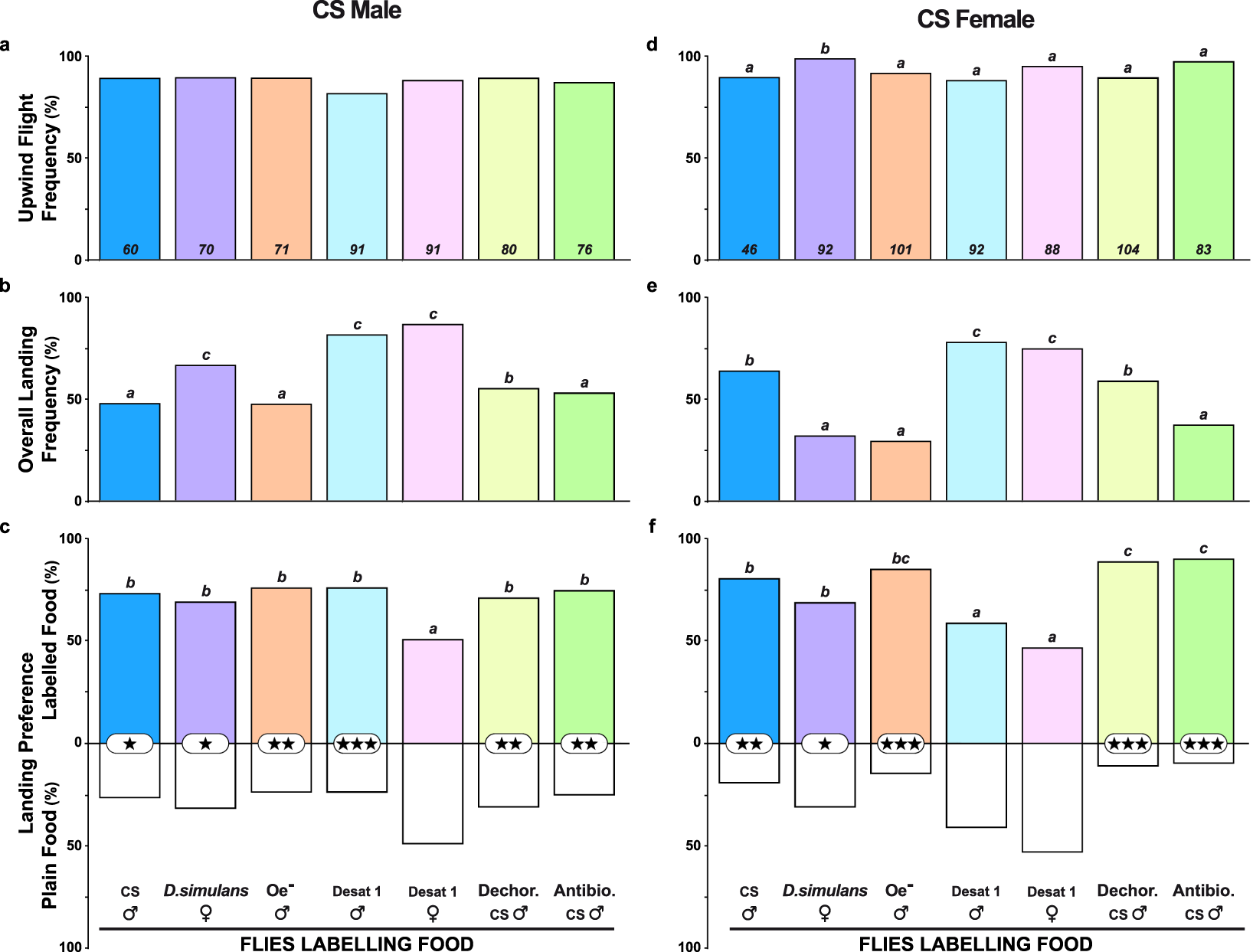

Free flight and landing preference in single CS flies toward food labelled by flies of various genotypes. The histograms represent (a,d) the frequency of flies taking upwind flight, (b,e) the overall landing frequency, and (c,f) the landing preference in mature male (a–c) and female CS flies. (d–f) The fly-labelled foods are shown below the histograms, from left to right: CS males, D. simulans females, oenocyteless males (Oe−), Desat1 mutant males and females, CS males originating from dechorionated eggs (Dechor. CS males) and antibiotic-treated eggs (Antibio. CS males). For the parameters and statistics, please refer to the Fig. 2 legend. (a) G2(6df) = 3.2, p = 0.789; (b) G2(6df) = 48.5, p = 0.0001; (c) Khi2(6df) = 13.9, p = 0.031; (d) G2(6df) = 13.1, p = 0.042; (e) G2(6df) = 85.3, p = 0.0001; (c) Khi2(6df) = 39.4, p = 0.0001. The sample size is indicated at the bottom of each histogram bar (a,d).
