Figure 8
From: Chloroplast development at low temperature requires the pseudouridine synthase gene TCD3 in rice

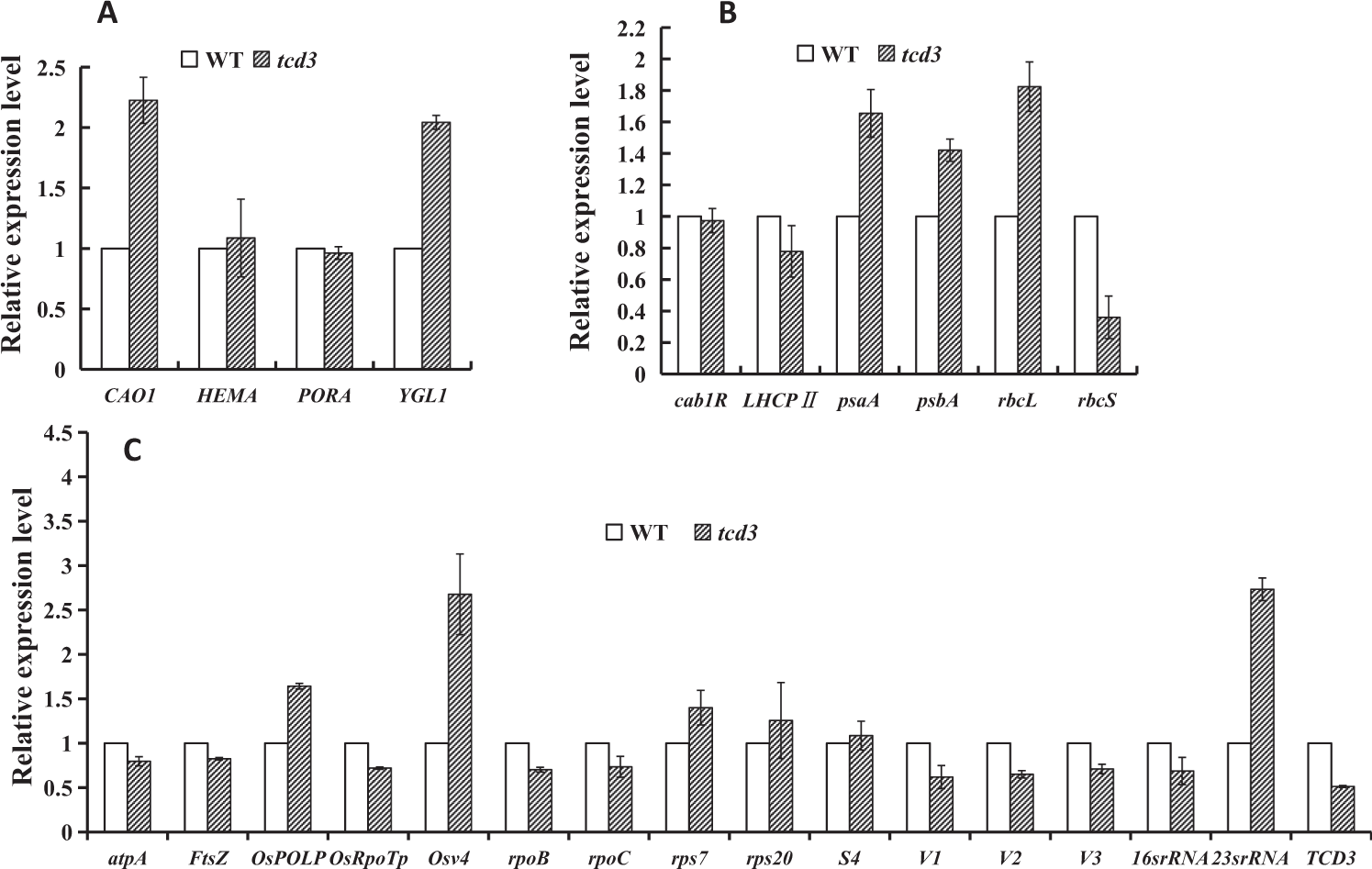

qRT-PCR analysis of genes associated with Chl biosynthesis (A), photosynthesis (B), and chloroplast development in wild type (WT) and tcd3 at the 3-leaf stage at 32°; the relative expression level of each gene in WT and tcd3 was analyzed by qRT-PCR and normalized using OsActin as an internal control. Data are means ± SD (n = 3).
