Correlation among photoluminescence and the electronic and atomic structures of Sr₂SiO₄:xEu³⁺ phosphors: X-ray absorption and emission studies

Rare-earth ion-doped inorganic phosphors are luminescent materials with practical applications in many devices, including white light-emitting diodes (LEDs), multicolor sensors, high-density optical storage devices and devices for detecting high-energy radiation^{1, 2}. Among the rare-earth elements, europium (Eu) is of special interest as a dopant because it exhibits valence fluctuation between divalent (Eu²⁺) and trivalent (Eu³⁺) states, remarkably efficient phosphors and narrow-band emission properties that cause it to function as an emission center in a host lattice³. The coordination environment and the type of crystals determine the valence state of activators and affect the photoluminescence (PL) properties of phosphors in which they are incorporated³. These materials, when excited by light of a suitable wavelength/energy, provide a high PL yield and favorable chromaticity owing to the intra-4f–4f parity-forbidden transitions of the Eu³⁺ activators or the 4f–5d transitions of the Eu²⁺ rare-earth ions, whose intensity depends on the site symmetry and the nature of the host matrix⁴. Eu³⁺ dopants typically exhibit orange-red (⁵D₀ → ⁷F_J), green (⁵D₁ → ⁷F₁) or blue (⁵D₂ → ⁷F₀) luminescence as a result of intra 4f–4f transitions^5,6. Furthermore, the emission of the Eu²⁺ dopant originates from the 4f–5d transition, the color of which varies from ultraviolet (UV) to red, depending on the crystal symmetry and the effect of the crystal field on the excited 5d states^7,8. Notably, in Eu³⁺ emission, the resonant excitation cross-section of 4f–4f transitions is normally small^{1, 6}, so emission occurs upon transition to the ground ⁷F_J state from ⁵D_J states, presumably involving the O²⁻ → Eu³⁺ charge-transfer (CT) band^7,8. The replacement of divalent ions in the host lattice with trivalent ions requires charge compensation to maintain electrical neutrality and plays a critical role in the excitation of Eu³⁺-activators in which nonradiative relaxation to ⁵D_J states is followed by radiative emission^9,10.

Among various host oxides for phosphors, strontium silicate, Sr₂SiO₄ (SSO), is an excellent host material owing to its stable crystal structure, high mechanical strength and thermal stability, which is provided by the tetrahedral silicate (SiO₄)⁴⁻ host matrix,¹¹ and it has potential application in the development of white LEDs. The sites of Sr²⁺ ions are of two types: (i) highly symmetric ten-coordinate sites (Sr₁ sites) and (ii) less symmetric nine-coordinate sites (Sr₂ sites). When this silicate host is doped with Eu³⁺ ions, the trivalent-metal ions may be distributed/substituted among these two types of Sr sites. The luminescence of Eu³⁺ activators depends strongly on the site symmetries¹². Depending on whether they are at high-symmetry (Sr₁ sites) or low-symmetry (Sr₂ sites) sites in the host matrix, Eu³⁺ activators generally emit red or orange light³. Doping with trivalent Eu³⁺ ions changes the local charge distribution and generates interstitial defects or vancancies^13,14,15 that act as donor levels and thus increase the PL. Previous studies^16,17,18,19 have suggested that the substitution of cations by Eu in the host matrix is an effective means of adjusting the PL of phosphor materials. Intuitively, Eu³⁺ ions that replace Sr²⁺ ions in the SSO lattice can be readily dissolved because the ionic radii of nine-coordinate Eu³⁺ (~ 1.30 Å) and ten-coordinate Eu³⁺ (~ 1.35 Å) are very close to those of nine-coordinate Sr²⁺ (~ 1.31 Å) and ten-coordinate Sr²⁺ (~ 1.36 Å)^1,3,20, respectively. Additionally, SSO is a unique lattice in which the O²⁻ → Eu³⁺ CT band lies much lower than that in other host lattices⁹. Therefore, in SSO:Eu³⁺ phosphors, Eu³⁺ ions are incorporated into the host lattice probably as substitutes for Sr²⁺ ions, so the charge becomes imbalanced; upon neutralization, the O²⁻ charge-compensating agent occupies the sites of defects, so the local environment of Eu³⁺ in the crystal field becomes more symmetrical, thus increasing the intensity of the PL³. Yellow emission (⁵D₀ → ⁷F₁) dominates when the site of the Eu³⁺ ions exhibits high symmetry, while orange-red emission (between ⁵D₀ → ⁷F₂ and ⁵D₀ → ⁷F₄) dominates when the site does not exhibit symmetry. An earlier study²¹ reported unusual luminescence spectra of Eu-doped SSO, with a strong ⁵D₀ → ⁷F₀ line at ~ 575 nm, although whether the 575 nm emission arises from the ⁵D₀ → ⁷F₀ transition is ambiguous¹. This transition normally occurs when the site symmetry is very low. The abnormally high energy of emission in that study was postulated to result from the presence of extra interstitial O²⁻ ligands that were not bound to silicon but formed an association (Eu³⁺–O²⁻)^1,3,5,18. An O²⁻ → Eu³⁺ CT band at such long wavelengths in oxides is peculiar and is still debated. Eu typically yields very intense and wide visible emissions, which can be attributed to electric-dipole-allowed transitions from the Eu 5d to 4f energy in phosphors and related materials^15,22,23,24. Changes in the local environments and control the Eu valence states (Eu³⁺ and Eu²⁺) in phosphor materials to tune their activation have been extensively investigated with the aim of improving the materials’ PL properties^3,25. The PL mechanism of the Eu-doped SSO matrix is still debated despite the numerous studies mentioned above. However, the local environments of the Eu activators in the SSO host matrix have not been comprehensively investigated, and in particular, no direct experimental observation of the correlation among PL behavior, the electronic/atomic structures of Eu ions, and the bandgap of the host matrix has been reported. In this study, an alkaline earth silicate host doped with Eu ions (SSO:xEu³⁺ phosphors, x = 1.0, 2.0 and 5.0%) in the α′-phase and the β-phase at various Eu³⁺ concentrations is synthesized using the sol–gel process²⁶. The effect of Eu³⁺ activators on the PL properties, particularly the correlation among the PL emission, the local electronic/atomic structures and the energy bandgap of the SSO:xEu³⁺ phosphors, is studied using synchrotron-based X-ray absorption near-edge structure (XANES), extended X-ray absorption fine structure (EXAFS) and X-ray emission spectroscopy (XES) techniques. The aim of this work is to elucidate the PL emissions that originate from interstitial Eu₂O₃-like structures in the host matrix. These structures are primarily responsible for the nonradiative electron transfer from Eu 5d states and/or O 2p–Eu 4f/5d states (mostly O 2p–Eu 5d states) to ⁵D₀ levels, facilitating the 4f–4f electronic transitions from the excited ⁵D₀ → ⁷F_J levels in the band gap of the host matrix. Therefore, the overall PL intensity increases with Eu concentration in the SSO:xEu³⁺ phosphors.

Figure 1a,b shows the atomic structures of the (orthorhombic) α′ and (monoclinic) β phases of the SSO matrix, respectively. As the Eu³⁺ doping concentration increases, β-phase SSO is likely converted into α′-phase SSO. The structure of SSO is similar to the non-close-packed structure of K₂SiO₄²⁷. As displayed in Fig. 1a,b, one unit cell of SSO comprises 26 atoms that share four formula units. Its structure can be best described as comprising corner-sharing SiO₄ tetrahedra in parallel chains. The oxygen ions are located at three types of nonequivalent lattice sites, and the Si ions are located at the center of the oxygen tetrahedron. When Eu³⁺ is doped into the SSO matrix, the Eu³⁺ ions may affect the SSO host lattice by changing the lattice constants and/or causing structural distortion, varying the ratio of the α′ phase to the β phase in the SSO matrix¹⁸. However, this modification of the SSO matrix and/or site occupancy can only be observed by X-ray diffraction (XRD) at a rather high Eu³⁺-dopant concentration (≥ 5%) in the host matrix¹⁸. Figure 1c presents XRD patterns of both the as-synthesized SSO:xEu³⁺ phosphors with various concentrations of Eu³⁺ ions and SSO, SrCO₃ (SCO), SiO₂ and Eu₂O₃ for reference. The diffraction peak at (112) typically corresponds to the α′-SSO:xEu³⁺ phase, and the (211) and (301) peaks typically correspond to the β-SSO:xEu³⁺ phase. This result clearly shows that the crystal structures of the SSO:xEu³⁺ phosphors and the SSO host were mixed phases of both the α′ and β-SSO:xEu³⁺ phases. Prominent (211) and (301) diffraction peaks were observed at an Eu³⁺ ion concentration of 1.0%, whereas the (112) peak became more prominent as the concentration of Eu³⁺ ion increased above 1.0%, as was particularly evident for x = 5.0% and pure SSO. Apparently, as the Eu³⁺ doping concentration increased, the SSO matrix became increasingly α′-rich SSO:xEu³⁺ phase from β-rich SSO:xEu³⁺²⁸. Figure 1c also shows a characteristic (222) diffraction peak at ~ 28.2° that arises from the Eu₂O₃ phase. This peak is identified as the cubic phase of Eu₂O₃ and confirmed by comparison with the JCPDS pattern (card No. 34-0392). Apparently, XRD results show that doping with Eu³⁺ ions does not significantly change the structure of the lattice. The peaks that are marked with ‘♦’ in the XRD spectra indicate the presence of a tiny amount of SCO in the SSO:xEu³⁺ phosphors. The variation in the weight ratio of α′-SSO/β-SSO phases with the concentration of Eu³⁺ ions in the SSO:xEu³⁺ phosphors and SSO was quantitatively analyzed. The analysis was based on the ratio of α′-SSO to β-SSO phase peaks and was performed using general structure analysis system (GSAS) software²⁹. To qualitatively study the effect of Eu³⁺ concentration on the crystal structure and the weight ratio of α′-SSO/β-SSO phases in the SSO:xEu³⁺ phosphors, XRD spectra of the SSO:xEu³⁺ phosphors were simulated by GSAS software, and the simulation of the x = 5.0% sample is presented in the bottom panel of Fig. 1c, along with the experimental results. Table 1 presents the weight percentages and ratios of α′- and β-SSO phases in the SSO:xEu³⁺ phosphor and compares them with those reported elsewhere¹⁹. Table 1 indicates that the α′-SSO/β-SSO phase ratio was 0.70 at a Eu³⁺ ion concentration of x = 1.0% and increased to 8.65 and 16.93 at Eu³⁺ ion concentrations of x = 2.0 and 5.0%, respectively. However, the SSO host matrix had the highest (26.86) α′-SSO/β-SSO phase ratio. These results further confirm the formation of α′-rich SSO:xEu³⁺ phosphors at higher Eu³⁺-doping concentrations in the SSO:xEu³⁺ phosphors, which are associated with a more symmetric structure in the more highly Eu³⁺-doped samples. It is noted that the α′-SSO/β-SSO phase ratios of 1.0% Eu³⁺-doped SSO and pure SSO are unlikely not close to each other. The results differ because SSO:xEu³⁺ and pure SSO are synthesized separately in situ using the corresponding precursor; i.e., the SSO:xEu³⁺ phosphors were not a straight mixture of SSO and Eu₂O₃, although in both cases, the synthesis process and temperatures remain the same. Table 2 shows the lattice constants (a, b and c) of the α′-SSO and β-SSO phases, the crystal angle θ in the β-SSO phase and the volumes of both the α′- and β-SSO phases in the SSO:xEu³⁺ phosphors. The parameters in Table 2 do not vary significantly with Eu³⁺ doping in the SSO: xEu³⁺ phosphors, suggesting that the Eu³⁺ ions may/may not substitute at Sr sites in the SSO host matrix, as discussed above: not only do the nine-/ten-coordinate Eu³⁺ ions have ionic radii comparable to those of the corresponding Sr in the host matrix, but also the atomic radii of Eu (2.56 Å) and Sr (2.45 Å) atoms are similar to each other³⁰. In particular, no clear XRD patterns of Eu₂O₃-like structures in SSO:xEu³⁺ phosphors were observed, as shown in Fig. 1c, and this result can be explained by the fact that the Eu³⁺ doping concentration in the SSO host matrix is too low to be detected by XRD. However, high-resolution transmission electron microscopy (HRTEM) clearly shows the cubic Eu₂O₃-phase in the SSO: xEu³⁺ matrix, as presented in the lower inset of Fig. 4a, and will be discussed later.

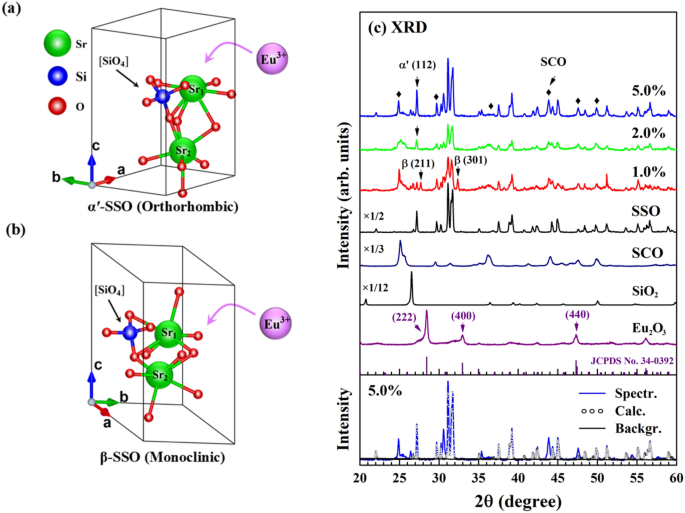

Atomic structure of (a) the α′-SSO phase (orthorhombic) and (b) the β-SSO phase (monoclinic) upon Eu³⁺-doping in the SSO host matrix [Drawn using VESTA software after considering the SSO raw crystallographic files (https://www.materialsproject.org/)]; (c) XRD patterns of synthesized SSO:xEu³⁺ phosphors with various concentrations of Eu³⁺ ions and reference spectra of SSO, SCO, SiO₂ and Eu₂O₃ with the JCPDS pattern. The bottom panel shows XRD data for the SSO:xEu³⁺ phosphor (x = 5.0%) and calculations of the crystal structure made using GSAS software.

Full size image

Figure 2a displays the PL spectra of SSO:xEu³⁺ phosphors recorded at room temperature upon excitation at a wavelength (λ) of 250 nm (~ 4.96 eV). The PL spectra include rather broad features that are centered at ~ 590, 613, 652 and 703 nm, consistent with previously reported results²⁸. The PL spectral features reveal emissions from Eu³⁺ activators in the host matrix; the emission features are related to the intra-4f–4f ⁵D₀ → ⁷F_J (J = 1, 2, 3 and 4) electronic transitions. The observed ⁵D₀ → ⁷F₁ (⁷F₃) transitions at ~ 590 (652) nm and ⁵D₀ → ⁷F₂ (⁷F₄) transitions at ~ 613 (703) nm are special; the first is a symmetry-sensitive transition and is known as the magnetic dipole transition (MDT) with the selection rule (ΔJ = 0, ± 1), and the second is a hypersensitive electric dipole transition (EDT) with ΔJ ≥ 2¹⁸. Both are sensitive to the local environment and depend on the symmetry of the crystal field of the Eu³⁺ activators in the host matrix^3,9. Typically, the most important parameter for understanding symmetry is the asymmetric ratio or asymmetric factor (I_rat = I_EDT/I_MDT), which is defined as the ratio of the integral intensity of EDT (⁵D₀ → ⁷F_2,4) to that of MDT (⁵D₀ → ⁷F_1,3). At a crystal site with inversion symmetry, MDT is usually the most intense emission feature, whereas at a site without inversion symmetry, EDT is the strongest emission feature because transitions with ΔJ =  ± 2 are hypersensitive to small deviations from inversion symmetry.¹⁸ The relative intensity I_EDT/I_MDT strongly depends on the local symmetry around the Eu³⁺ activators and thus provides information about the degree of distortion from inversion symmetry of the local environment around the Eu³⁺ activators in the host matrix. A lower symmetry around Eu³⁺ activators results in a higher asymmetric ratio or asymmetric factor. In this work, I_rat [I(⁵D₀ → ⁷F₂)/I(⁵D₀ → ⁷F₁)], which is the ratio of the integrated intensities in the regions 603 to 634 and 577 to 601 nm, changed from 1.29 (x = 1.0%) to 1.57 (x = 2.0%) to 1.61 (x = 5.0%) as the asymmetric field around the Eu³⁺ activators increased, reflecting a small change in the lattice distortion, possibly caused by either substitution at the Sr sites or the formation of interstitial Eu–O associations in the SSO:xEu³⁺ phosphors. Yin et al.³¹ observed the PL properties of a Eu₂O₃/Tb₂O₃ film that was deposited on a p⁺-type Si substrate with a small lattice mismatch using ITO and Ag as the negative and positive electrodes, respectively. These excitations (⁵D₀ → ⁷F₁ at 583 nm and ⁵D₀ → ⁷F₂ at 611 nm) yielded relatively broad-band features and improved the I_rat, which can be associated with the CT band, owing to the injection of electrons and holes into the unoccupied Eu 5d and occupied O 2p states of the Eu₂O₃ layer from ITO and Tb₂O₃ films, respectively, thus enhancing the 4f–4f electronic transitions. The transition from ⁵D₀ → ⁷F₀ (J = 0) is forbidden by both ED and MD, and only weak transitions are observed as a result of the crystal field-induced J-mixing effect of the Eu³⁺ activators. However, this transition (⁵D₀ → ⁷F₀) occurs because of the unique structural features of the orthorhombic polymorph of SSO.^1,9 In the atomic structure of SSO, as shown in Fig. 1a,b, the Si atoms in the SiO₄ tetrahedra form a parallel chain. The Sr₁ sites form more symmetric linear chains of Si–O–Sr₁–O–Sr₂, but the Sr₂ sites form less symmetric zig-zag chains of Sr₁–O–Sr₂–O–Sr₁ along the b-axis.^1,3 In the present case, the ⁵D₀ → ⁷F₀ transition (~ 575 nm) is completely absent, suggesting that the Eu³⁺ activators have rather asymmetric environments in the SSO:xEu³⁺ phosphors. Notably, the total PL intensity in Fig. 2a is proportional to the ratio of α′-SSO/β-SSO phases, as presented in Table 1. Based on the above discussion, the enhanced PL emission is associated with not only the α′-SSO/β-SSO phase ratio (or the degree of symmetry of Eu³⁺ activators) but also the effect on the CT band of the Eu–O associations in the SSO:xEu³⁺ phosphors described here.

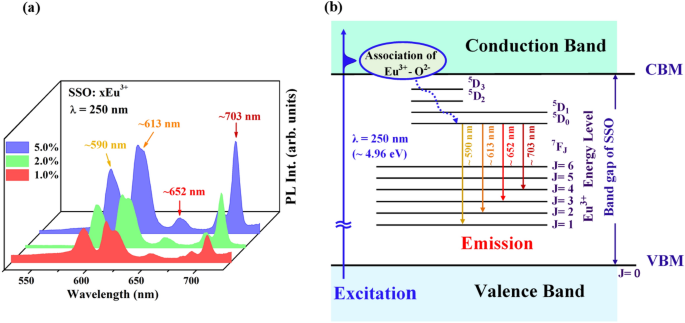

(a) PL spectra of SSO:xEu³⁺ phosphors with sharp lines centered at ~ 590, 613, 652 and 703 nm. (b) Energy level scheme of the Eu³⁺-activator and a sketch of the excitation of electrons from VB/VBM to CB/CBM upon excitation by UV light (λ = 250 nm, ~ 4.96 eV) with energies that exceed the energy gap in the SSO:xEu³⁺ phosphors. The process also involves transfer of electrons from the Eu³⁺–O²⁻ associations to the ⁵D₀ level (dashed line), corresponding to PL spectra of the ⁵D₀ → ⁷F_J transitions (J = 1, 2, 3 and 4), as observed in (a).

Full size image

The PL of selected rare-earth ions that are doped into host matrices is well known to be able to be used as a spectral probe of crystal structure, which is closely related to the crystal field of the activators and is determined by the valence-band maximum (VBM) and conduction-band minimum (CBM) of the matrix, as well as the partial electronic density of states (DOSs) of the luminescent centers and intrinsic/extrinsic defects, which function as trap centers in the matrix.⁹ The Eu³⁺ ion has six electrons in the 4f shell, which is not an entirely filled f orbital. Figure 2b presents a typical energy diagram of Eu 4f–4f electronic transitions, and the Eu³⁺ activators usually comprise emission features in the red spectral region, where the emission transition is caused by the crystal field splitting of the ⁷F_J levels. In addition to these emission features, emissions from higher ⁵D levels, viz. ⁵D₁ (green), ⁵D₂ (blue) and even ⁵D₃, are commonly observed. However, their presence or absence depends principally on the host lattice.⁹ Nevertheless, in this study of the origin of the Eu³⁺ luminescence of SSO:xEu³⁺ phosphors, the emission features mostly correspond to transitions from the excited ⁵D₀ level to the ⁷F_J levels in the Eu 4f⁶ configuration and are affected strongly by the CT band and/or the local electronic/atomic structures of the Eu³⁺ ions in the formation of the Eu³⁺–O²⁻ associations and the host lattice. Principally, the PL is a three-step process: (1) absorption of a UV photon, (2) transfer of the excitation energy (or electrons) to the luminescent centers, and (3) radiative emission from the luminescent centers. To illustrate the effects of the luminescent centers of Eu³⁺ activators that are involved in the correlation between the CT band and the Eu³⁺–O²⁻ associations and of the bandgap of the host lattice on the absorption/excitation and emission processes, Fig. 2b schematically depicts the excitation of electrons from the valence band (VB) to the conduction band (CB) of the host matrix upon excitation by UV light (λ = 250 nm, ~ 4.96 eV); the excitation by UV light presumably exceeds the energy gap (the energy separation between the VBM and the CBM), E_g, of the SSO:xEu³⁺ phosphors because the bandgap of the α′-phase/β-phase SSO is close to 4.49/4.11 eV¹⁹, and that of the mixed α′- and β-phases of SSO is close to 4.12 eV³², yielding free electrons and holes in the CB and VB, respectively. This process also involves the relative energy levels of Eu³⁺–O²⁻ associations, since the valence electrons of the activators/Eu³⁺–O²⁻ associations can also be excited directly by UV or by energy that is transferred from the host lattice, so the overall excited free electrons above/near the CBM thermally cross and relax non-radiatively (as indicated by the dashed line), being transferred to the lower excited state of ⁵D₀. This process is followed by de-excitation to the ground states via radiative electronic transitions, corresponding to the PL from the ⁵D₀ → ⁷F_J transitions (J = 1, 2, 3 and 4), which are yellow (~ 590 nm), orange (~ 613 nm) and red (~ 652 nm and 703 nm), respectively, as observed in Fig. 2a. Understandably, the position of the PL spectral features does not change significantly with the Eu³⁺ doping concentration, but their overall intensity increases. The enhancement of PL is related to the transfer of electrons from the CT band, which is related to the Eu³⁺–O²⁻ associations. Hypothetically, the Eu³⁺–O²⁻ associations provide extra electrons that are transferred from Eu³⁺–O²⁻ states with free electrons as a result of excitation from VB, resulting in nonradiative transfer to lower ⁵D₀ levels.

Figure 3a displays the normalized Sr K-edge XANES spectra of SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%) and the reference SSO obtained in bulk-sensitive transmission mode. The inset shows magnification of the near-edge features from ~ 16,080 to 16,140 eV after subtraction of the Gaussian background from the main near-edge feature, as represented by the dashed line in Fig. 3a. By the dipole-transition selection law, the main absorption near-edge feature of SSO:xEu³⁺ phosphors at the Sr K-edge represents the transition of electrons from Sr 1 s to 5p unoccupied states and is slightly more (x = 1.0 and 5.0%) or less (x = 2.0%) intense than that of the reference SSO, suggesting no significant change in the electronic unoccupied Sr 5p states of Eu-doped SSO:xEu³⁺ phosphors relative to that of SSO. Figure 3b shows the magnitudes of the Fourier transformed (FT) Sr K-edge EXAFS of the SSO:xEu³⁺ phosphors and SSO. The upper inset shows the corresponding k³-weighted k³χ oscillating spectra. The selected k-range for the FT spectra was ~ 2.9–10.7 Å⁻¹. To provide more comprehensive insight into the local atomic structures at the Sr₁ and Sr₂ sites as the Eu concentration in the SSO:xEu³⁺ phosphors increases, the nearest-neighbor (NN) coordination number (N₁/N₂), Sr₁–O/Sr₂–O bond length (R₁/R₂), and mean square fluctuation of the Debye–Waller factor (DWF, σ₁²/σ₂²) at the Sr₁/Sr₂ sites were obtained by fitting Sr K-edge EXAFS spectra. All spectra were analyzed by standard procedures using the Athena program package^33,34 to extract quantitative local information about the local atomic structures at the Sr₁/Sr₂ sites in the SSO:xEu³⁺ phosphors and SSO. Table 3 presents the fitting results for the first shell (mixing NN Sr₁–O and Sr₂–O bond lengths) of the SSO:xEu³⁺ phosphors and SSO. The results of the analysis in Table 3 clearly indicate that the local atomic structures (N₁/N₂, R₁/R₂ and σ₁²/σ₂²) at the Sr₁/Sr₂ sites in the matrix with various Eu³⁺ doping concentrations remain nearly unchanged, revealing that the SSO:xEu³⁺ phosphors easily tolerate Eu incorporation without significant distortion of the host lattice. Clearly, the coordination number of N₁/N₂, the NN Sr₁–O/Sr₂–O bond length and the corresponding DWF σ₁²/σ₂² in the SSO:xEu³⁺ phosphors and SSO are also very similar, although the former have slightly longer bond lengths and a smaller DWF than the latter [the slight shift in the magnified scale of the over plotting first main FT features is easily observed in the lower inset of Fig. 3b]. With reference to Fig. 3a, b, the similarity of the general line shapes in the XANES/the first main FT spectral feature at the Sr K-edge of the SSO:xEu³⁺ phosphors relative to those of the SSO host reveals that Eu³⁺-doping in the SSO:xEu³⁺ phosphors does not significantly distort the local electronic and atomic structures at the Sr sites in the matrix. Since Eu³⁺ does not replace the Sr site and exists in the host lattice, the host lattice provides space to accommodate Eu³⁺ ions in the SSO:xEu³⁺ matrix. Importantly, these results suggest that the Eu³⁺ activators may not substitute at both/either the Sr₁ and/or the Sr₂ sites, so the CT band of O²⁻ → Eu³⁺ does not initially undergo electron transfer by polyhedral SrO₁₀/SrO₉ (Sr₁–O/Sr₂–O → Eu) in the SSO:xEu³⁺ phosphors^1,3,16. Furthermore, as shown in the lower inset of Fig. 3b, the intensities of the first main feature (NN Sr–O bond length) in the FT spectra of the SSO:xEu³⁺ phosphors overall exceed that of the SSO, primarily because the former contains fewer defects/oxygen vacancies, resulting in less structural disorder and/or DWF than in the SSO host matrix.³⁵ This phenomenon follows from the fact that the NN Sr–O shell around Sr sites in the SSO: xEu³⁺ phosphors has fewer defects/oxygen vacancies, so the DWF is smaller than that of SSO (Table 3). As stated above, the defects or oxygen vacancies that act as trap centers are primarily attributed to the presence of the luminescent activators^13,14,15, but as shown in the lower inset in Fig. 3b, the maximum intensity of the feature associated with the NN Sr–O bond length in the FT spectra of the SSO:xEu³⁺ phosphors is slightly greater than that of SSO. Apparently, the Sr K-edge EXAFS studies do not support the claim that defects or oxygen vacancies are formed by doping with luminescent Eu activators, which critically determine the PL property in SSO:xEu³⁺ phosphors^13,14,15.

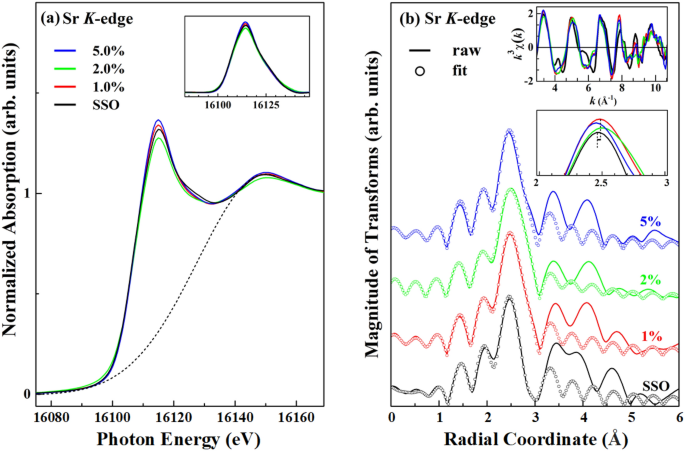

(a) Normalized Sr K-edge XANES spectra of SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%) and reference SSO. The inset shows a magnification of the near-edge feature from 16,080 to 16,140 eV after subtracting the Gaussian background from the near-edge feature. (b) FT of EXAFS in R-space of SSO:xEu³⁺ phosphors and SSO. The solid profile was obtained from raw data, whereas the circular marks represent the best fit for the first coordination shell. The upper and lower insets present Sr K-edge EXAFS k³χ data and magnifications of the first main FT spectra of SSO:xEu³⁺ phosphors and SSO, respectively.

Full size image

Figure 4a displays XANES spectra at the Eu L₃-edge of the SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%) and Eu₂O₃, obtained in total fluorescence yield mode. The upper inset shows the magnification of the near-edge feature from ~ 6,960 to 7,000 eV following subtraction of the arctan background from the near-edge feature, as indicated by the dashed line in Fig. 4a. Clearly, the XANES spectra of SSO:xEu³⁺ phosphors yield a sharp line-shaped feature at the Eu L₃-edge, which is almost identical to but much stronger than that of pure Eu₂O₃, demonstrating the formation of Eu₂O₃-like structures rather than Eu substitution at Sr sites in the SSO:xEu³⁺ phosphors reported elsewhere^{16,17,18,19,36,37}. For confirmation of the interstitial Eu₂O₃-like structures in the SSO:xEu³⁺ matrix, we conducted HRTEM measurements and observed the cubic Eu₂O₃ phase with the presence of d-spacing (222) in the SSO:xEu³⁺ (x = 5.0%) matrix, as presented in the lower inset of Fig. 4a, further supports the result of the Eu L₃-edge XANES spectra of the SSO:xEu³⁺ phosphors. Nevertheless, previous studies have established according to the dipole-transition selection law that the two resolvable main features of Eu L₃-edge XANES at ~ 6,975 and 6,983 eV are attributable to the 2p_3/2 → 5d electron transitions of Eu²⁺ and Eu³⁺ ions, respectively, in aqueous solution³⁸ and in milled SrAl₂O₄:Eu³⁹. Evidently, as shown in Fig. 4a, the single sharp and strong feature at ~ 6,982 eV corresponds to the transition of electrons from the 2p_3/2 to 5d unoccupied states of Eu³⁺ ions in the SSO:xEu³⁺ phosphors, and this feature is much more intense than that in Eu₂O₃, particularly at the highest Eu concentration (x = 5.0%) in the SSO:xEu³⁺ phosphors. The strong intensity of the near-edge feature (many more unoccupied Eu 5d states) is caused by the transfer of electrons from the Eu 5d orbitals in the Eu₂O₃-like structures (or Eu³⁺–O²⁻ associations) to ⁵D₀ levels in the SSO:xEu³⁺ phosphors, consistent with the model presented in Fig. 2b. The integrated intensity of the Eu L₃ near-edge feature of the SSO:xEu³⁺ phosphors was obtained from the area in the range of 6,960 to 7,000 eV, as shown in the upper inset of Fig. 4a. Importantly, the integrated intensity of the Eu L₃ near-edge feature (19.32 → 19.52 → 20.19) varies in proportion to the Eu-doping concentration in a manner similar to the variation with the PL intensity ratio, I_rat = I_EDT/I_MDT (1.29 → 1.57 → 1.61), as discussed above. A higher Eu³⁺ activator content yields more Eu₂O₃-like structures in the SSO:xEu³⁺ phosphors and thereby more hypersensitive EDT, thus facilitating the transfer of electrons from Eu³⁺ 5d states to the ⁵D₀ level and yielding higher PL emissions in the SSO: xEu³⁺ phosphors, as obtained/proposed in Fig. 2a,b.

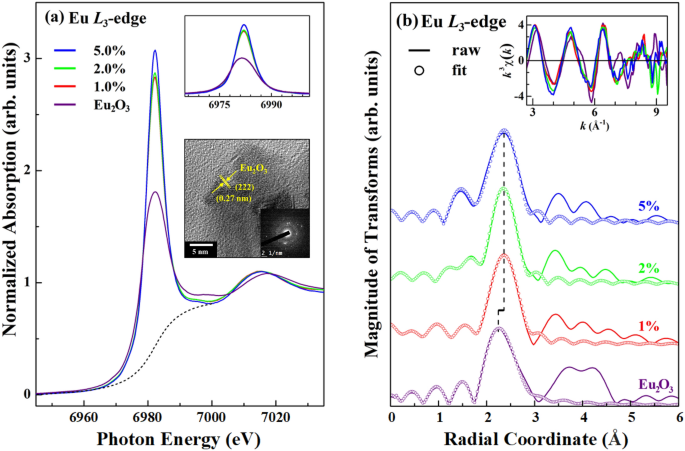

(a) Normalized Eu L₃-edge XANES spectra of SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%) and reference Eu₂O₃. The upper inset shows a magnification of the near-edge features from ~ 6,960 to 7,000 eV after subtracting the arctan background from the main near-edge feature. The lower inset shows the HRTEM image of the cubic Eu₂O₃ phase with the presence of d-spacing (222) in the SSO:xEu³⁺ (x = 5.0%) matrix, and its inset shows the corresponding selective area electron diffraction pattern. (b) FT spectra of k³χ data of SSO:xEu³⁺ phosphors at the Eu L₃-edge from k = 2.7 to 9.5 Å⁻¹. The solid profile was obtained from raw data, whereas the circular marks represent the best fit for the first coordination shell. The inset presents Eu L₃-edge EXAFS k³χ data of the SSO:xEu³⁺ phosphors and Eu₂O₃.

Full size image

To conclusively elucidate the formation by Eu³⁺ ions of interstitial Eu₂O₃-like structures, rather than the substitution of these ions at Sr sites in the SSO:xEu³⁺ phosphors, Fig. 4b shows the FT spectra of k³χ data of the SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%) and Eu₂O₃ from k = 2.7 to 9.5 Å⁻¹ at the Eu L₃-edge. The inset presents the Eu L₃-edge EXAFS k³χ data for the SSO:xEu³⁺ phosphors and Eu₂O₃. The feature in the FT spectra at ~ 2.4 Å corresponds to the NN Eu–O bond length, and the second main feature at ~ 3.2–3.3 Å corresponds to the Eu–Eu bond length. The first (second) main FT feature of SSO:xEu³⁺ reflects a slightly longer (shorter) Eu–O (Eu–Eu) bond length in the SSO:xEu³⁺ phosphors than in Eu₂O₃. The general FT spectra at the Eu L₃-edge of SSO:xEu³⁺ phosphors and Eu₂O₃ exhibit similar line shapes of FT features in Fig. 4b, confirming that the local atomic structures of Eu³⁺ ions in the SSO:xEu³⁺ phosphors are comparable to that of the cubic phase of Eu₂O₃. To quantitatively elucidate the local atomic structures around Eu³⁺ ions in SSO:xEu³⁺ phosphors and Eu₂O₃, the fitting results concerning the NN coordination number (N), Eu–O bond length (R) and corresponding DWF (σ²) were also obtained using the Athena program package^33,34 and are presented in Table 4. Although the amount of Eu₂O₃-like structures in the host matrix is very small and not detectable by long-range sensitive XRD measurements, as presented in Fig. 1c, they were indeed incorporated as interstitial Eu₂O₃-like structures in the host matrix, as revealed by the short-range sensitive XANES, EXAFS and HRTEM techniques, as shown in Fig. 4a,b, respectively. Notably, the general XANES line-shapes/FT spectral features at the Eu L₃-edge in Fig. 4a,b and the results concerning the local atomic structures (N, R and σ²) in Table 4 clearly differ from the Sr K-edge XANES line-shapes/FT spectral features in Fig. 3a,b and Table 3, conclusively revealing that the Eu³⁺ ions formed Eu₂O₃-like structures in the host matrix. No evidence supports substitution of the Eu³⁺ ions for the Sr²⁺ ions at the Sr₁ and/or Sr₂ sites in the SSO:xEu³⁺ phosphors^{16,17,18,19,36,37}. Ultimately, the covalent bond energy of Eu–O (2.95 eV) exceeds that of Sr–O (2.66 eV),¹⁸ implying that Eu forms much stronger bonds with neighboring O atoms than does Sr, so Eu₂O₃-like interstitial structures are formed preferentially in the SSO:xEu³⁺ matrix.

As discussed above, when the phosphor is excited by a suitable wavelength/energy, it can exhibit high PL intensity with desirable emission chromaticity, which is strongly related to the electronic structures between the luminescent activators and the host matrix. To reveal the role of the Eu³⁺-activator in SSO:xEu³⁺ phosphors, Fig. 5 shows the normalized O K-edge XANES and K_α XES spectra there of (x = 1.0, 2.0 and 5.0%) and references SSO and Eu₂O₃. These spectra show the correlations among PL, DOSs near the VBM/CBM and the bandgap of the SSO:xEu³⁺ phosphors, as well as the differences between the electronic structures and band gap of the SSO:xEu³⁺ phosphors from those of the SSO host lattice. As displayed in Fig. 5, based on the first-principles calculations by Pan et al.¹⁹, the DOSs near/at the CBM (features A₁ and A₂) of SSO mostly involve O 2p and Si 3p states, while the DOSs near/at the VBM (features B₁ and B₂) are dominated by O 2p and Si 3p states; the Sr 4p states at ~ 15 eV are far below the VBM of SSO. The α′ and β phases of SSO generally exhibit similar total and partial DOSs in the lattice. Theoretical calculations based on first principles indicate that Eu₂O₃ can exist as three stable structures (cubic, monoclinic and hexagonal phases) under ambient pressure. The novel correlation property of Eu₂O₃ is strongly related to f-f interactions and highly localized electrons in the 4f states of Eu ions in the compound, generating several metastable electronic configurations that depend on the partial occupation of 4f states.⁴⁰ Systematic studies of electronic band structures using the GW with the Hubbard U corrected local-density approximation have shown that the electronic structures of Eu₂O₃ in its three phases are similar, but the positions of occupied/unoccupied Eu 4f and 5d states near the VBM/CBM of Eu₂O₃ vary among the phases because the Eu 4f/5d states have different orbital symmetries.⁴⁰ Nonetheless, as shown in Fig. 5, the O K-edge XANES absorption features (between features A₁ and A₂) of Eu₂O₃ at ~ 531.8 and 533.5 eV are attributed to unoccupied O 2p–Eu 4f and O 2p–Eu 5d hybridized states, respectively, above/at the CBM. The Eu 4f and 5d states strongly overlap with each other, and the Eu 4f state is below the energy level of the 5d states. The O K_α XES features (between features B₁ and B₂) at ~ 526.5 and 524.8 eV are attributed to occupied O 2p–Eu 4f hybridized states, and the B₁ feature is predominately occupied by Eu 4f states below/at the VBM of Eu₂O₃^40,41. The A₂ and B₂ features of Eu₂O₃ appear to be shifted to higher energy than those of SSO:xEu³⁺ phosphors and SSO, as clearly indicated by the dashed line shown in Fig. 5. The general line shapes of the emission and absorption features, especially of the A₁ and A₂ absorption features in the SSO:xEu³⁺ phosphors, differ from those of the SSO host due to the incorporation of Eu₂O₃-like structures in the host matrix. Clearly, the two main absorption features, A₁ and A₂, of the SSO:xEu³⁺ phosphors herein are associated with the O 2p, Si 3p and O 2p–Eu 4f/5d hybridized states, whereas the B₁ and B₂ emission features are primarily associated with occupied O 2p, Si 3p and O 2p–Eu 4f hybridized states. The inset in Fig. 5 represents a well-defined bandgap of E_g by the solid lines that are obtained by extrapolating the leading edges in the O K-edge XANES and O K_α XES spectra to the baselines,^42,43 corresponding to the positions of the CBM and the VBM of SSO:xEu³⁺ phosphors, SSO and Eu₂O₃, respectively. In the inset, the maximum intensity of the A₂/B₂ feature of XANES/XES is normalized to unity. The energy separation between the CBM and the VBM yields E_g values of ~ 3.7 ± 0.2, 4.1 ± 0.2 and 4.9 ± 0.2 eV for SSO:xEu³⁺ phosphors, SSO and Eu₂O₃, respectively. The values of E_g for the SSO (~ 4.1 eV) and Eu₂O₃ (~ 4.9 eV) references are reasonably comparable with the following values in the literature mentioned above: ~ 4.49/4.11 eV for corresponding α′-phase/β-phase SSO¹⁹, ~ 4.12 eV for the mixed α′- and β-phases of SSO³² and 4.4 eV for Eu₂O₃⁴⁴. However, the combination of O K-edge XANES and K_α XES spectra demonstrated that the value of E_g for the SSO:xEu³⁺ phosphors remained almost constant with Eu doping, but it was smaller (~ 3.7 eV) than that of SSO (~ 4.1 eV), indicating that the O 2p–Eu 4f/5d hybridized states of Eu₂O₃-like structures in the SSO:xEu³⁺ phosphors contribute considerably to the DOSs within the bandgap (or near/at the CBM and the VBM, respectively) of SSO. Notably, the threshold feature A₁ in the O K-edge XANES shifted slightly toward lower energies, while the threshold feature B₁ in the O K_α XES spectra remained fairly unchanged upon doping with Eu; accordingly, the unoccupied O 2p–Eu 4f/5d (occupied O 2p–Eu 4f) hybridized states are significantly distributed near/at the CBM (VBM), decreasing the bandgap of SSO:xEu³⁺ phosphors of ~ 3.7 eV, which is lower than that of the SSO host matrix (~ 4.1 eV), as clearly observed in the magnified scale in the inset of Fig. 5.

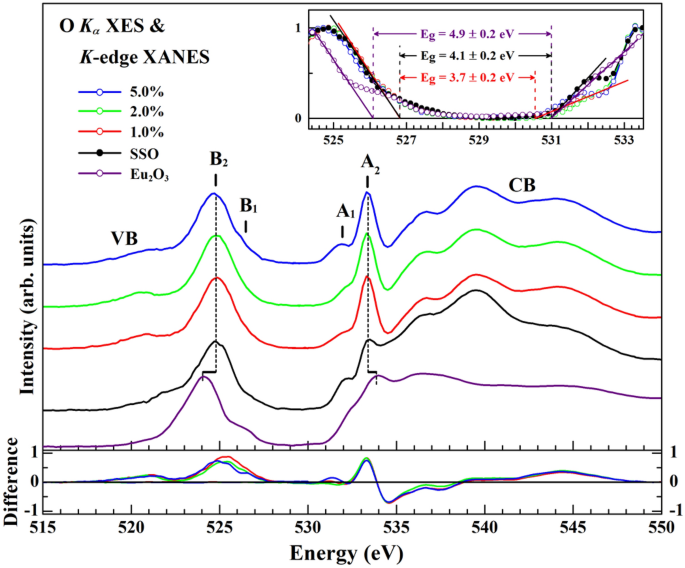

Normalized O K-edge XANES and K_α XES spectra of SSO:xEu³⁺ phosphors (x = 1.0, 2.0 and 5.0%), SSO and Eu₂O₃. The inset shows the CBM and VBM, as indicated by the solid lines and obtained by extrapolating the leading edges in the XANES and XES spectra to the baseline (guided by eye). The lower panel shows the different spectra of O K-edge XANES and K_α XES between SSO:xEu³⁺ phosphors and SSO.

Full size image

To reveal the enhancement of DOSs within the band gap of SSO:xEu³⁺ phosphors that is caused by doping of the SSO host matrix with Eu, the lower panel in Fig. 5 displays the difference between unoccupied/occupied states of the CB/VB of SSO:xEu³⁺ phosphors and those of the SSO. As revealed by the XRD data in Fig. 1c, the minor/impurity SCO phase may also contribute to the O K-edge XANES and K_α XES spectra of the SSO:xEu³⁺ phosphors and the SSO, but its intensity can be treated as an equal quantity, canceling out in the different XANES and XES spectra, as shown in the lower panel. A large difference in the O K-edge XANES and K_α XES spectra around the A₁ (B₁) and A₂ (B₂) features was clearly observed between the spectra near/at the CBM (VBM) of the SSO:xEu³⁺ phosphors and the SSO. The enhanced features near/at the CBM (VBM) in the right (left) lower panel arise from the increased density of the unoccupied O 2p–Eu 4f/5d states (occupied O 2p–Eu 4f states). In particular, the large enhancement of the A₂ feature (O 2p–Eu 5d states) reveals an increase in the DOSs in the bandgap of SSO:xEu³⁺ phosphors upon doping with Eu. The electron excitation from the VB to the CB by excitation by UV light (λ = 250 nm, ~ 4.96 eV) exceeds the energy gap E_g (~ 3.7 eV) of SSO:xEu³⁺ phosphors, yielding extra free electrons and holes at the CB and VB, respectively, owing to incorporation of Eu₂O₃-like structures in the host matrix. The increase in the intensities of the features in the O K-edge XANES and K_α XES spectra demonstrate the contribution of O 2p–Eu 4f/5d hybridized states (mostly from unoccupied Eu 5d states at the CB and occupied O 2p–Eu 4f states at the VB, respectively) in the bandgap of the host matrix. As shown in Fig. 2b, the O 2p–Eu 4f/5d (major of Eu 5d states, Eu³⁺–O²⁻ associations) above/at CBM likely act as donor levels for the nonradiative transfer of electrons to ⁵D₀ levels, generating unoccupied states, as consistently observed at the O K-edge and Eu L₃-edge XANES (Figs. 4a, 5), and yielding intra 4f–4f electronic transitions followed by excited ⁵D₀ → ⁷F_J (J = 1, 2, 3 and 4) transitions, which enhance the PL of SSO:xEu³⁺ phosphors upon Eu³⁺-doping. Again, based on the above results, the CT band plays a critical role in the radiative emission of Eu³⁺-activators because Eu₂O₃-like structures formed interstitially in the SSO:xEu³⁺ matrix rather than at polyhedral SrO₁₀/SrO₉ sites in the SSO:xEu³⁺ matrix^1,3,18. Additionally, due to the slightly varied crystal field splitting of Eu activators in the matrix, the PL property of SSO:xEu³⁺ phosphors is caused by the Eu₂O₃-like structures, yielding all of the PL emission features (~ 590, 613, 652 and 703 nm) at slightly higher wavelengths than those of Eu₂O₃ thin films (~ 583, 611, 648 and 694 nm)³¹ and at lower wavelengths than those of Sr_1.9SiO₄:0.1Eu powder (~ 592, 620, 654 and 704 nm)⁴⁵. Since Eu₂O₃-like structures act as interstitial sites in the SSO:xEu³⁺ phosphors, SSO is a host material with a large bandgap and stable lattice, making it a suitable host for accommodating Eu³⁺-activator phosphors.

In conclusion, PL measurements show that the wavelengths of the emission spectra do not significantly vary with Eu³⁺ doping concentration in SSO:xEu³⁺ phosphors. However, the PL intensity increases with increasing Eu³⁺ doping concentration. The PL intensity is associated with the α′-SSO/β-SSO phase weight ratio in the SSO:xEu³⁺ phosphors. At higher Eu³⁺ contents, the luminescence is stronger because more Eu₂O₃-like structures are present in the host matrix, favoring the nonradiative transfer of electrons from Eu 5d states above/at the CBM to the ⁵D₀ level, which observably increases the absorption intensity at Eu L₃-edge XANES spectra of SSO:xEu³⁺ phosphors. Furthermore. The results of the O K-edge XANES and K_α XES spectra clearly demonstrate that the unoccupied O 2p–Eu 4f/5d and occupied O 2p–Eu 4f states within the bandgap (or near/at the CBM and the VBM) of the matrix promote the nonradiative transfer of electrons from the O 2p–Eu 4f/5d hybridized states (mostly Eu 5d states above/at the CBM) to the ⁵D₀ level, facilitating electronic transitions from the excited ⁵D₀ to ⁷F_J (J = 1, 2, 3 and 4) levels. This CT process is primarily responsible for the enhancement of the PL of SSO:xEu³⁺ phosphors with increased Eu³⁺-doping in the matrix. Significantly, this study demonstrates that the Eu activators (or Eu³⁺–O²⁻ associations) interact weakly with the host matrix, which provides sufficient room to accommodate the Eu³⁺ dopants as luminescence centers without substitution at the Sr sites in SSO: xEu³⁺ phosphors.

The SSO:xEu³⁺ phosphors in the α′ phase and the β phase with various Eu³⁺ concentrations (x = 1.0, 2.0 and 5.0%) were synthesized using a sol–gel route at ~ 1,100–1,200 °C with SCO, SiO₂ and Eu₂O₃ as starting materials. In this sol–gel process, stoichiometric ratios of SCO, SiO₂ and Eu₂O₃ were taken in the solvent into an aqueous solution (called sol). The solutions were then hydrolyzed and condensed. The slow aggregation among colloidal particles formed a three-dimensional network structure with a poorly liquid gelatin (called gel). The resulting gel was then dried and sintered at high temperature (~ 1,100–1,200 °C) to form the final powder product of SSO:xEu³⁺. The formed crystal structures were mostly SSO with a tiny amount of SCO phases. The atomic structures of the (orthorhombic) α′ and (monoclinic) β phases of the SSO matrix in Fig. 1a, b were drawn using VESTA software⁴⁶ after considering the SSO raw crystallographic files (https://www.materialsproject.org/). XRD patterns were obtained using Cu K_α (λ = 1.5418 Å) radiation at 40 kV. Energy-dispersive X-ray spectroscopy measurements for elemental mapping analysis showed the presence of Eu, but it is very difficult to obtain an accurate quantitative number for Eu concentrations due to the very low Eu content in each SSO:xEu³⁺ phosphor. Hence, the “Eu-content %” mentioned in the text is the stoichiometric % taken during the synthesis process. The PL spectra were recorded at room temperature within the wavelength range of ~ 200–800 nm on a Hitachi F-4500 fluorescence spectrophotometer equipped with a 150 W Xe lamp, with emission upon excitation at a wavelength of 250 nm (~ 4.96 eV). Eu L₃-, Sr K-edge XANES/EXAFS and O K_α XES spectra were measured at the Taiwan Photon Source (TPS) 44A and 45A-undular beamlines⁴⁷; O K-edge XANES was performed at the Taiwan Light Source (TLS) 20A beamline of the National Synchrotron Radiation Research Center, Taiwan. The O K_α XES spectra were obtained at an excitation energy of 550 eV with a resolution of better than 0.2 eV; the intensity of the XES features in the energy range between ~ 517 and 515 eV was normalized to unity. The O K-edge XANES spectra were obtained in fluorescence yield mode with a resolution greater than 0.1 eV and were normalized to the incident beam intensity following pre-edge background subtraction, with the area under the spectra in the energy range between ~ 550 and 555 eV fixed. The energy resolutions of Eu L₃- and Sr K-edge XANES were set to ~ 0.5 and 1 eV, respectively.
