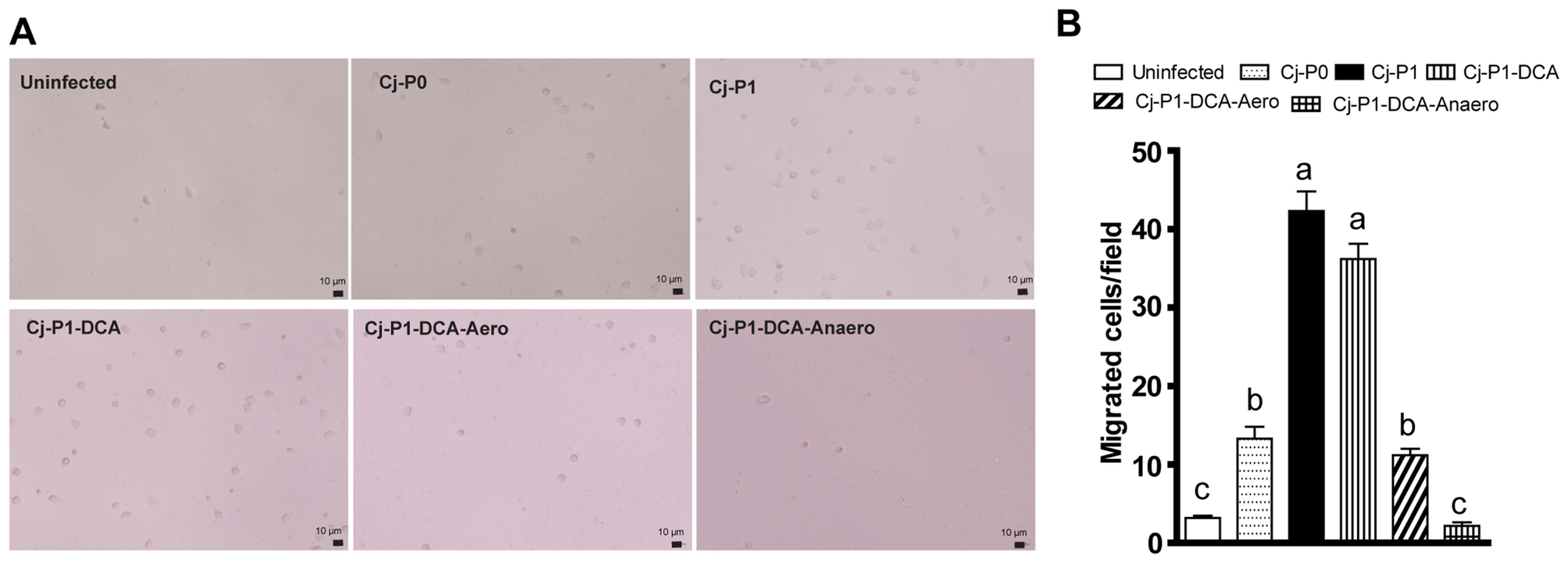

Figure 4
From: Microbiota attenuates chicken transmission-exacerbated campylobacteriosis in Il10−/− mice
Cj-P1 strongly induced immune cell migration compared to Cj-P1-DCA-Anaero. Peripheral white blood cells were isolated and plated in a Transwell system, and the cells’ migration in response to C. jejuni at the bottom well was visualized and enumerated. Cells in six fields per well were counted. (A) Representative light images of white blood cells migrated into bottom wells. Scale bar is 10 μm. (B) Quantitative measurements of migrated white blood cells. Different letter of a-b means p < 0.05. Data represent means ± SEM. Results are representative of 3 independent experiments.
