Figure 6
From: Microbiota attenuates chicken transmission-exacerbated campylobacteriosis in Il10−/− mice

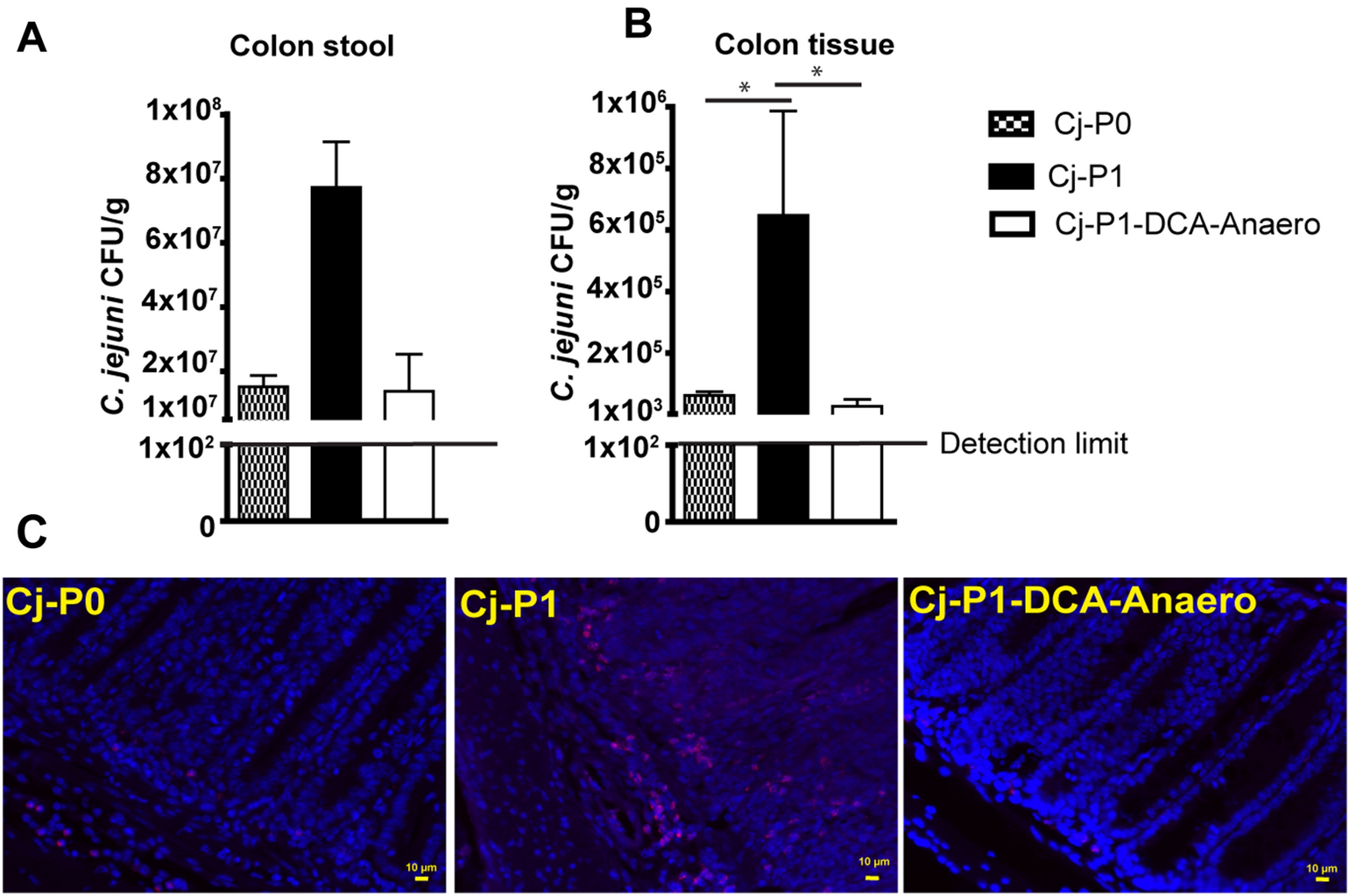

Cj-P1-DCA-Anaero colonized and invaded less compared to Cj-P1. Cohorts of mice were infected as in Fig. 5. Samples from colon content and tissue were collected and aseptically cultured. (A) C. jejuni count in colon content. (B) C. jejuni count in colon tissue. (C) Clustered C. jejuni (red dots) in colonic section of infected mice was detected using FISH. *, P < 0.05. Data represent means ± SEM. Scale bar is 10 μm. Results are representative of 3 independent experiments.
